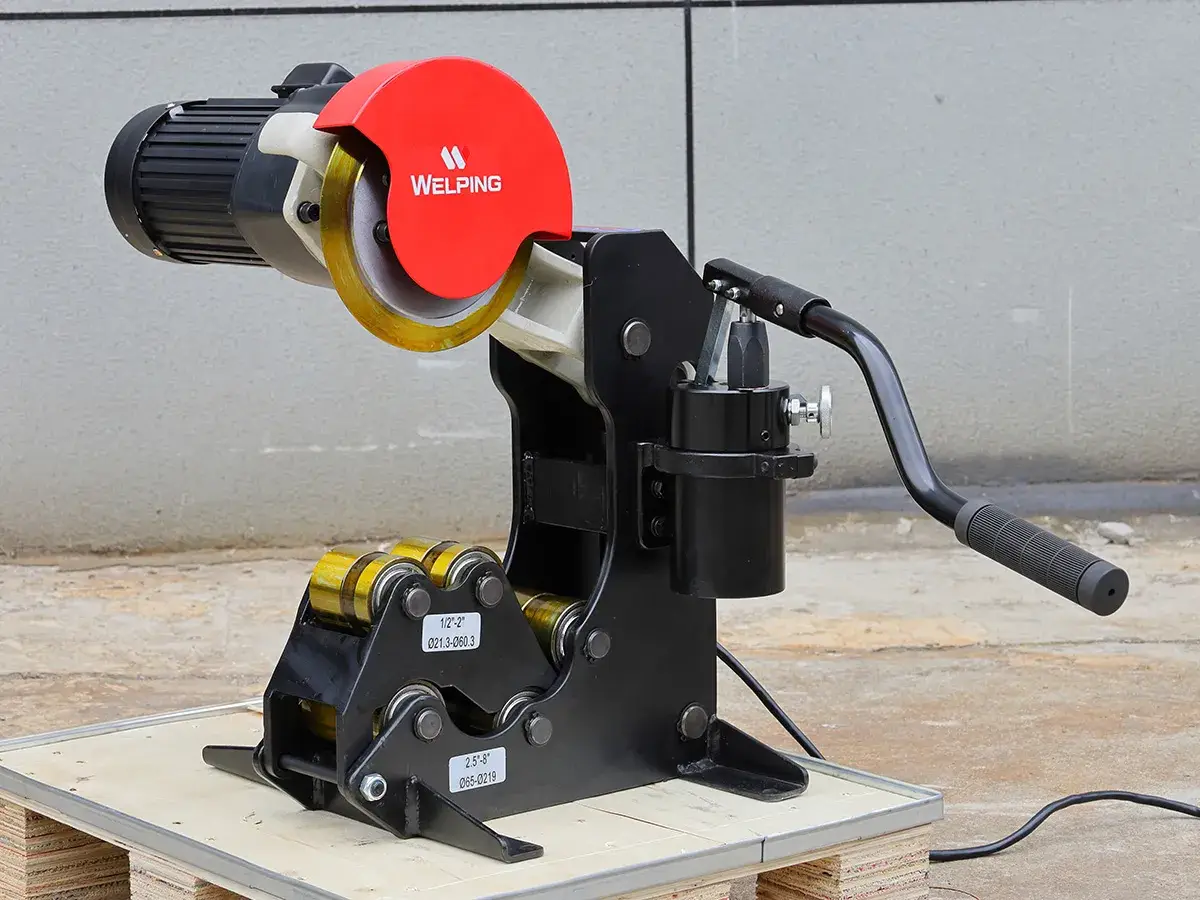

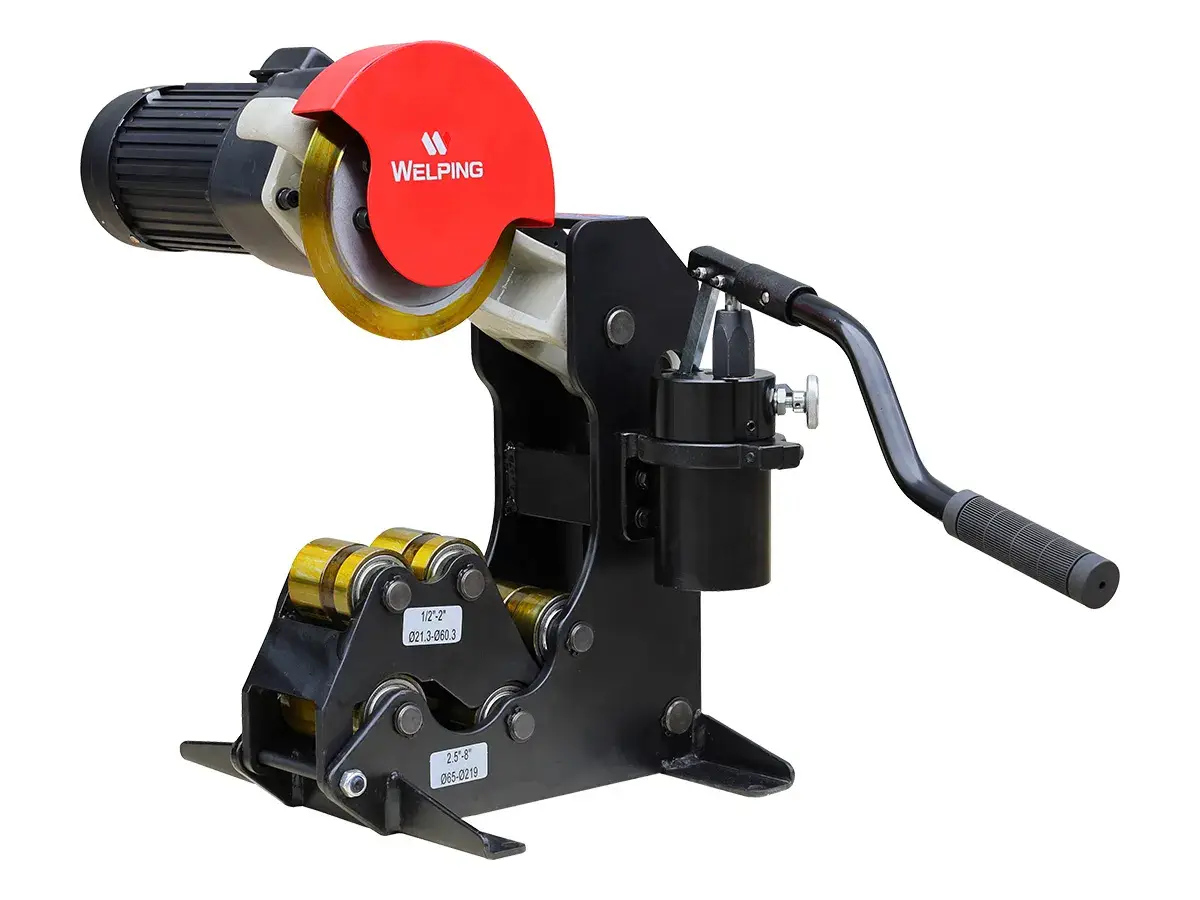

CM-8X 1/2"–8" Hydraulic Pipe Cutting Machine

CM-8X is a 1/2"–8" electric hydraulic pipe cutting machine designed for cold cutting of steel pipes, carbon steel pipes, stainless steel pipes, and ductile iron pipes. It uses a fully enclosed hydraulic system and supports manual hydraulic quick feed for a stable and spark-free cutting operation. It is suitable for construction, fire protection, and pipe prefabrication applications.

  • Capacity 1/2"–8" (O.D. 21.3–219.1 mm)
  • Max. Wall Thickness 6 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe, Ductile Iron Pipe

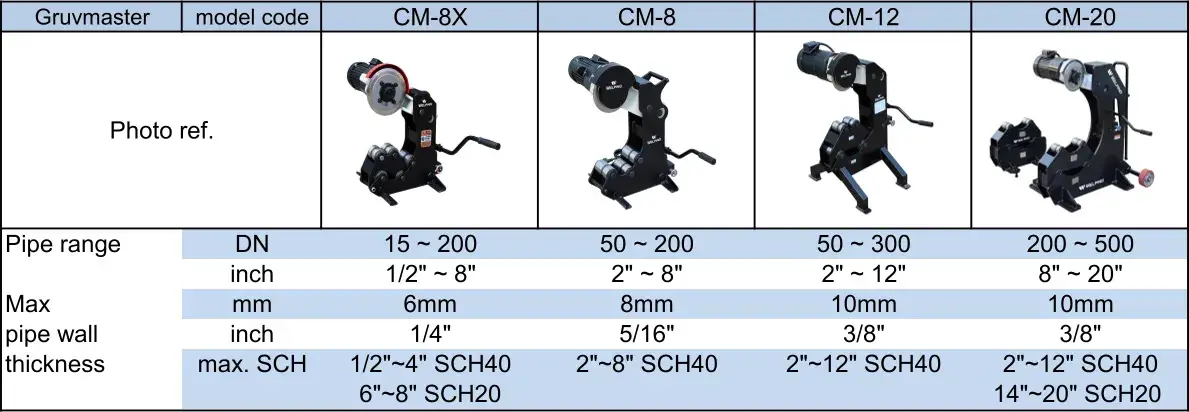

Request a Quote Comparison of Pipe Cutting Machines PDF
Specifications
Model CM-8X
Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe, Ductile Iron Pipe
Capacity 1/2"–8" (O.D. 21.3–219.1 mm)
Motor Power 700 W
Spindle Speed 30 RPM
Power Requirements 110V/220V, 50/60Hz, Single Phase
Max. Wall Thickness 6 mm
Packaging Dimensions (L×W×H) 60 × 47 × 75 cm
Gross Weight 67 kg
Features

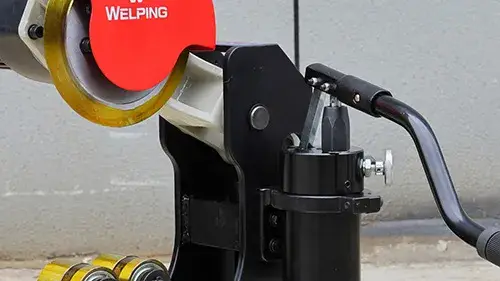

    • Hydraulic System
      Hydraulic System
      • Split oil pump and cylinder design with optimized structure layout for longer service life and stable operation.
      • The sealed hydraulic pump does not require a vent port and supports long-term use without oil replacement.
      • Precision-machined cylinder ensures accurate dimensions, while the hardened piston rod improves durability.

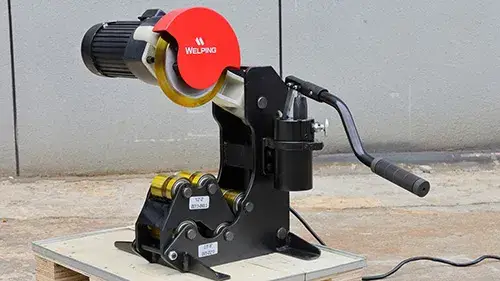

    • Machine Frame
      Machine Frame
      • The frame is fully welded from steel plates for high durability and long-term industrial use.
      • Extended support legs improve machine stability during operation.

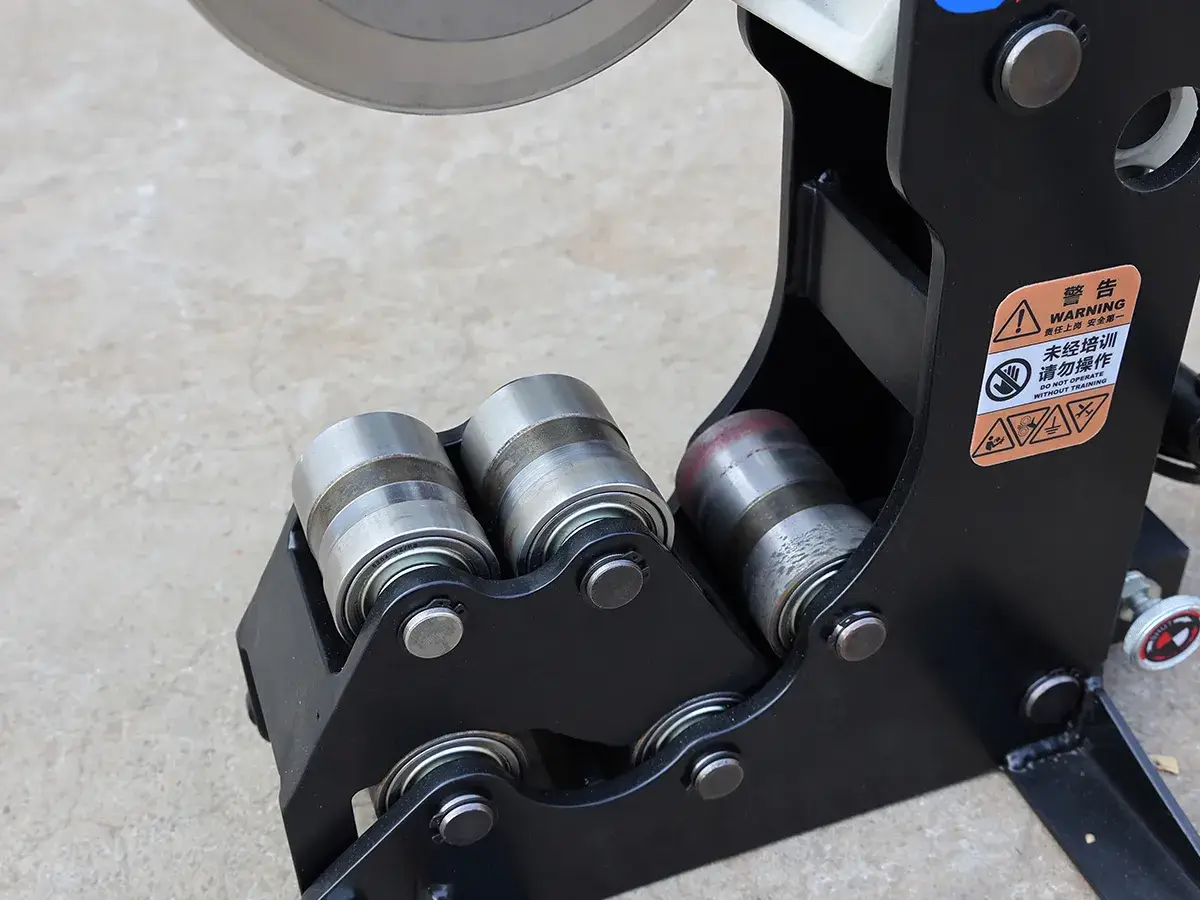

      • Built-in dual pipe roller sets allow quick switching between two working ranges.
      • Custom modification support is available, with capability to process up to 15 mm wall thickness pipes.

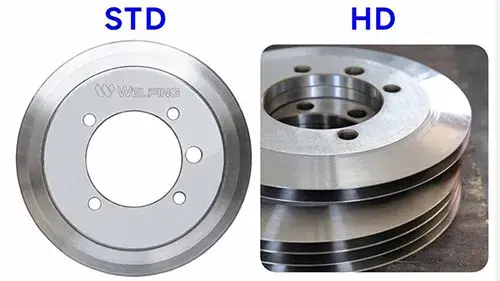

    • Cutting Blade
      Cutting Blade
      • Standard high-strength alloy steel blade supports cutting of medium carbon steel pipes up to 10 mm wall thickness.
      • Optional heavy-duty blade is available for ductile iron pipe cutting.

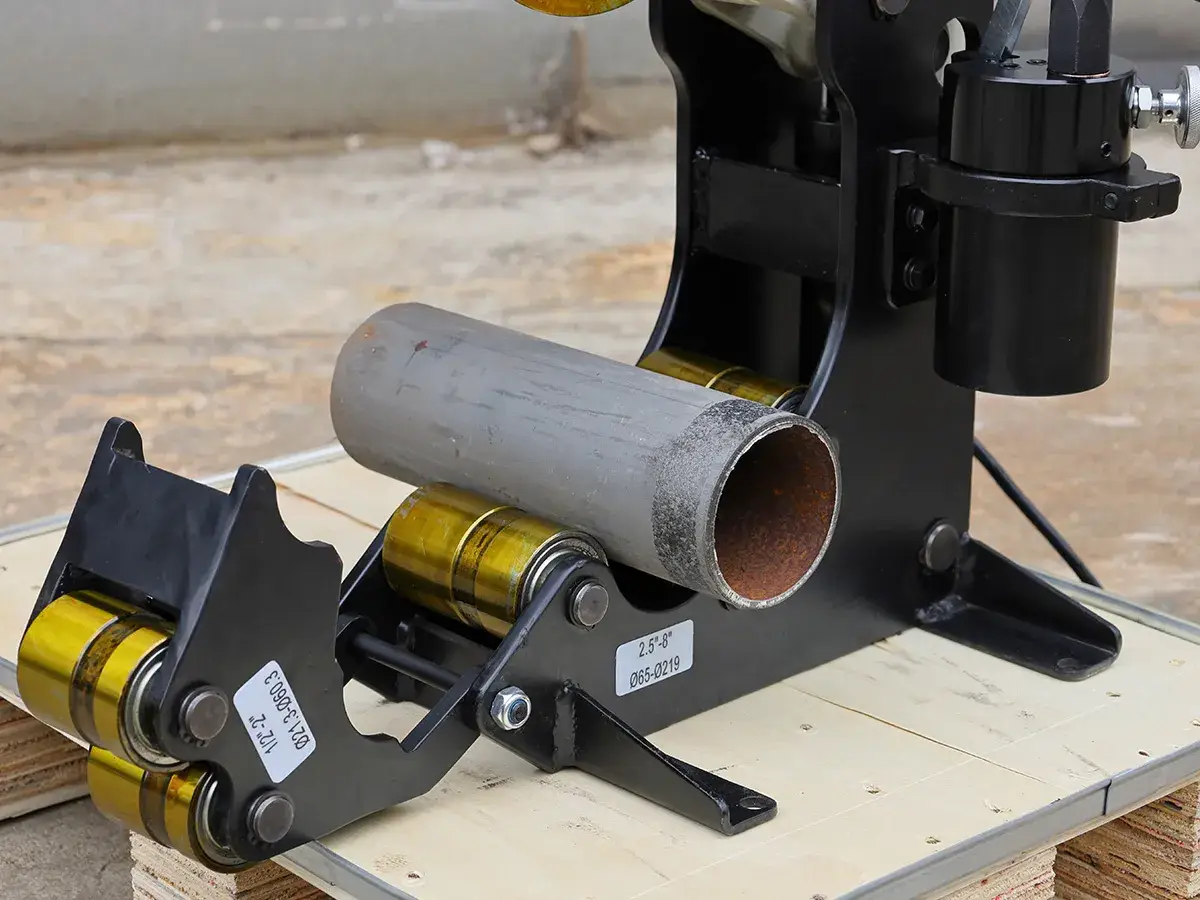

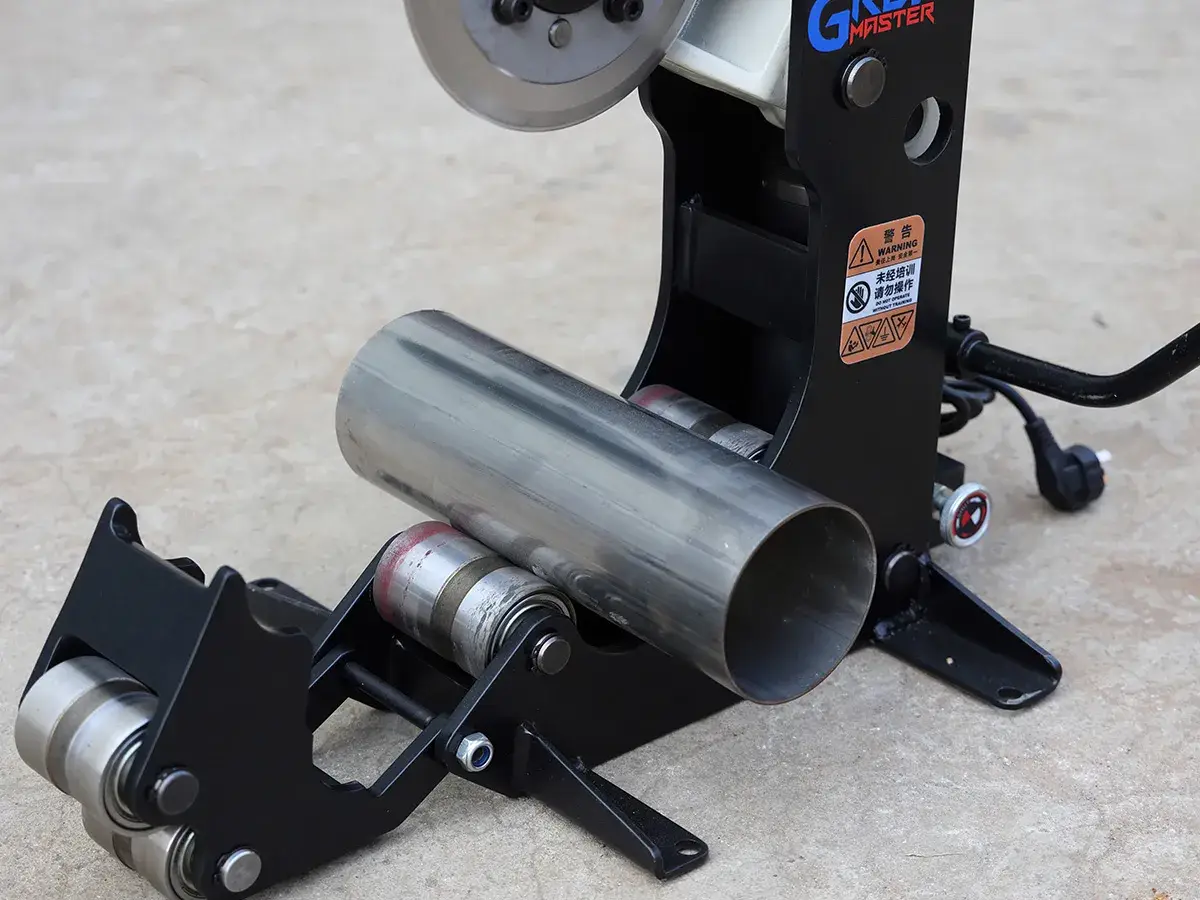

    • Pipe Stand
      Pipe Stand

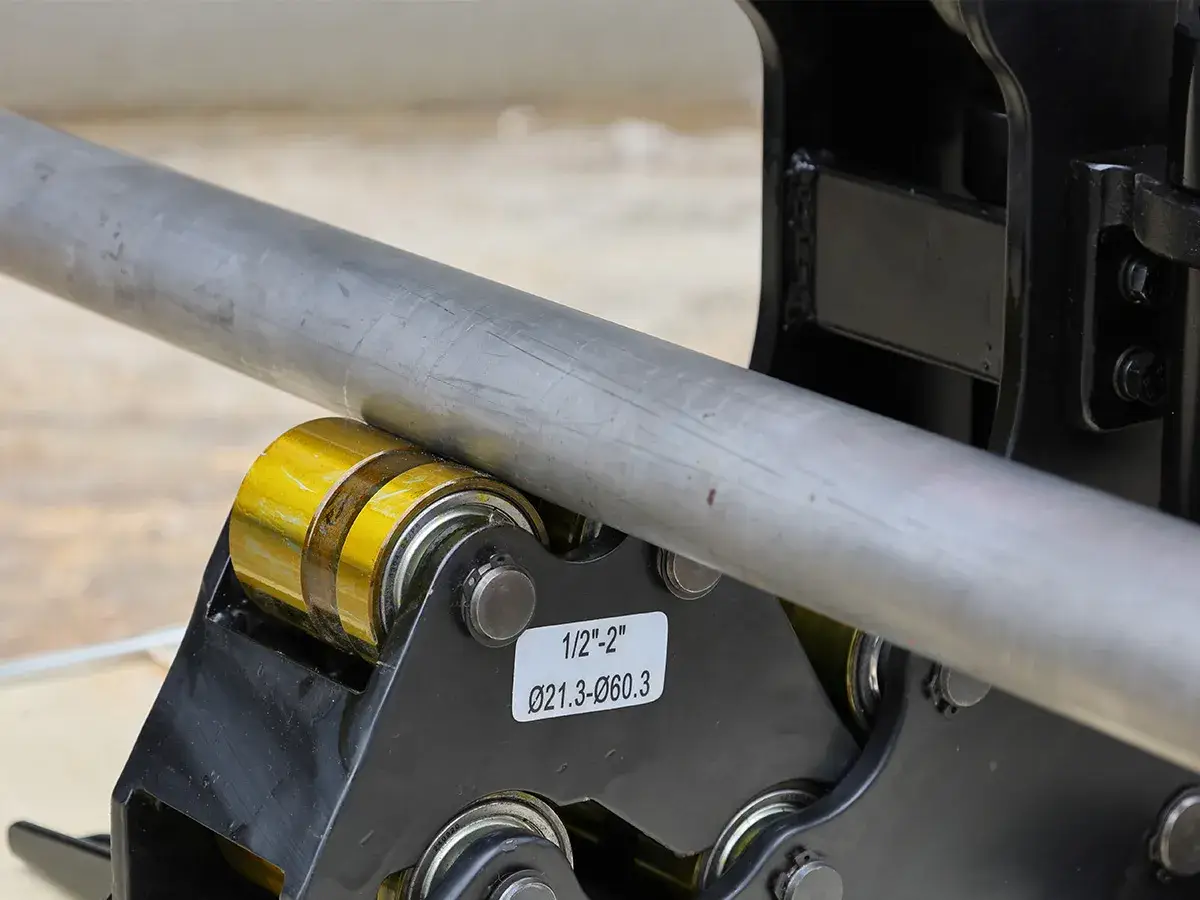

      • Standard support system includes dual roller sets for flexible size adjustment.
      • Height adjustment screw system allows fast leveling and stable pipe positioning during cutting.
More
Standard Equipment
Description Net Weight
Pipe Stand 1/2"–8" (O.D. 21.3–219.1 mm) 6.00 kg
Cutter Wheel 1.25 kg
Optional Equipment
Description Net Weight
Ductile Iron Cutter Wheel 1.25 kg
