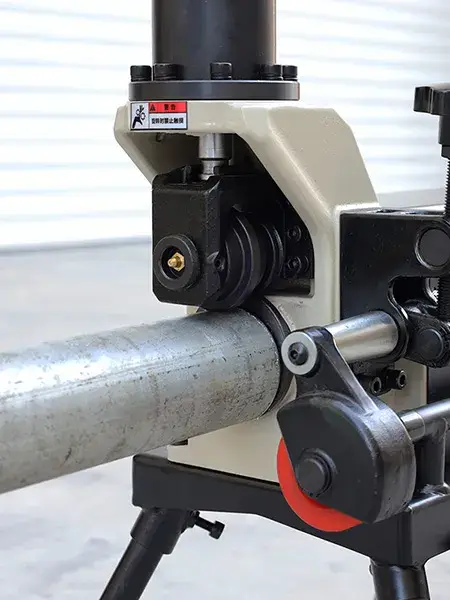

Hydraulic roll groovers are used to form precision grooves on pipe ends for mechanical pipe joining. The grooving process uses hydraulic pressure and specially designed rollers to create accurate grooves on the pipe surface, providing a fast and reliable alternative to welding and threaded connections. These machines are widely used in fire protection systems, HVAC installations, drainage systems, industrial piping, and other applications where efficient pipe installation is required.
Our hydraulic roll groovers process carbon steel and stainless-steel pipes from 3/4" to 32". The product range includes lightweight portable models for on-site work, integrated floor-standing machines for high-volume workshop production, and dual-function models capable of both grooving and forming. The roll grooving machines are suitable for straight pipes, elbows, tees, and other pipe fittings, and can also perform groove end forming for different installation requirements.
To meet different market and project needs, WELPING also provides OEM and ODM services, including machine color customization. Our team supports customers throughout the entire process, from consultation and customization to production and after-sales service.
-
1"–8" Hydraulic Roll Groover RG-1XCapacity 1"–8" (DN25–DN200 / O.D. 33–219 mm) Schedule 10/40Max. Wall Thickness 8 mm -
2"–8" Hydraulic Roll Groover RG-7XCapacity 2"–8" (DN50–DN200 / O.D. 60–219 mm) Schedule 10/40Max. Wall Thickness 8 mm -
2"–8" Hydraulic Roll Grooving Tool RG-3CCapacity 2"–6" (O.D. 60.3–168.3 mm) Schedule 10/40, 8" (O.D. 219.1 mm) Schedule 20Max. Wall Thickness 7.1 mm -
2"–12" Hydraulic Roll Groover RG-2XCapacity 2"–12" Schedule 10/40Max. Wall Thickness 10 mm -
1"–12" Hydraulic Roll Groover RG-2SCapacity 1"–12" Schedule 10/40Max. Wall Thickness 10 mm -
1"–12" Hydraulic Roll Grooving Machine RG-5XCapacity 1"–12" Schedule 10/40, 10"–12" Schedule 10/20Max. Wall Thickness 8 mm -
1"–12" Hydraulic Roll Grooving Tool RG-5ACapacity 1"–8" Schedule 10/40, 10"–12" Schedule 10/20Max. Wall Thickness 8 mm -
1"–12" Hydraulic Roll Grooving Tool, Optional 14"-16" RG-8XCapacity Standard: 1"–12" (O.D. 33–324 mm) Schedule 10/40, Optional: 14"–16"Max. Wall Thickness 12 mm -
2"–16" Hydraulic Roll Groover RG-6XCapacity 2"–12" Schedule 10/40, 14"–16" Schedule 10/20Max. Wall Thickness 10 mm -
8"–24" Hydraulic Roll Groover RG-4XCapacity 8"–16" Schedule 10/40, 18"–24" Schedule 10/20Max. Wall Thickness 13 mm -
8"–24" Hydraulic Roll Groover RG-4X PROCapacity 8"–16" Schedule 10/40, 18"–24" Schedule 10/20Max. Wall Thickness 13 mm -
8"–32" Hydraulic Roll Groover RG-K32Capacity 8"–16" Schedule 10/40, 18"–32" Schedule 10/20Max. Wall Thickness 13 mm -
3/4"–8" Hydraulic Roll Groover RG-2TCapacity Beading: 3/4"–8" (DN20–DN200), Grooving: 2"–6" (DN50–DN150)Max. Wall Thickness 4 mm -
2"–12" Automatic Grooving Machine AG-2XCapacity 2"–12" Schedule 10/40Max. Wall Thickness 10 mm -
8"–24" Automatic Grooving Machine AG-4XCapacity 8"–24"Max. Wall Thickness 13 mm -
2"–12" Automatic Grooving Machine AG-8ZCapacity Standard: 2"–12" (O.D. 60.3–323.9 mm), Optional: 14"–16" (O.D. 355.6–406.4 mm)Max. Wall Thickness 11 mm -
2"–12" Pipe Fitting Roll Grooving Machine, GF-2X GF-2XCapacity 2"–12", SCH 10/40Max. Wall Thickness 10 mm -
2"–12" Pipe Fitting Roll Grooving Machine, GF-4X GF-4XCapacity 2"–24", SCH 10/40Max. Wall Thickness 13 mm -
2"–12" Groove End Reforming Machine GM-2XCapacity 2"–12", SCH 10/40Max. Wall Thickness 10 mm -
2"–24" Groove End Reforming Machine GM-4XCapacity 2"–24", SCH 10/40Max. Wall Thickness 10 mm
