Hydraulic roll groovers are used to form precision grooves on pipe ends for mechanical pipe joining. The grooving process uses hydraulic pressure and specially designed rollers to create accurate grooves on the pipe surface, providing a fast and reliable alternative to welding and threaded connections.
| Model | Sub-level Product | Capacity | Max. Wall Thickness | |
|---|---|---|---|---|
| RG-1X | 1"–8" Hydraulic Roll Groover | 1"–8" (DN25–DN200 / O.D. 33–219 mm) Schedule 10/40 | 8 mm | View |
| RG-7X | 2"–8" Hydraulic Roll Groover | 2"–8" (DN50–DN200 / O.D. 60–219 mm) Schedule 10/40 | 8 mm | View |
| RG-3C | 2"–8" Hydraulic Roll Grooving Tool | 2"–6" (O.D. 60.3–168.3 mm) Schedule 10/40, 8" (O.D. 219.1 mm) Schedule 20 |
7.1 mm | View |
| RG-2X | 2"–12" Hydraulic Roll Groover | 2"–12" Schedule 10/40 | 10 mm | View |
| RG-2S | 1"–12" Hydraulic Roll Groover | 1"–12" Schedule 10/40 | 10 mm | View |
| RG-5X | 1"–12" Hydraulic Roll Grooving Machine | 1"–12" Schedule 10/40, 10"–12" Schedule 10/20 |
8 mm | View |
| RG-5A | 1"–12" Hydraulic Roll Grooving Tool | 1"–8" Schedule 10/40, 0"–12" Schedule 10/20 |
8 mm | View |
| RG-8X | 1"–12" Hydraulic Roll Grooving Tool, Optional 14"-16" | Standard: 1"–12" (O.D. 33–324 mm) Schedule 10/40, Optional: 14"–16" |
12 mm | View |
| RG-6X | 2"–16" Hydraulic Roll Groover | 2"–12" Schedule 10/40, 14"–16" Schedule 10/20 |
10 mm | View |
| RG-4X | 8"–24" Hydraulic Roll Groover | 8"–16" Schedule 10/40, 18"–24" Schedule 10/20 |
13 mm | View |
| RG-4X PRO | 8"–24" Hydraulic Roll Groover | 8"–16" Schedule 10/40, 18"–24" Schedule 10/20 |
13 mm | View |
| RG-K32 | 8"–32" Hydraulic Roll Groover | 8"–16" Schedule 10/40, 18"–32" Schedule 10/20 |
13 mm | View |
| RG-2T | 3/4"–8" Hydraulic Roll Groover | Beading: 3/4"–8" (DN20–DN200), Grooving: 2"–6" (DN50–DN150) |
4 mm | View |
| AG-2X | 2"–12" Automatic Grooving Machine | 2"–12" Schedule 10/40 | 10 mm | View |
| AG-4X | 8"–24" Automatic Grooving Machine | 8"–24" | 13 mm | View |
| AG-8Z | 2"–12" Automatic Grooving Machine | Standard: 2"–12" (O.D. 60.3–323.9 mm), Optional: 14"–16" (O.D. 355.6–406.4 mm) |
11 mm | View |
| GF-2X | 2"–12" Pipe Fitting Roll Grooving Machine | 2"–12", SCH 10/40 | 10 mm | View |
| GF-4X | 2"–24" Pipe Fitting Roll Grooving Machine | 2"–24", SCH 10/40 | 13 mm | View |
| GM-2X | 2"–12" Groove End Reforming Machine | 2"–12", SCH 10/40 | 10 mm | View |
| GM-4X | 2"–24" Groove End Reforming Machine | 2"–24", SCH 10/40 | 10 mm | View |
The manual roll groover is designed for hand-operated grooving or use with a pipe threading machine drive. It can also be used as an attachment for hydraulic roll grooving systems.
| Model | Sub-level Product | Capacity | Max. Wall Thickness | |
|---|---|---|---|---|
| RG-1M | 1"–12" Manual Roll Groover | 1"–12" (DN25–DN300 / O.D. 33.4–323.9 mm) | 8 mm | View |
| RG-2M | 1"–6" Manual Roll Groover | Standard: 1"–6" (DN25–DN150 / O.D. 33.4–168.3 mm), Optional: 8"–12" (O.D. 219.1–323.9 mm) Roll Sets |
7 mm | View |
| RG-3M | 1¼"–6" Manual Roll Groover | 1 ¼"–4" (O.D. 42.2–114.3 mm) SCH 10/40; 5"–6" (O.D. 141.3–168.3 mm) SCH 10/20 |
7 mm | View |
| RG-H1X | 2"–8" Hydraulic Roll Groover Accessory | 2"–4" SCH 10/40; 5"–8" SCH 10/20 |
6 mm | View |
| RG-H2X | 2"–12" Hydraulic Roll Groover Accessory | Standard: 2"–12" SCH 10/40; Optional: 1" Roll Set |
10 mm | View |

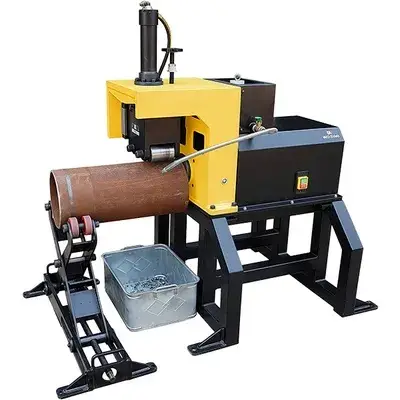

The groove cutting machine is an electric-driven system designed for cutting grooves on medium and large diameter carbon steel and stainless-steel pipes with heavy wall thickness. During operation, it clamps and rotates the pipe at a constant speed.
| Model | Sub-level Product | Capacity | Max. Wall Thickness | |
|---|---|---|---|---|
| CG-2X | 2"–12" Groove Cutting Machine | 2"–12" (O.D. 60.3–323.9 mm) | 35 mm | View |
| CG-4X | 8"–32" Groove Cutter | 8"–32" | 35 mm | View |
The hydraulic pipe cutting machine, by our brand Gruvmaster, is designed for straight, burr-free cutting of thin-wall steel pipes, carbon steel, stainless steel, ductile iron pipes, aluminum pipes, as well as PE and PVC pipes.
| Model | Sub-level Product | Capacity | Max. Wall Thickness | |
|---|---|---|---|---|
| CM-8 | 2"–8" Hydraulic Pipe Cutting Machine | 2"–8" (O.D. 60.3–219.1 mm) | 8 mm | View |
| CM-8X | 1/2"–8" Hydraulic Pipe Cutting Machine | 1/2"–8" (O.D. 21.3–219.1 mm) | 6 mm | View |
| CM-12 | 2"–12" Hydraulic Pipe Cutting Machine | 2"–12", SCH 10/40 | 10 mm | View |
| CM-20 | 8"–20" Hydraulic Pipe Cutting Machine | 8"–20", SCH 10/40 | 12 mm | View |
| PTC140 | 1/2"–5.5" Portable Pipe Cutting Machine | 12–141 mm | 3 mm | View |

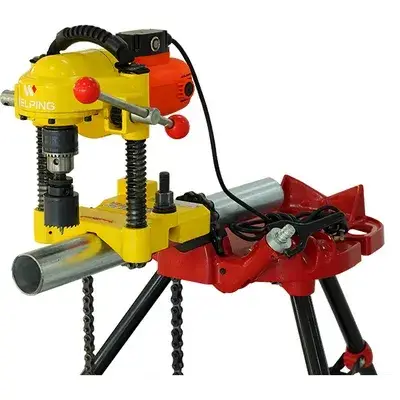

The pipe hole cutting tool from our brand Gruvmaster is designed for drilling holes up to 4 inches on steel pipes, aluminum pipes, PVC pipes, and other materials. Equipped with a 5/8" drill chuck, it supports various hole saw sizes and arbor types for different cutting requirements.
| Model | Sub-level Product | Pipe Cutting Capacity | Pipe Clamping Capacity | |
|---|---|---|---|---|
| HC-1X | 4.5" Pipe Hole Cutting Machine | Up to 4" (O.D. 114.3 mm) | 1 1/4"–8" (O.D. 32–219.1 mm) | View |
| HC-2X | 4.5" Pipe Hole Cutting Machine | Up to 4" (O.D. 114.3 mm) | 1 1/4"–8" (O.D. 32–219.1 mm) | View |
