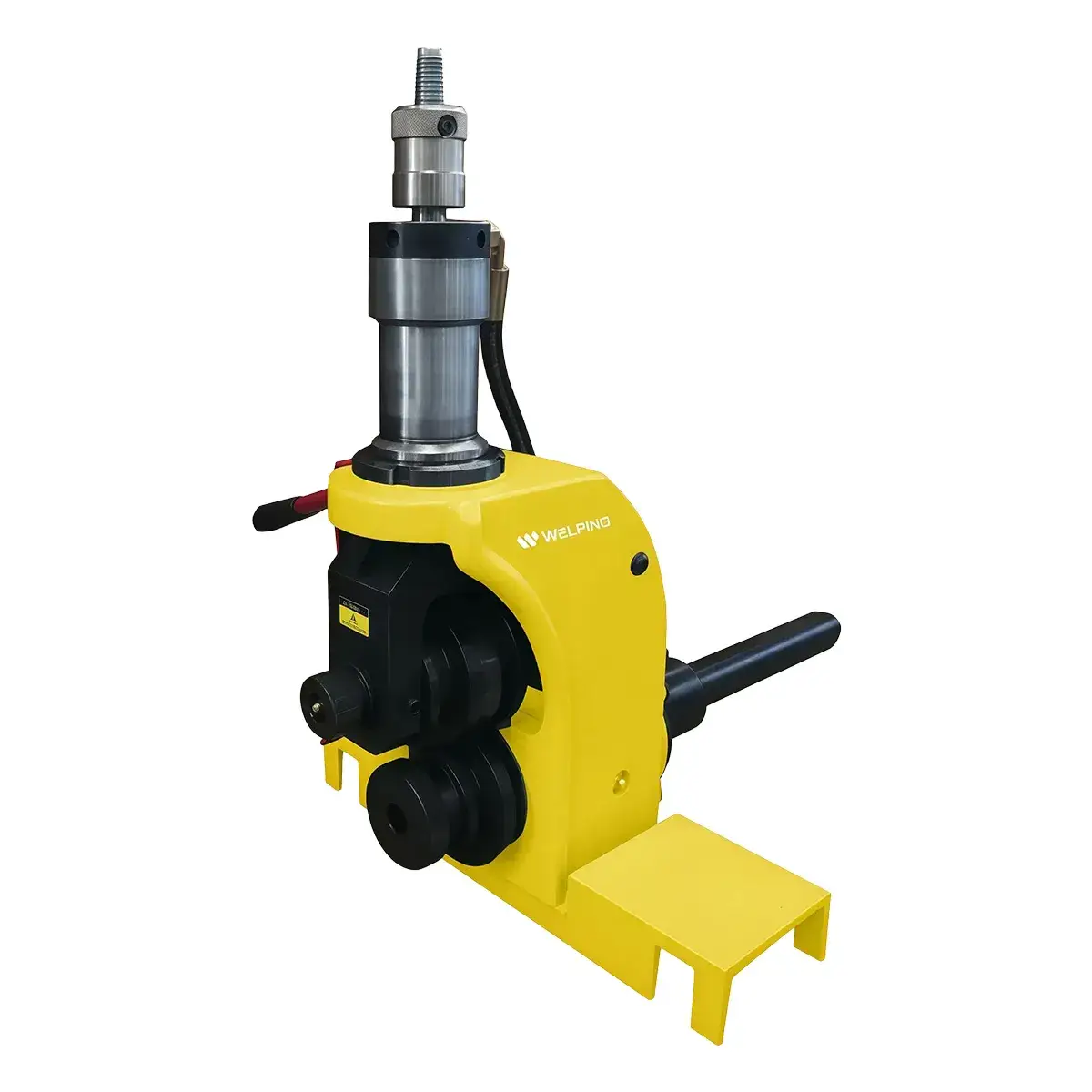

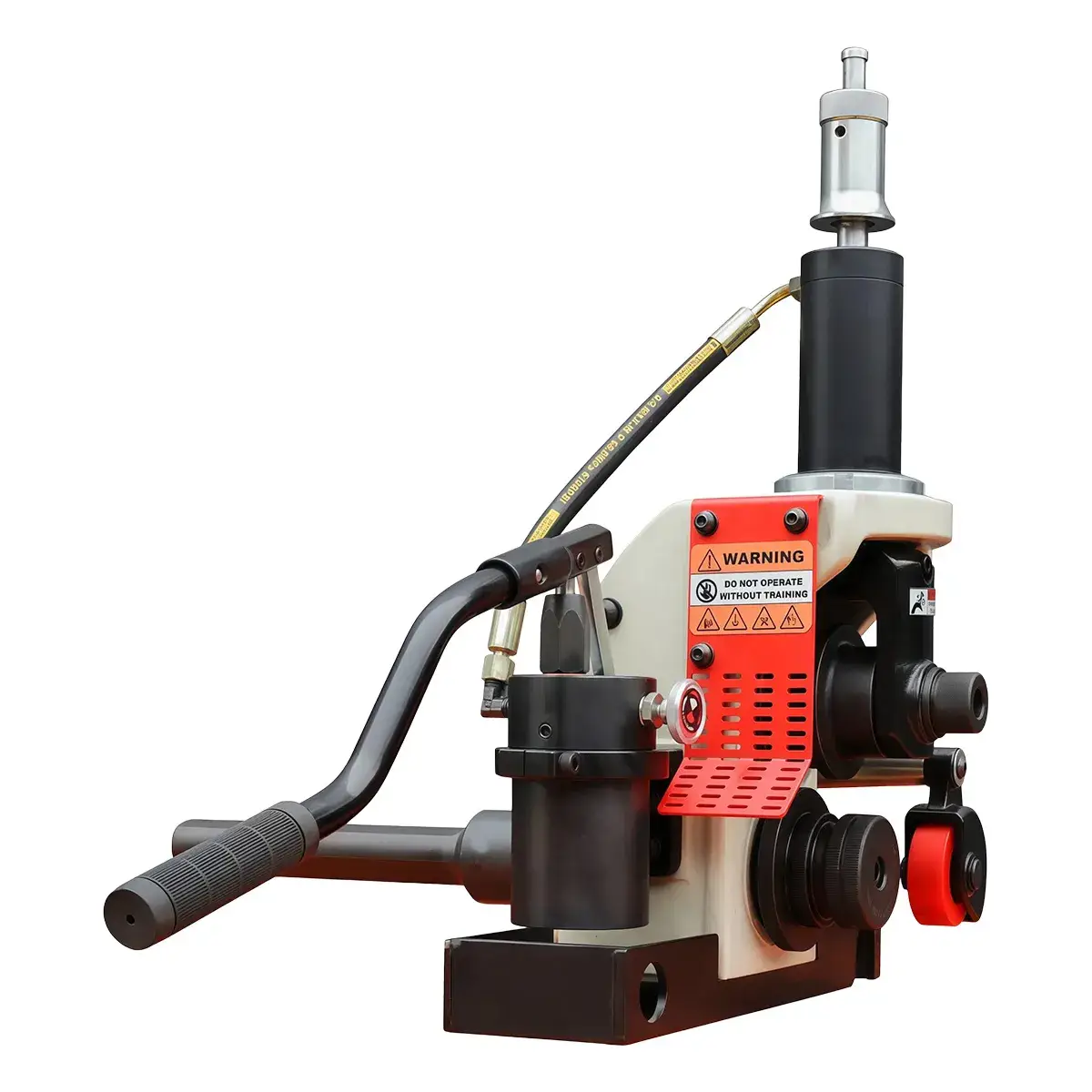

RG-H2X 2"–12" Hydraulic Roll Groover Accessory
Designed for use with a power drive unit or pipe threading machine, the heavy-duty manual hydraulic roll grooving assembly is suitable for 2"–12" steel pipe grooving. It supports pipe wall thickness up to 10 mm and is suitable for stable grooving of large-diameter steel pipes.
- Capacity Standard: 2"–12" SCH 10/40; Optional: 1" Roll Set
- Max. Wall Thickness 10 mm
- Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Specifications
| Model | |
| Applicable Materials | Carbon Steel Pipe Stainless Steel Pipe |
| Capacity | Standard: 2"–12" SCH 10/40; Optional: 1" Roll Set |
| Max. Wall Thickness | 10 mm |
| Packaging Dimensions (L×W×H) | 45 × 42 × 66 cm |
| Gross Weight | 74 kg |
Features
-
- Split hydraulic system with fully sealed structure and high-quality sealing components for long-term field use without leakage.
- Precision-machined cylinder ensures dimensional accuracy.
- Hardened piston rod improves service life.
- Built-in groove depth adjustment rod allows controlled and stable operation.
Hydraulic Pump -

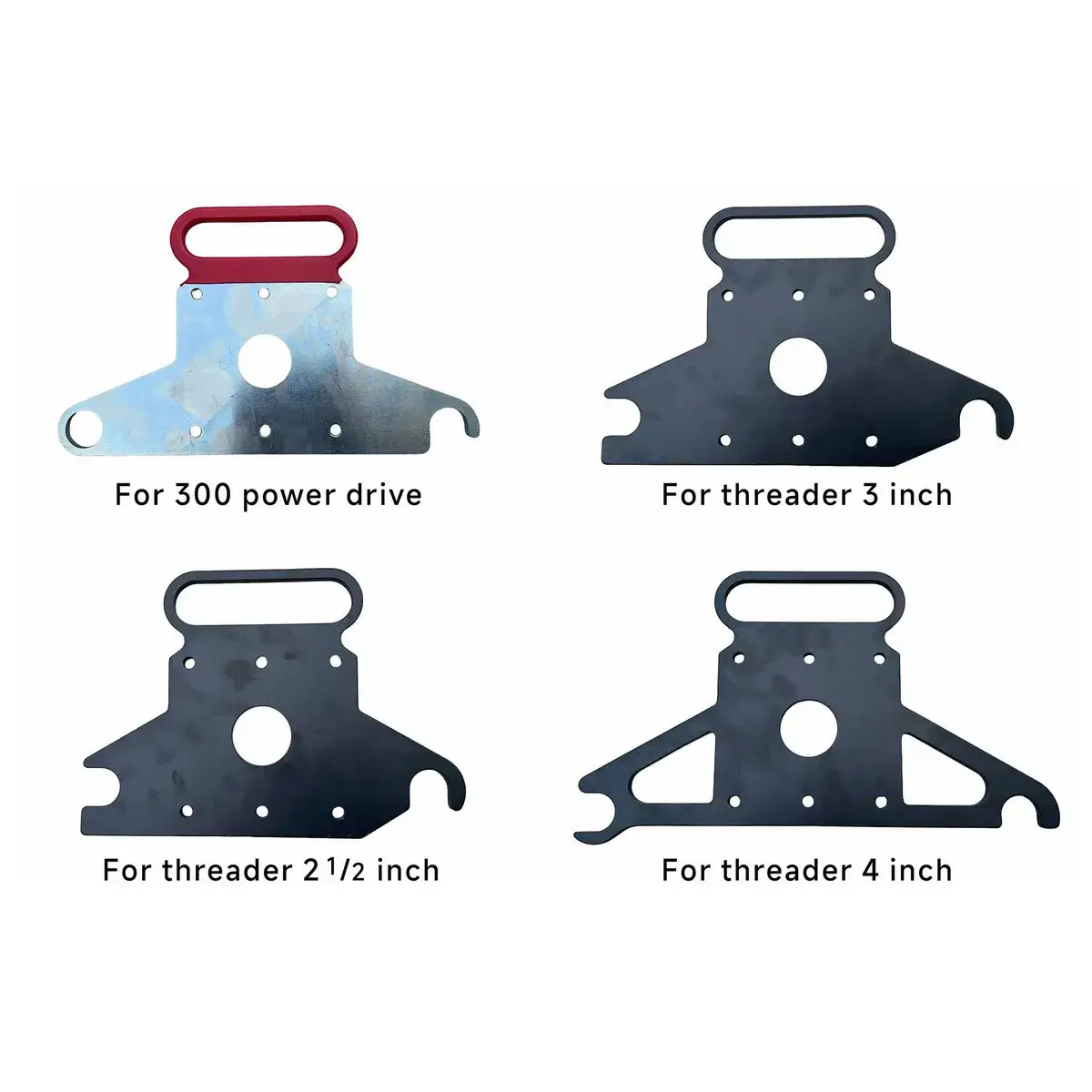

- The adapter plate is used for mounting on pipe threading machines.
- Compatible with 300-type drive units, as well as 2½", 3", and 4" pipe threading machines.
Adapter Plate -
- One set: 2"–3" (⌀ 60– ⌀ 89)
- One set: 3½"–6" (⌀ 101– ⌀ 168)
- One set: 8"–12" (⌀ 219– ⌀ 325)

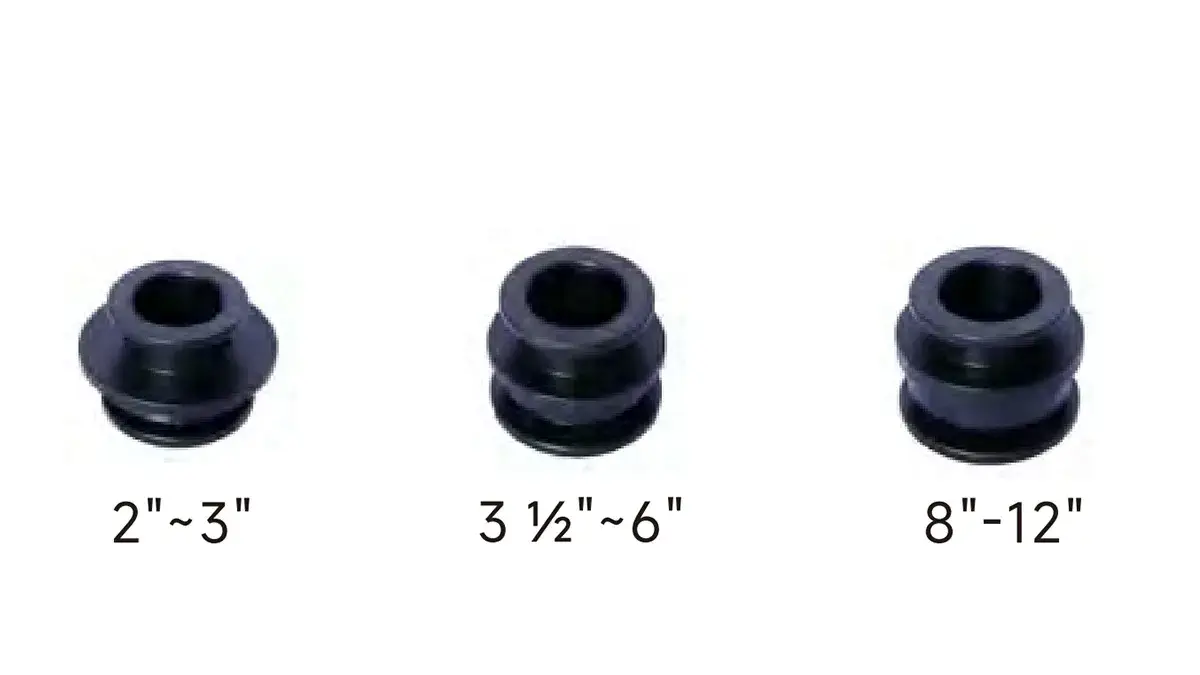

Grooving Rollers -
- One set: 2"–3" (⌀ 60–⌀ 89)
- One set: 3½"–6" (⌀ 101–⌀ 168)
- One set: 8"–12" (⌀ 219–⌀ 325)

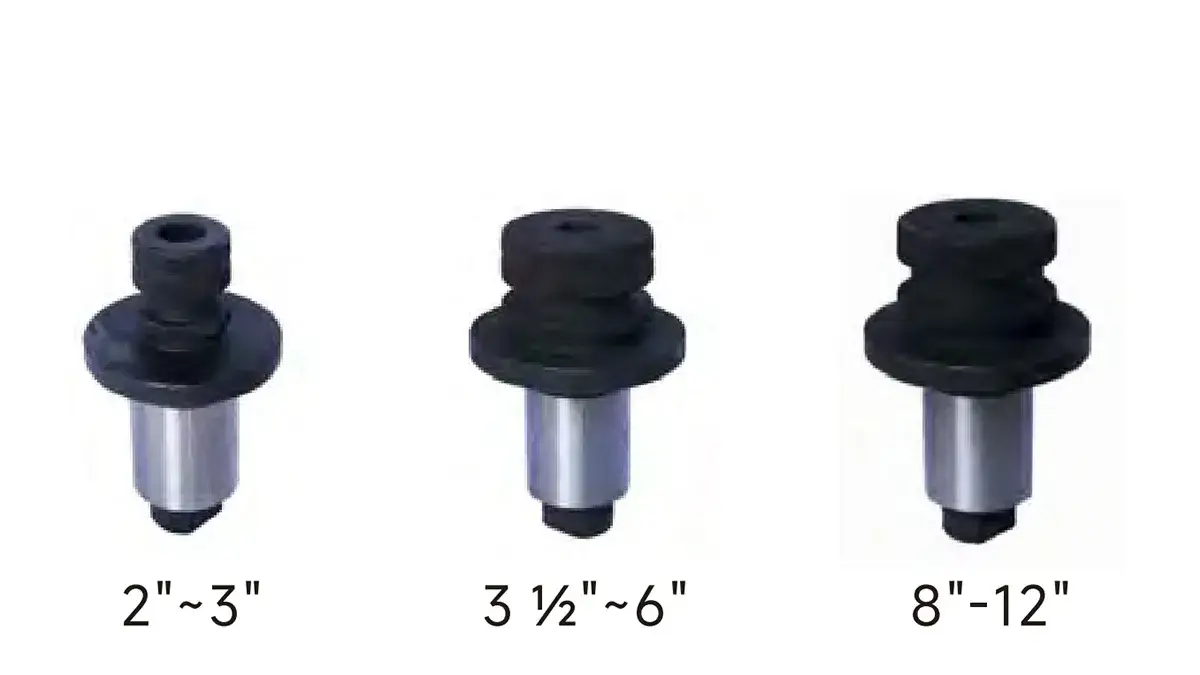

Drive Rollers
More

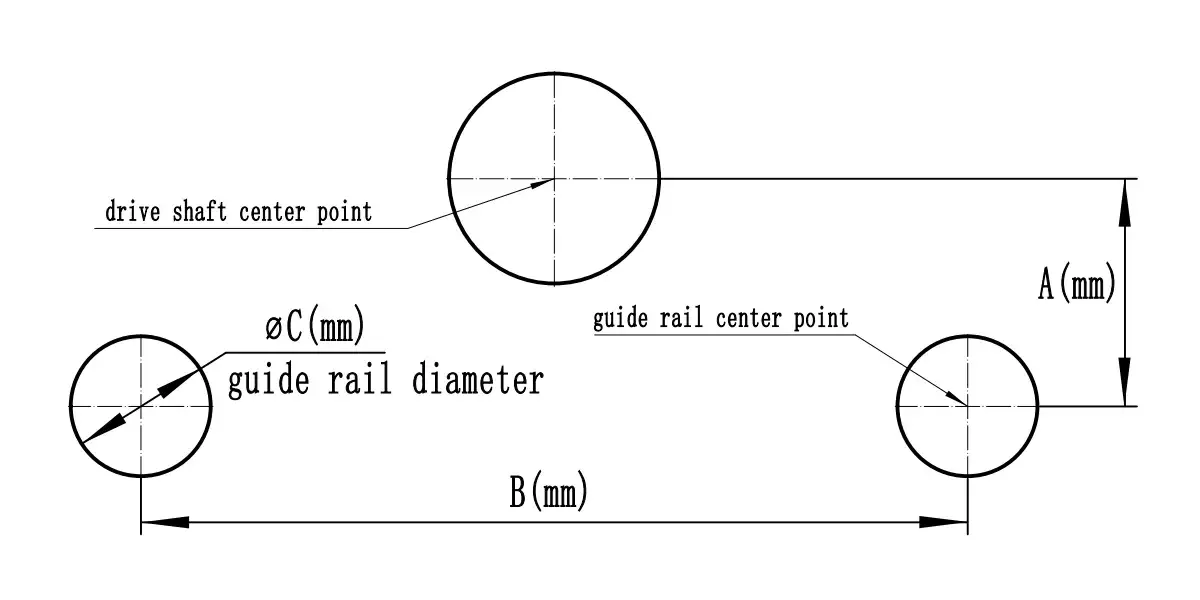

Mounting Plate & Transmission Alignment
The RG-H1X and RG-H2X pipe grooving accessories are equipped with a detachable mounting plate. The plate is manufactured using precision laser cutting technology and is designed to adapt to different machine models and equipment combinations. It is compatible with various pipe threading machines and drive units, including 300-type drive systems as well as other well-known brands.
