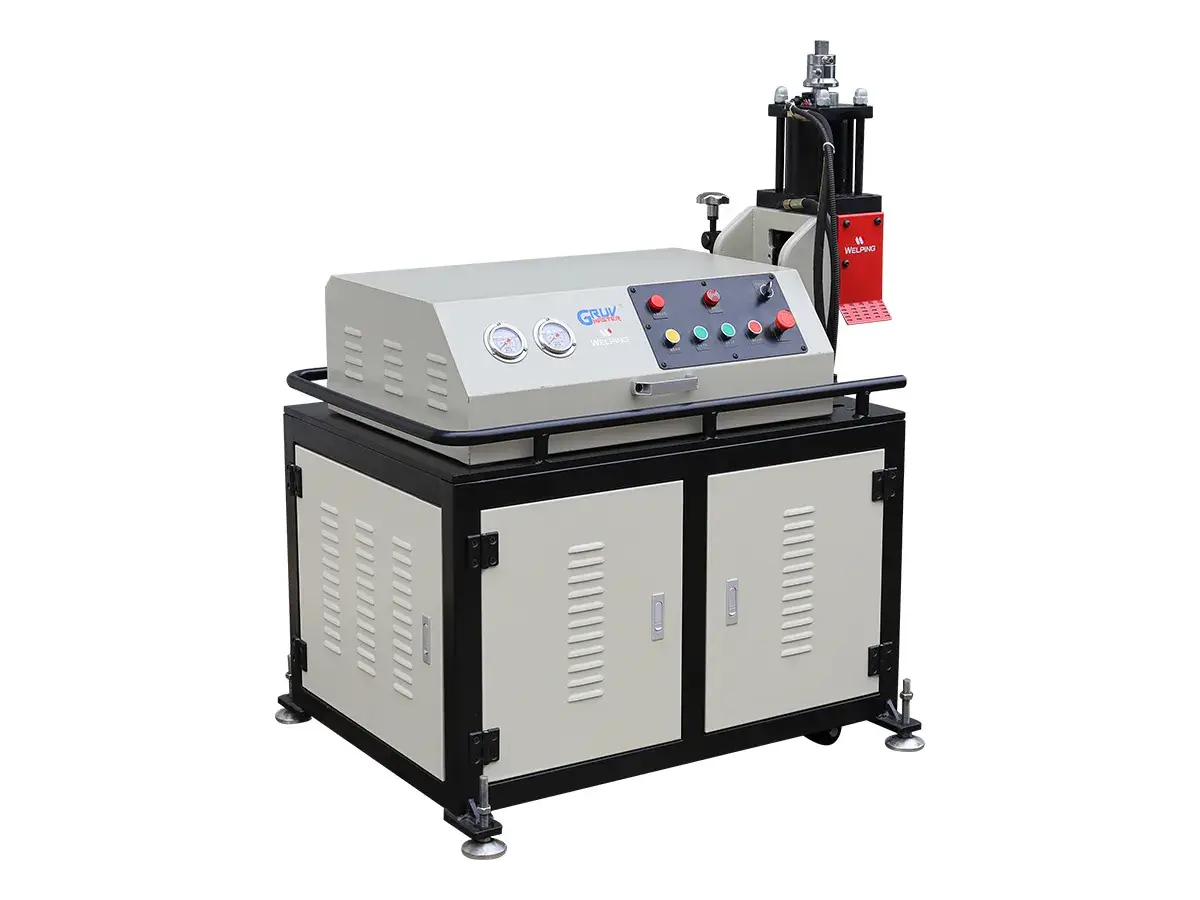

AG-4X 8"–24" Automatic Grooving Machine
The automatic roll grooving machine for 8"–24" large-diameter pipes supports processing of pipe wall thickness up to 13 mm and is equipped with a 2200W high-power drive system. It is suitable for workshop prefabrication, on-site installation, and batch production. The pipe fabrication equipment also handles demanding materials such as 20Mn high-strength steel pipes, which are difficult for standard grooving machines.
- Capacity 8"–24"
- Max. Wall Thickness 13 mm
- Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
| Model | |
| Applicable Materials | Carbon Steel Pipe Stainless Steel Pipe |
| Capacity | 8"–24" |
| Groove System | Standard: OGS Roll Sets Optional: AGS Roll Sets |
| Power Requirements | 380 V, 50 Hz |
| Max. Wall Thickness | 13 mm |
| Spindle Speed | 23 RPM |
| Motor Power | 2200 W |
| Packaging Dimensions (L×W×H) | 142 × 102 × 162 cm |
| Gross Weight | 635 kg |
-

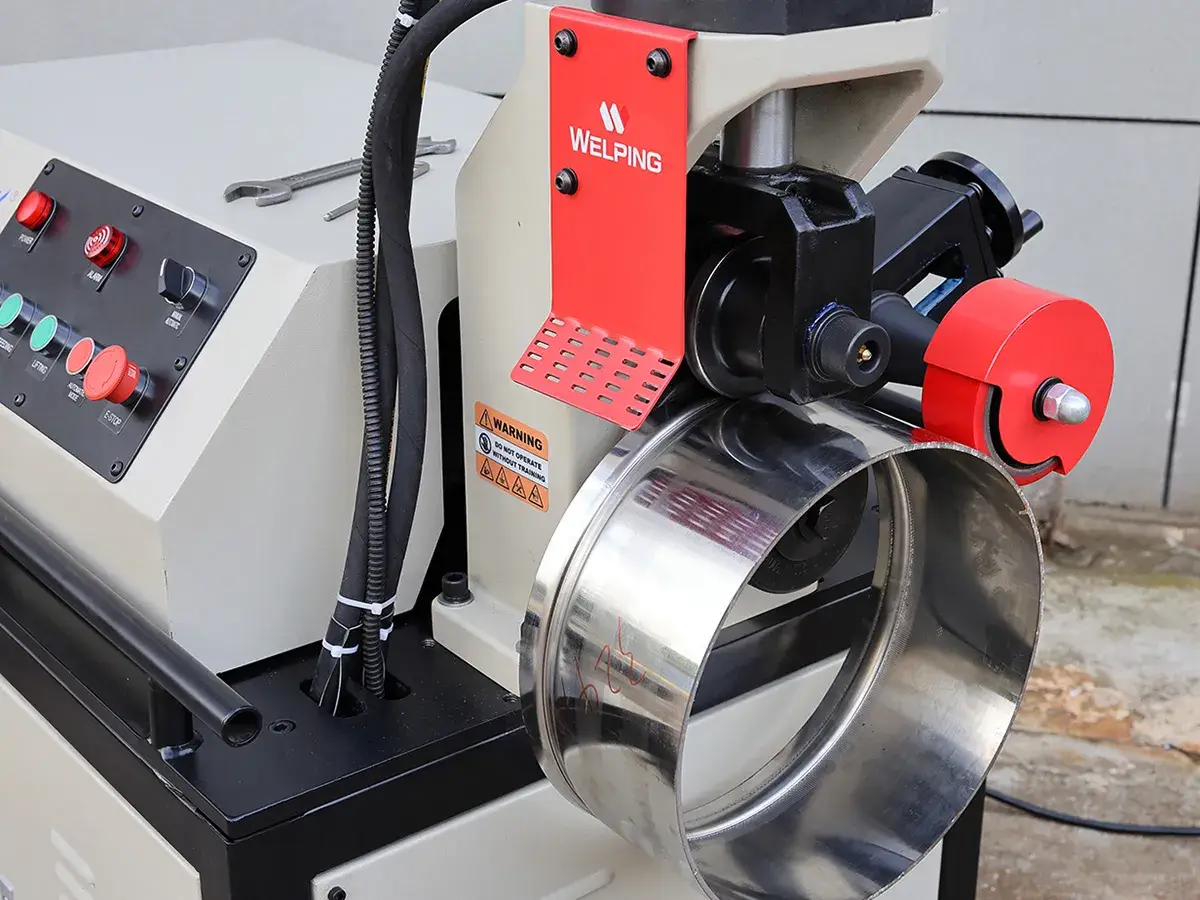

- Integrated electro-hydraulic control system supports automatic or manual operation of feed, grooving, and return functions.
- The hydraulic system provides stable continuous pressure output that helps maintain consistent groove depth and forming quality.

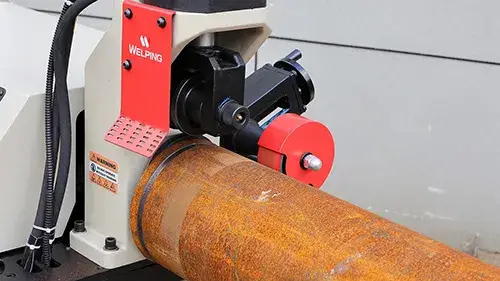

Automatic Control System -

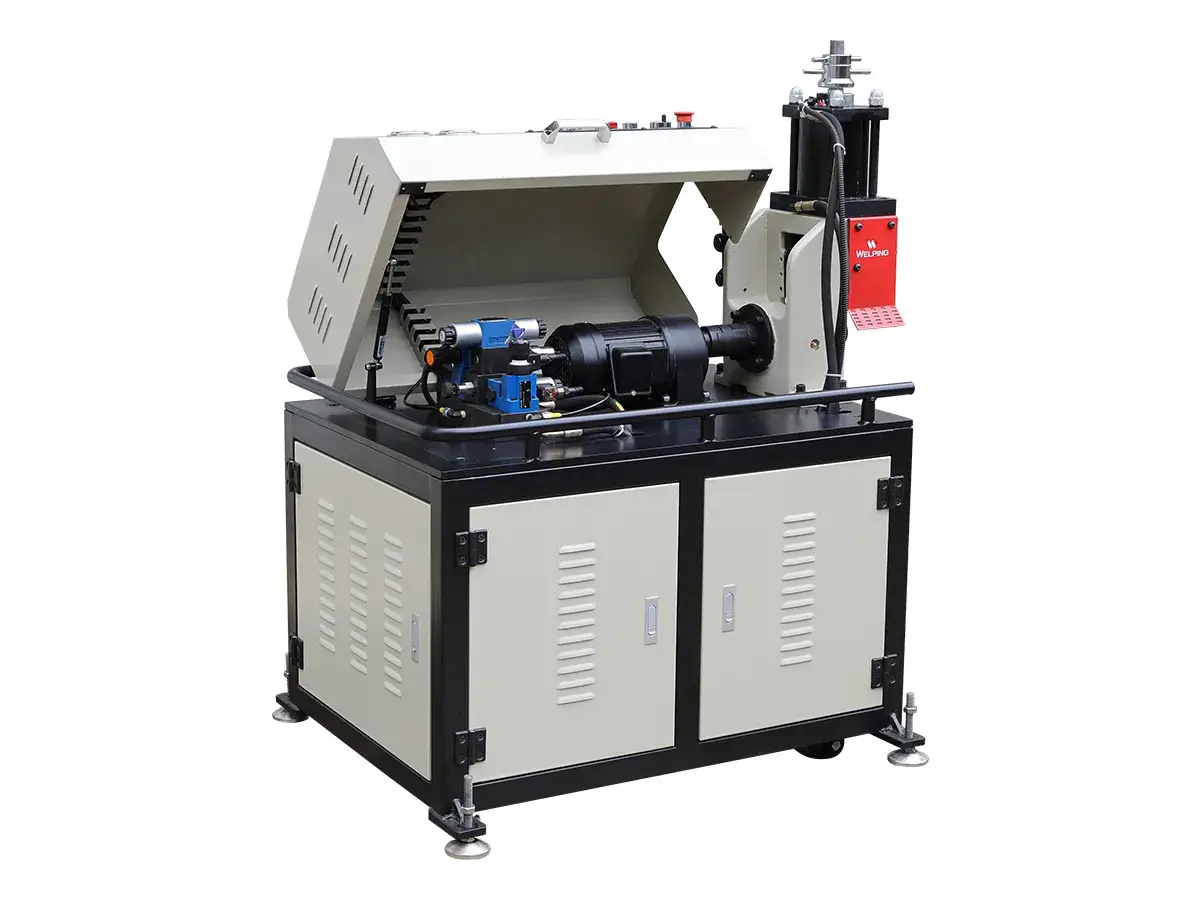

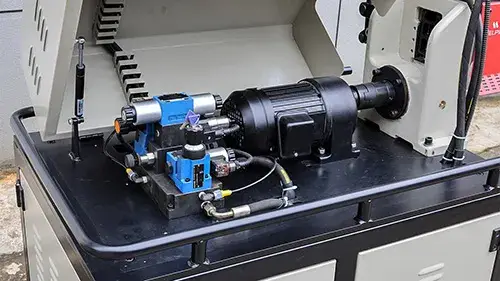

- Equipped with a 2200W motor, high-strength gearbox, electrical control system, and hydraulic system.
- It supports long-duration stable operation under batch processing and heavy-load working conditions.
High-Power Drive System -

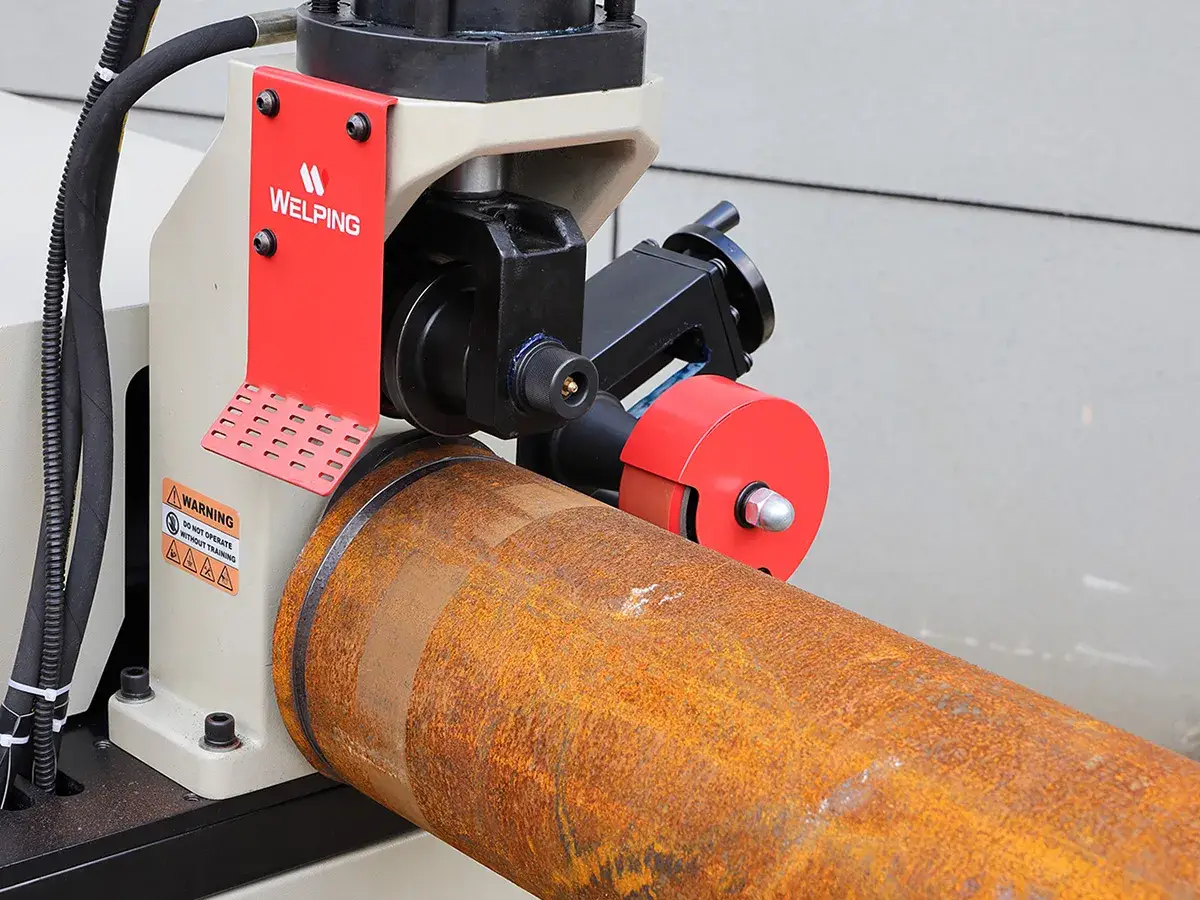

- High-strength drive and groove rollers are hardened for long service life.
- The interlocking roller helps control pipe end sealing length more accurately and improves grooving consistency.
- Optional AGS grooving assembly is available.

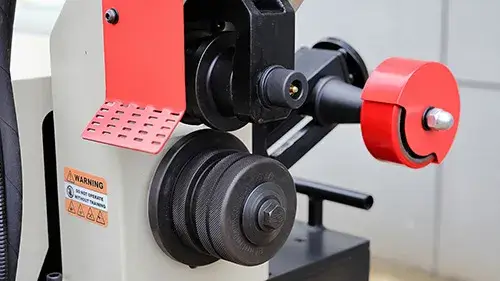

Controlled Grooving Process -
Automatic Depth ControlThe groover is equipped with a depth limit device. When the groove reaches the preset depth, the grooving roller automatically returns. This helps maintain consistent groove depth during batch production.
-
- It uses a button-control interface with clear operating logic for easy operation.
- Compared with touchscreen systems, button control is more suitable for workshop and jobsite environments and is easier to maintain.
Easy to Operate -

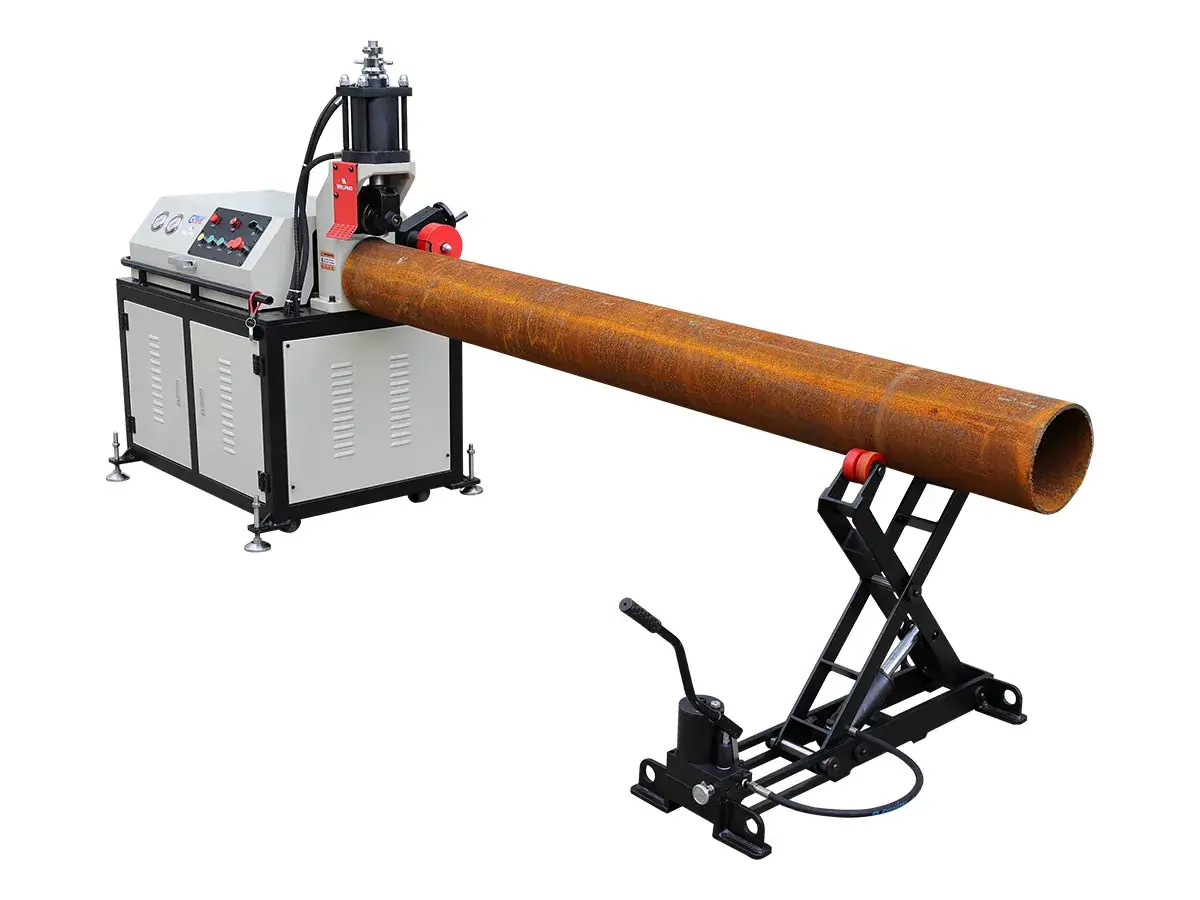

Pipe Support SystemStandard pipe stand improves stability and alignment during grooving operations.
-

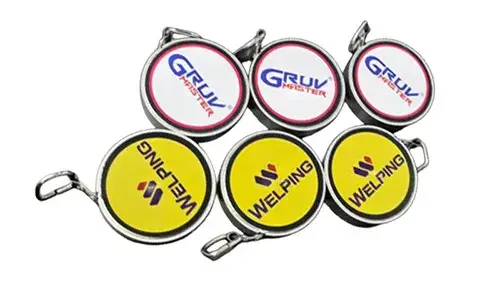

Inspection & Auxiliary ToolA groove inspection gauge is included for quick size checking and improved quality control efficiency.
| Description | Net Weight |
| Drive Roll 8"–12" (O.D. 219.1–323.9 mm) | 3.50 kg |
| Drive Roll 14"–16" (O.D. 355.6–406.4 mm) | 3.50 kg |
| Drive Roll 18"–24" (O.D. 457.2–609.6 mm) | 3.50 kg |
| Groove Roll 8"–12" (O.D. 219.1–323.9 mm) | 1.40 kg |
| Groove Roll 14"–16" (O.D. 355.6–406.4 mm) | 1.40 kg |
| Groove Roll 18"–24" (O.D. 457.2–609.6 mm) | 1.40 kg |
| Description | Net Weight |
| AGS Drive Roll 14"–24" (O.D. 355.6–609.6 mm) | 3.5 kg |
| AGS Groove Roll 14"–24" (O.D. 355.6–609.6 mm) | 2.0 kg |
