Hydraulic Roll Groover

These machines are widely used in fire protection systems, HVAC installations, drainage systems, industrial piping, and other applications where efficient pipe installation is required.

2"–12" Groove End Reforming Machine, GM-2X
  • 2"–12" Groove End Reforming Machine, GM-2X
  • 2"–12" Groove End Reforming Machine, GM-2X
  • 2"–12" Groove End Reforming Machine, GM-2X
  • 2"–12" Groove End Reforming Machine, GM-2X
  • 2"–12" Groove End Reforming Machine, GM-2X
  • 2"–12" Groove End Reforming Machine, GM-2X

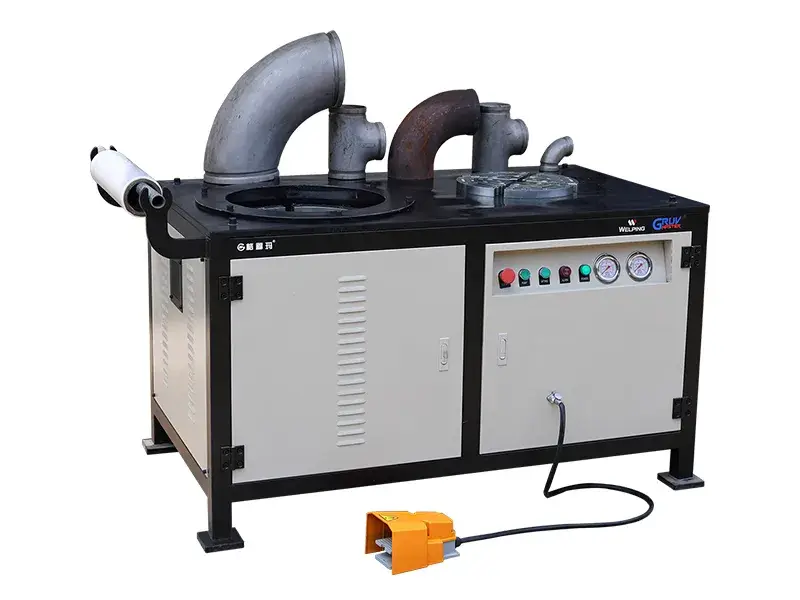

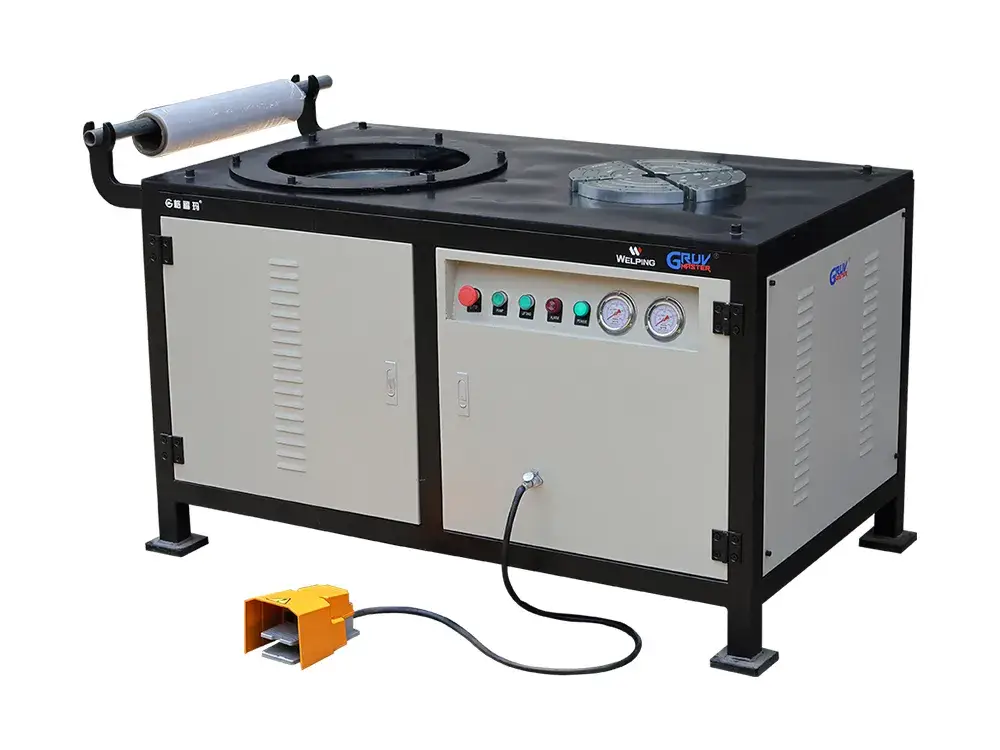

GM-2X 2"–12" Groove End Reforming Machine

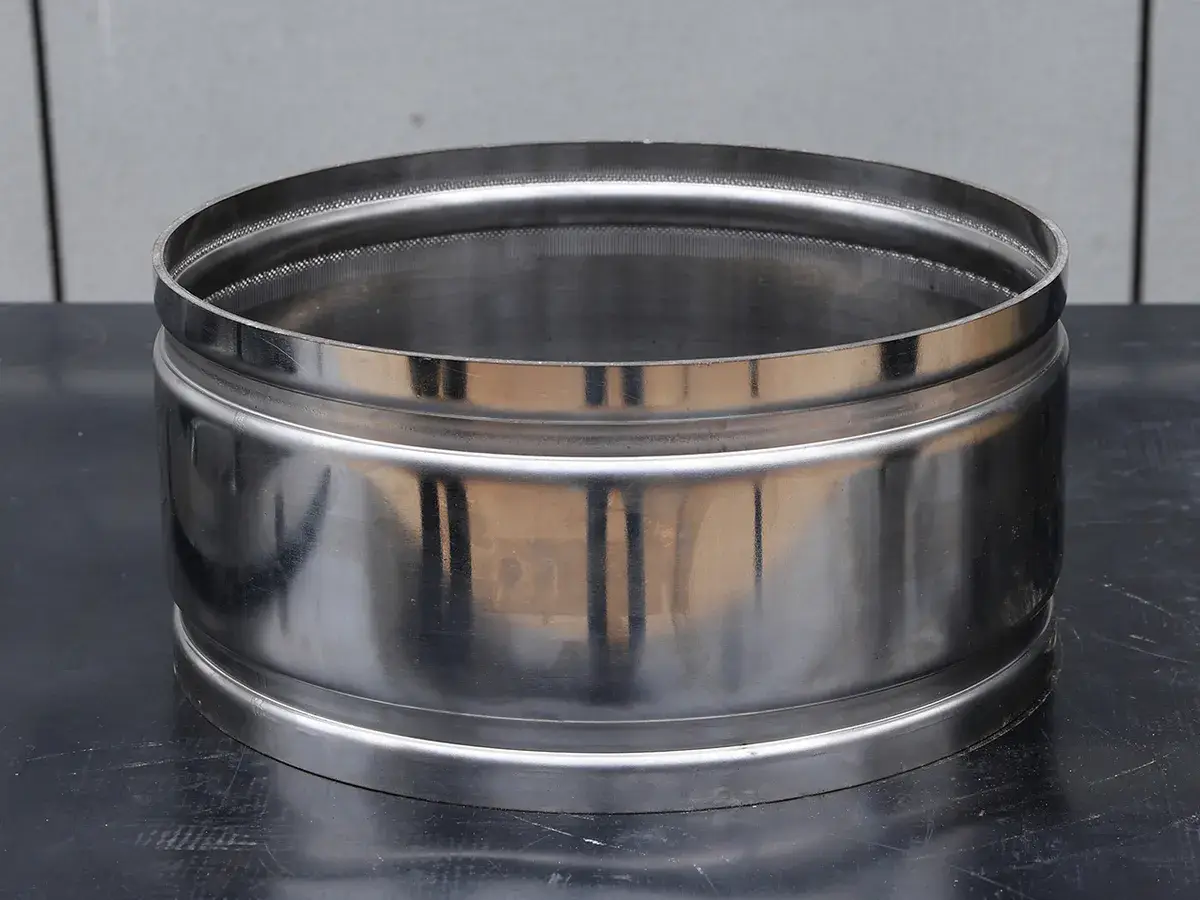

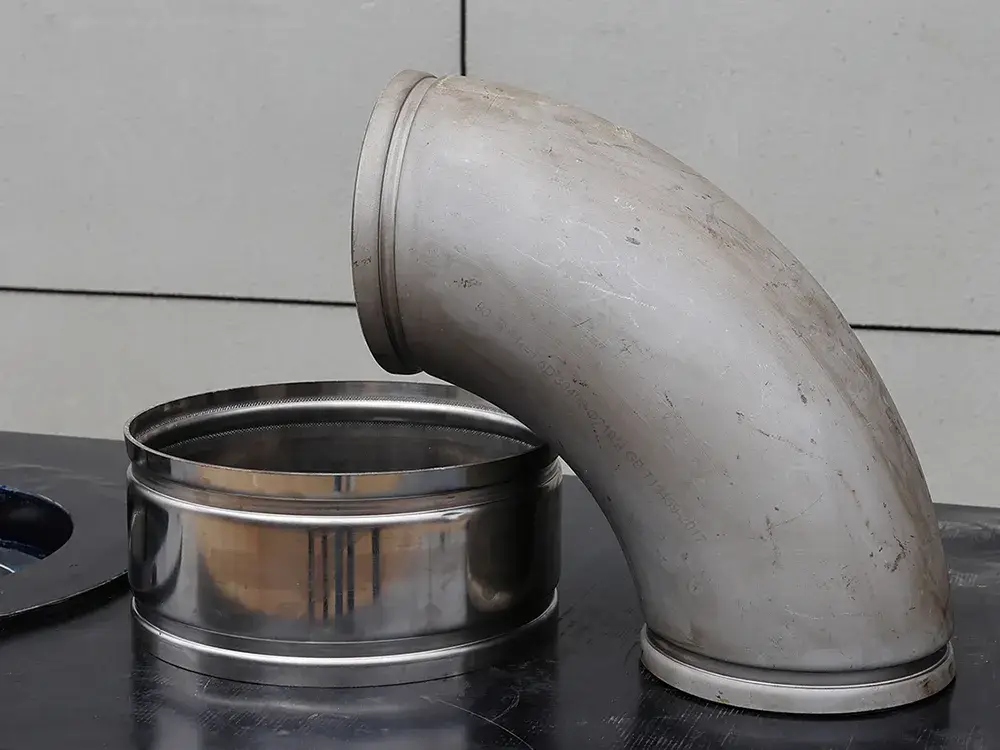

The groove end reforming machine is designed for groove end correction of 2"–12" pipe fittings. It is suitable for elbows, tees, reducers, and other fittings to restore or adjust groove end geometry. It also ensures dimensional accuracy and proper fit before assembly, suitable for continuous production and maintenance applications.

  • Capacity 2"–12", SCH 10/40
  • Max. Wall Thickness 10 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers
Specifications
Model GM-2X
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity 2"–12", SCH 10/40
Power Requirements 380 V, 50 Hz
Max. Wall Thickness 10 mm
Max. Cylinder Force 20 Tons
Motor Power 2200 W
Packaging Dimensions (L×W×H) 162 × 83 × 110 cm
Gross Weight 815 kg
Features
    • Hydraulic Driven Forming Process

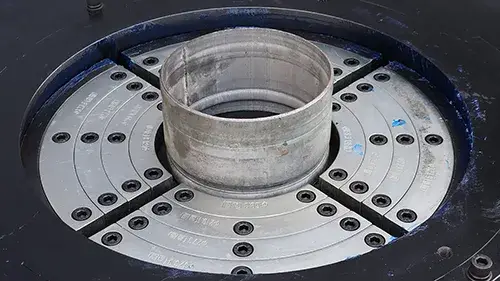

      Hydraulic Driven Forming Process
      • The reforming process is fully completed by the hydraulic system in a single operation.
      • It reduces manual adjustment and improves processing efficiency and consistency.
    • Non-Damaging Surface Treatment
      Non-Damaging Surface Treatment

      The controlled reforming process does not impact or scratch the sealing surface of the pipe fitting, helping maintain reliable sealing performance in grooved connections.

    • Stable Power System

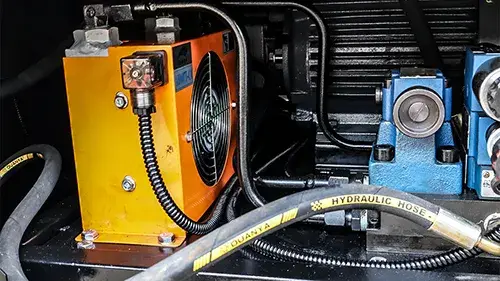

      Stable Power System

      The roll grooving machine uses proven hydraulic and electrical components with stable output performance.
      It supports continuous operation in both workshop and field environments.

    • Simple & Safe Operation
      Simple & Safe Operation
      • Button control combined with a foot switch provides direct response during operation.
      • The system helps reduce incorrect operation and improves overall working safety.
More

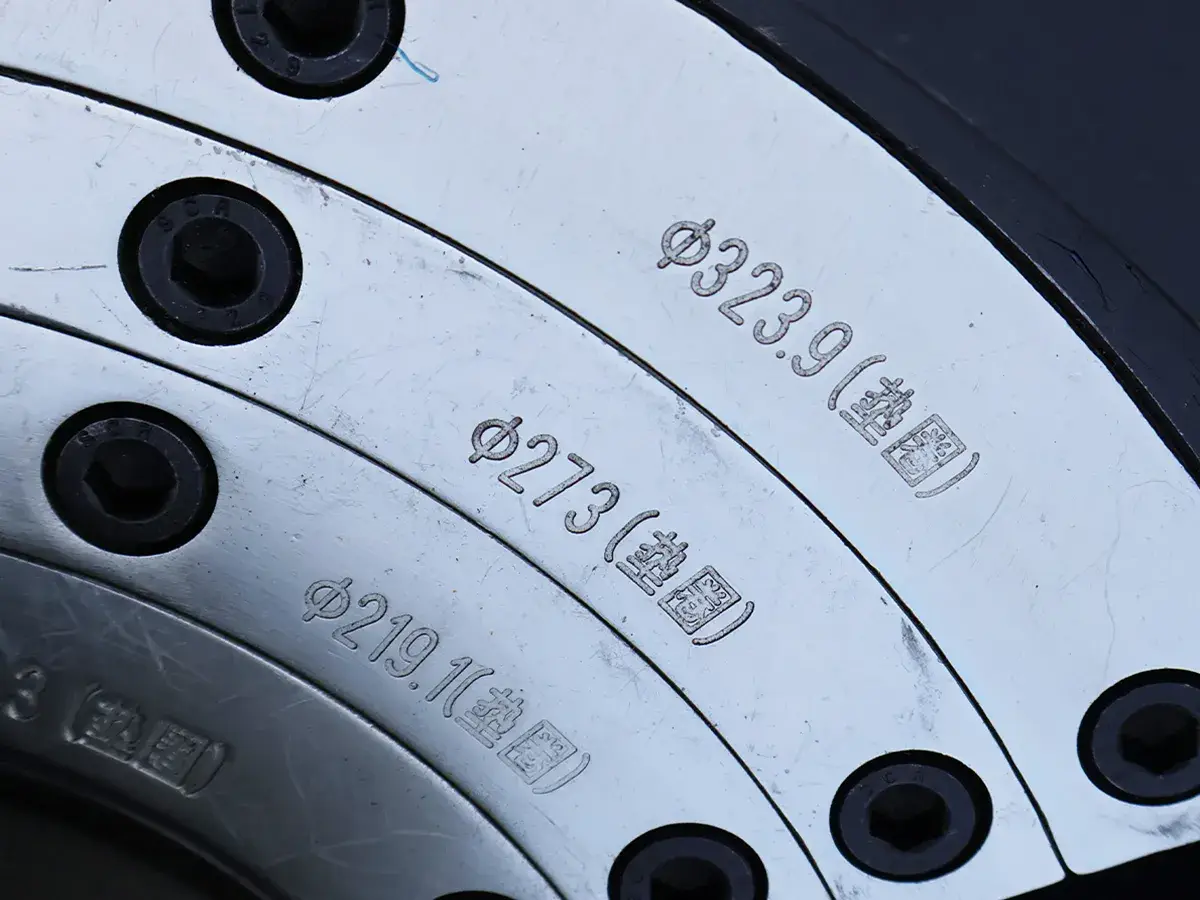

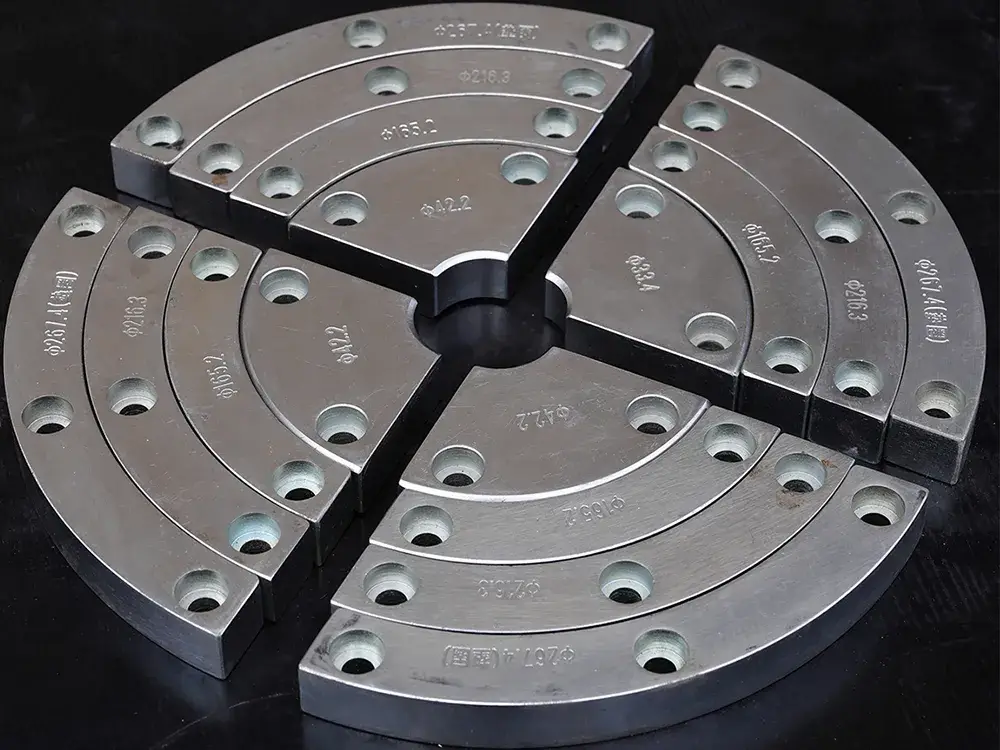

Standard Equipment
Description Net Weight
Pipe Rounding Die 2" (O.D. 60.3 mm) 0.25 kg
Pipe Rounding Die (O.D. 70.0 mm) 0.35 kg
Pipe Rounding Die 3" (O.D. 88.9 mm) 0.50 kg
Pipe Rounding Die 4" (O.D. 114.3 mm) 0.60 kg
Pipe Rounding Die 5" (O.D. 141.3 mm) 0.70 kg
Pipe Rounding Die 6" (O.D. 168.3 mm) 0.80 kg
Pipe Rounding Die (O.D. 216.3 mm) 1.00 kg
Pipe Rounding Die (O.D. 219.1 mm) 1.20 kg
Pipe Rounding Die (O.D. 267.4 mm) 1.50 kg
Pipe Rounding Die (O.D. 273.0 mm) 1.60 kg
Pipe Rounding Die (O.D. 318.5 mm) 1.80 kg
Pipe Rounding Die (O.D. 323.9 mm) 2.00 kg
