Hydraulic Roll Groover

These machines are widely used in fire protection systems, HVAC installations, drainage systems, industrial piping, and other applications where efficient pipe installation is required.

1"–12" Hydraulic Roll Grooving Machine, RG-5X
  • 1"–12" Hydraulic Roll Grooving Machine, RG-5X
  • 1"–12" Hydraulic Roll Grooving Machine, RG-5X
  • 1"–12" Hydraulic Roll Grooving Machine, RG-5X
  • 1"–12" Hydraulic Roll Grooving Machine, RG-5X
  • 1"–12" Hydraulic Roll Grooving Machine, RG-5X

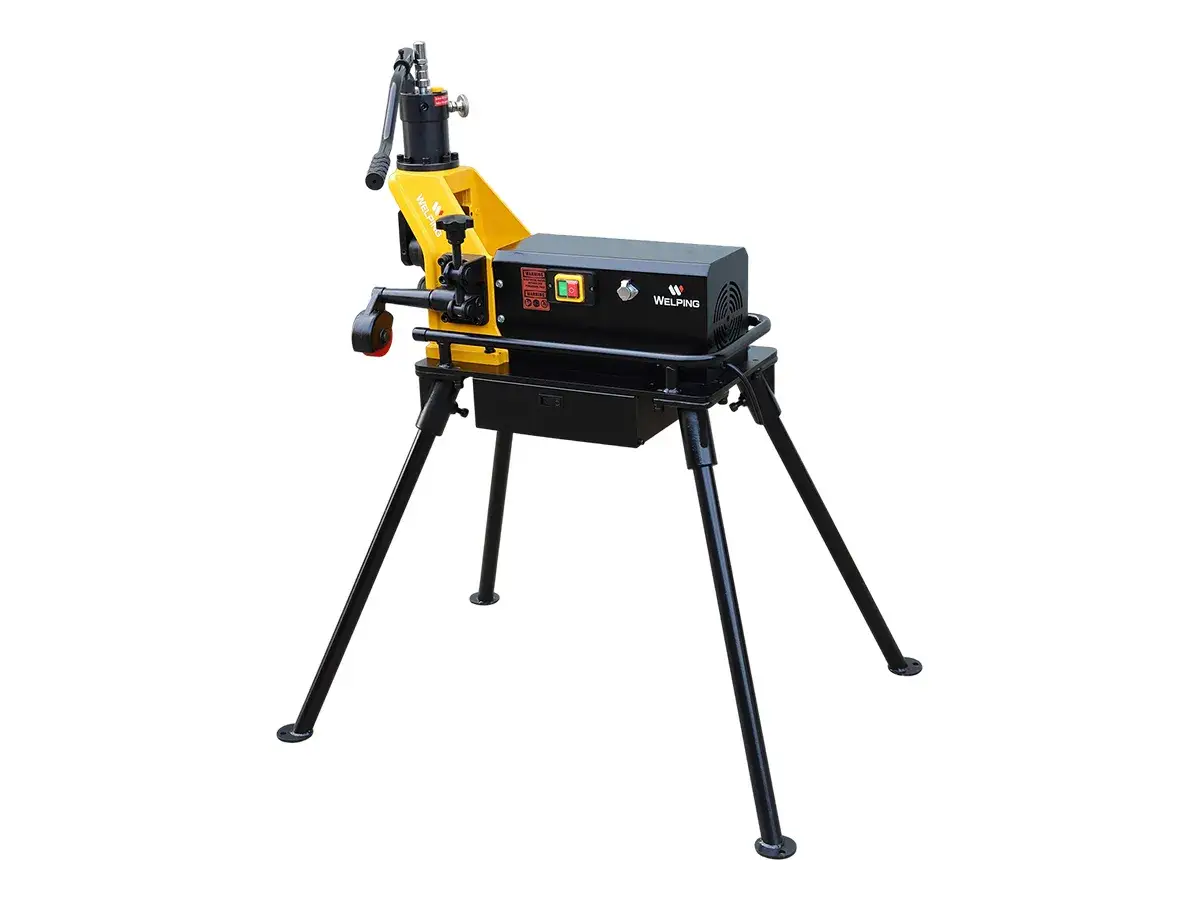

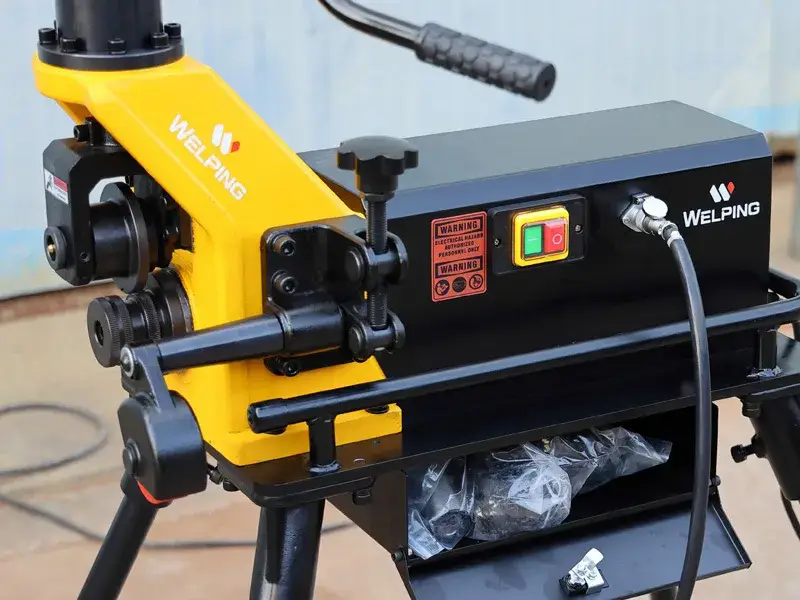

RG-5X 1"–12" Hydraulic Roll Grooving Machine

RG-5X is a versatile hydraulic roll grooving machine that integrates a low-noise gear reduction motor, hydraulic pump, and depth locking system. It is designed to groove 1"–8" and 10"–12" steel pipes efficiently for both workshop production and on-site installation.

  • Capacity 1"–12" Schedule 10/40, 10"–12" Schedule 10/20
  • Max. Wall Thickness 8 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers
Specifications
Model RG-5X
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity 1"–12" Schedule 10/40
10"–12" Schedule 10/20
Power Requirements 220 V/110 V, 50/60 Hz
Max. Wall Thickness 8 mm
Spindle Speed 23 RPM
Motor Power 1100 W
Packaging Dimensions (L×W×H) 72 × 42 × 78 cm
Gross Weight 120 kg
Drive & Actuation Gear reducer drive with integrated hydraulic pump
Features
    • Hydraulic Pump
      Hydraulic Pump
      • High-quality sealing components help prevent oil leakage during long-term operation.
      • Precision-machined cylinder provides accurate dimensions and smooth operation.
      • Surface-hardened piston rod offers excellent wear resistance and long service life.
      • Built-in graduated depth adjustment screw provides clear indication and convenient operation.
    • Cast Iron Head
      Cast Iron Head
      • Thick cast iron head provides excellent rigidity and resists deformation under heavy workloads.
      • Custom machine colors are available.
    • Grooving Roll Assembly
      Grooving Roll Assembly

      Manufactured from high-strength alloy steel with a hardened surface for excellent wear resistance and long service life.

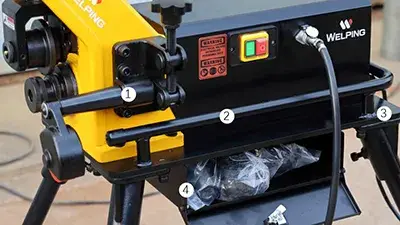

    • Base, Components & Toolbox
      Base, Components & Toolbox
      • Equipped with a pipe stabilizer, pipe stand, and integrated hydraulic pump.
      • Integrated steel base offers high strength, a rigid structure, and excellent resistance to deformation.
      • Built-in toolbox keeps commonly used tools organized and within easy reach.

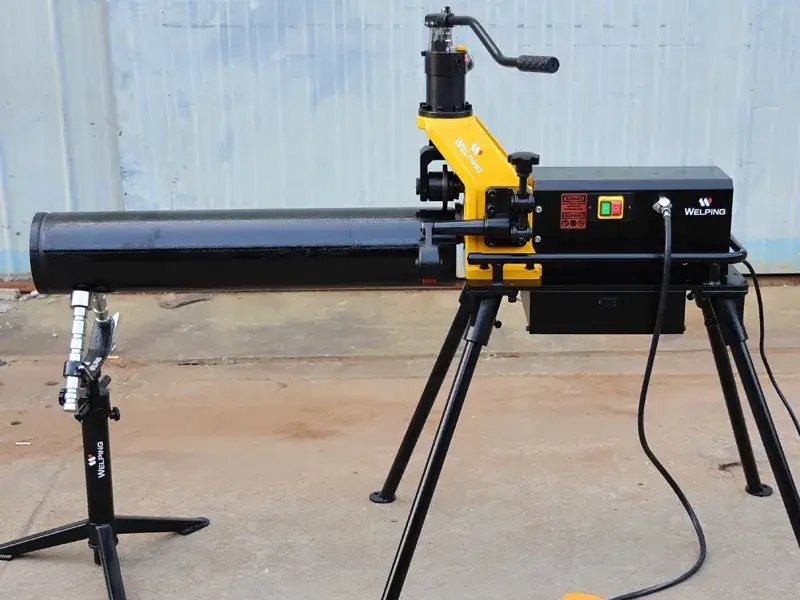

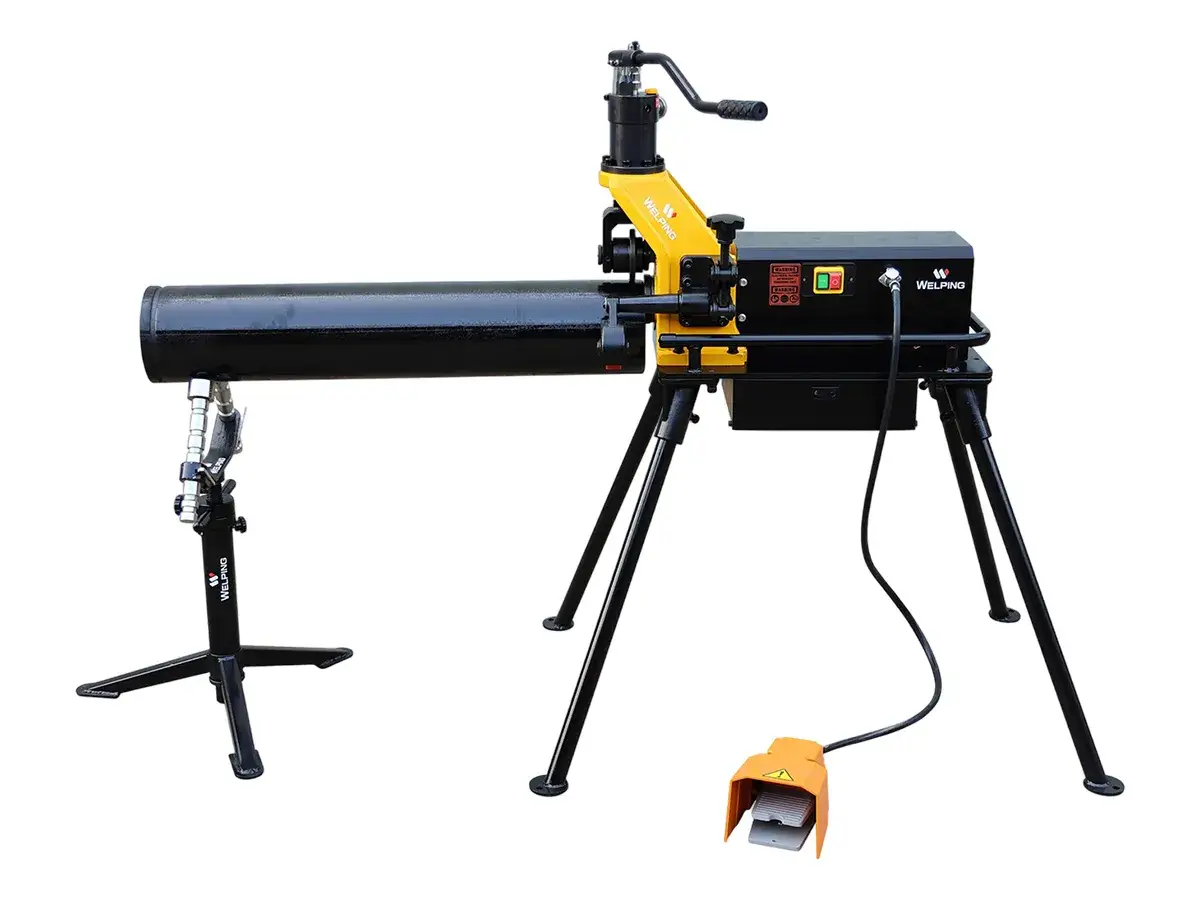

    • Pipe Stand
      Pipe Stand
      • Quick adjustment lever accommodates different pipe diameters.
      • Precision-machined guide slots with a locking mechanism provide stable and reliable adjustment.
      • Ball bearing head supports smooth pipe rotation and forward/backward movement.
      • Adjustable stand height suits different working requirements.

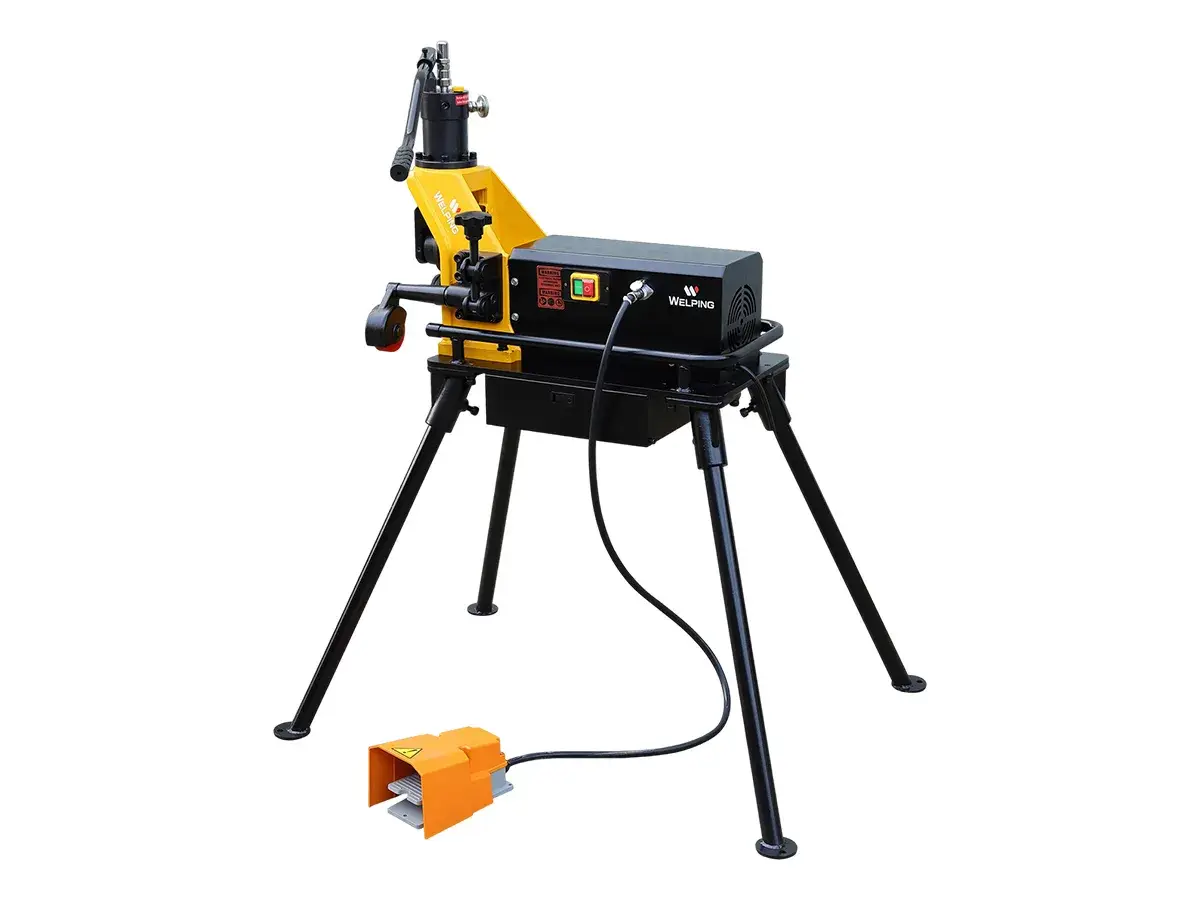

    • Foot Switch
      Foot Switch
      • Protective guard helps prevent accidental operation.
      • Foot-operated control start and stop efficiently, leaving both hands free for effective pipe handling.
More
Standard Roll Sets Specifications
Description Net Weight
Standard Roll Sets Specifications Drive Roll 1"–1 ½" (O.D. 33–48 mm) 1.15 kg
Drive Roll 2"–3" (O.D. 60–89 mm) 1.15 kg
Drive Roll 3 ½"–6" (O.D. 102–168 mm) 1.70 kg
Drive Roll 8"–12" (O.D. 219–324 mm) 1.70 kg
Groove Roll 1"–1 ½" (O.D. 33–48 mm) 0.90 kg
Groove Roll 2"–6" (O.D. 60–168 mm) 0.98 kg
Groove Roll 8"–12" (O.D. 219–324 mm) 0.90 kg
