Hydraulic Roll Groover

These machines are widely used in fire protection systems, HVAC installations, drainage systems, industrial piping, and other applications where efficient pipe installation is required.

1"–12" Hydraulic Roll Grooving Tool, RG-5A
  • 1"–12" Hydraulic Roll Grooving Tool, RG-5A
  • 1"–12" Hydraulic Roll Grooving Tool, RG-5A
  • 1"–12" Hydraulic Roll Grooving Tool, RG-5A
  • 1"–12" Hydraulic Roll Grooving Tool, RG-5A
  • 1"–12" Hydraulic Roll Grooving Tool, RG-5A
  • 1"–12" Hydraulic Roll Grooving Tool, RG-5A

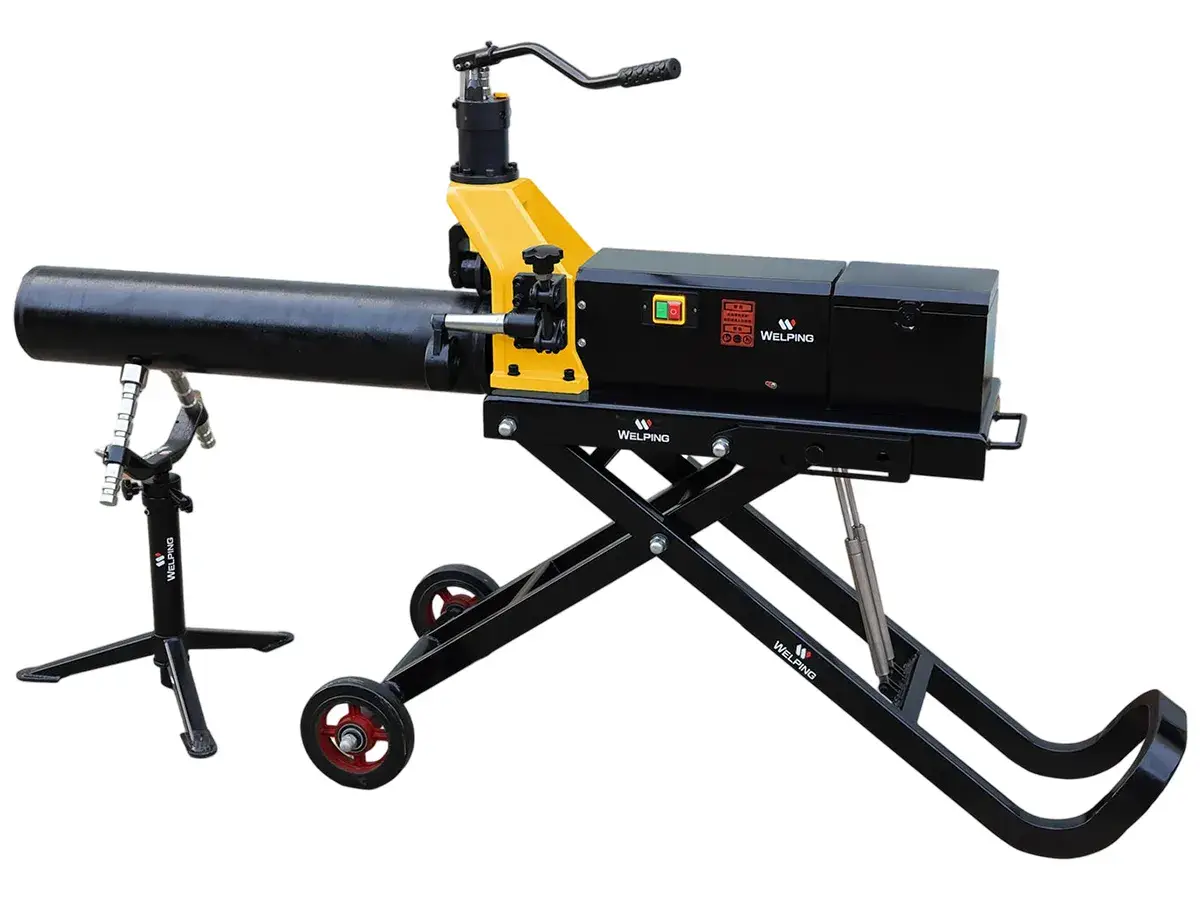

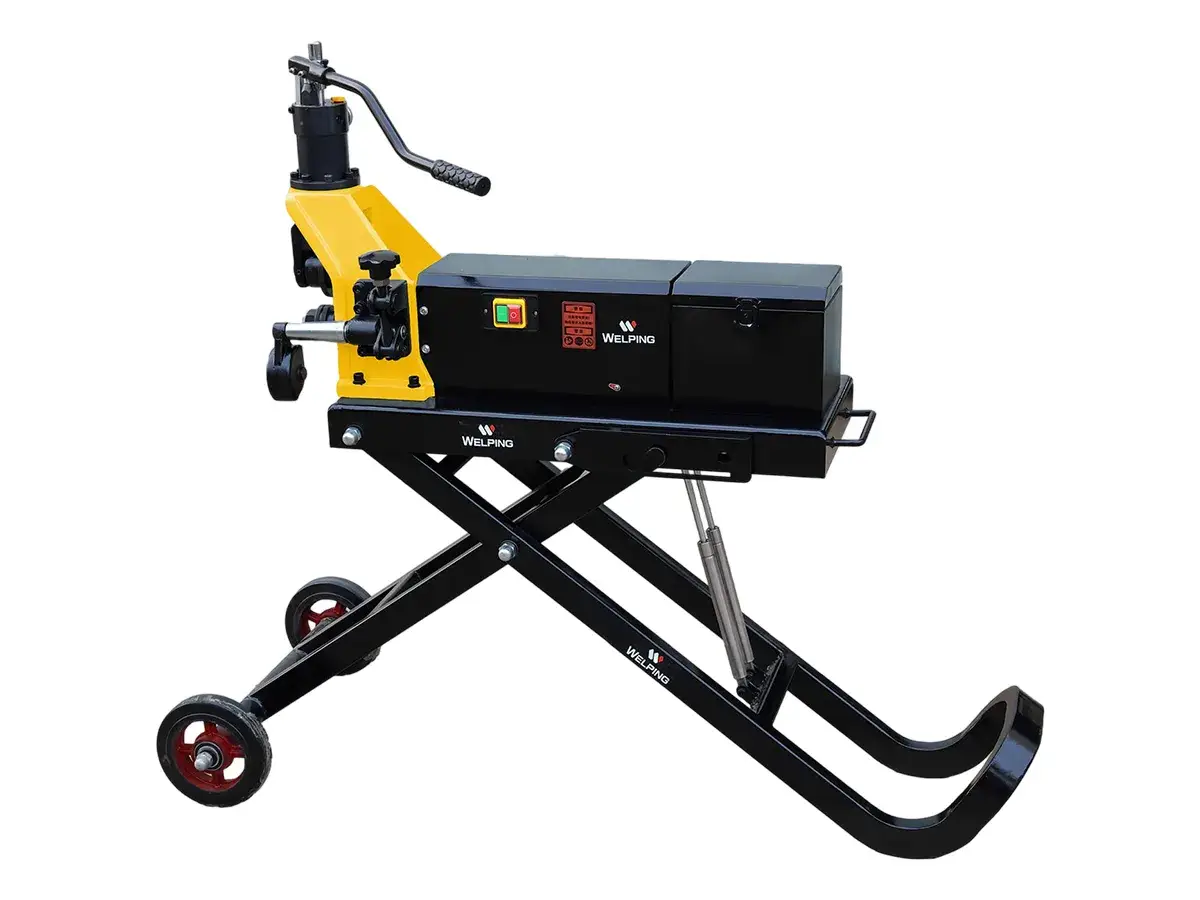

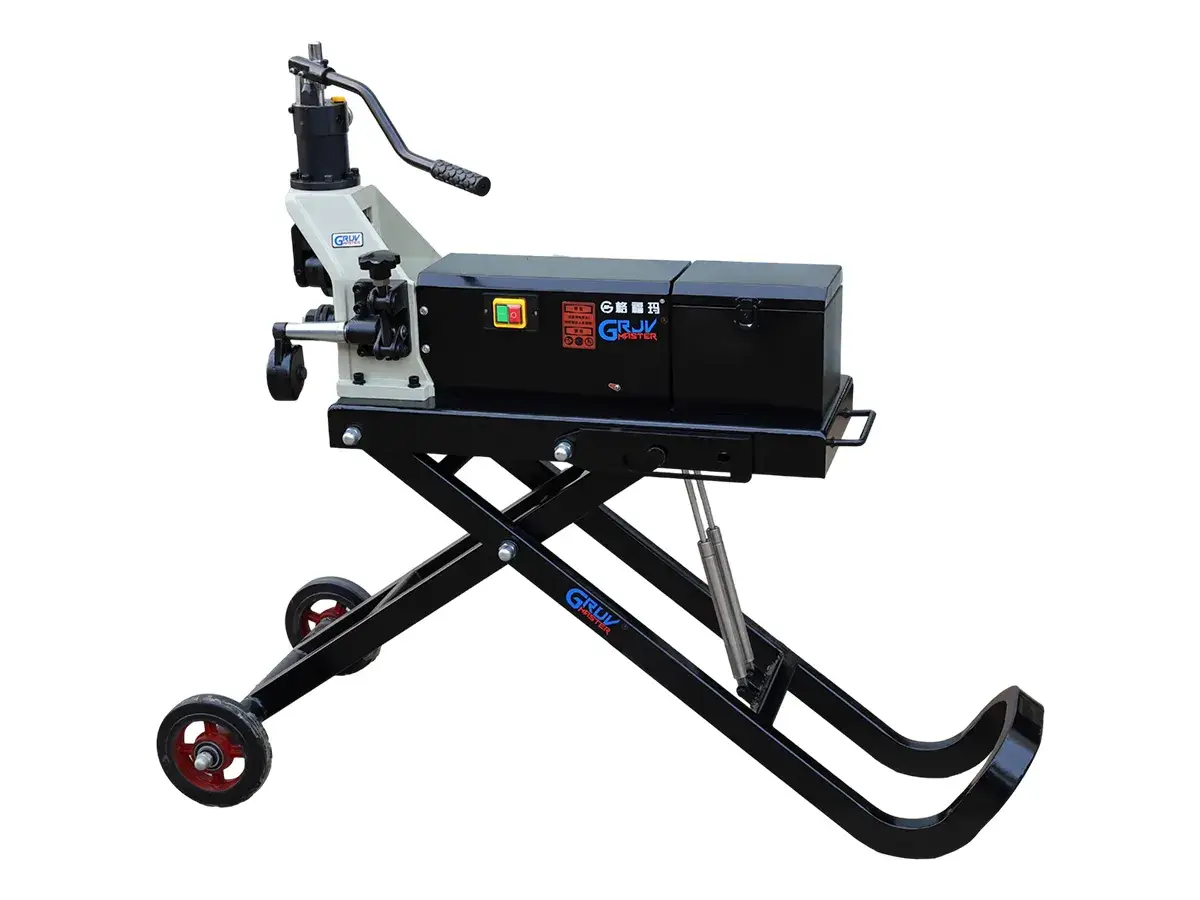

RG-5A 1"–12" Hydraulic Roll Grooving Tool

The hydraulic roll grooving tool for 1"–12" pipes integrates a low-noise gear reduction motor, hydraulic feed pump, and depth locking system. The groover is suitable for grooving pipes with different wall thicknesses in routine workshop and on-site applications. It is equipped with a mobile base, pipe stabilizer, and adjustable stand for flexible operation.

  • Capacity 1"–8" Schedule 10/40, 10"–12" Schedule 10/20
  • Max. Wall Thickness 8 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers
Specifications
Model RG-5A
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity 1"–8" Schedule 10/40
10"–12" Schedule 10/20
Power Requirements 220 V/110 V, 50/60 Hz, Single Phase
Max. Wall Thickness 8 mm
Spindle Speed 23 RPM
Motor Power 1100 W
Packaging Dimensions (L×W×H) 142 × 68 × 135 cm
Gross Weight 185 kg
Features

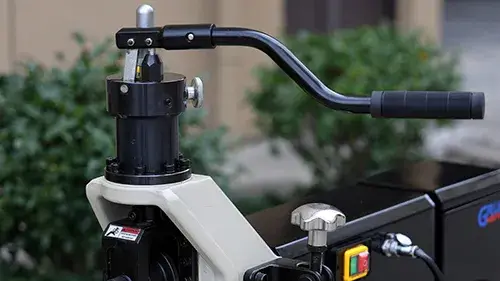

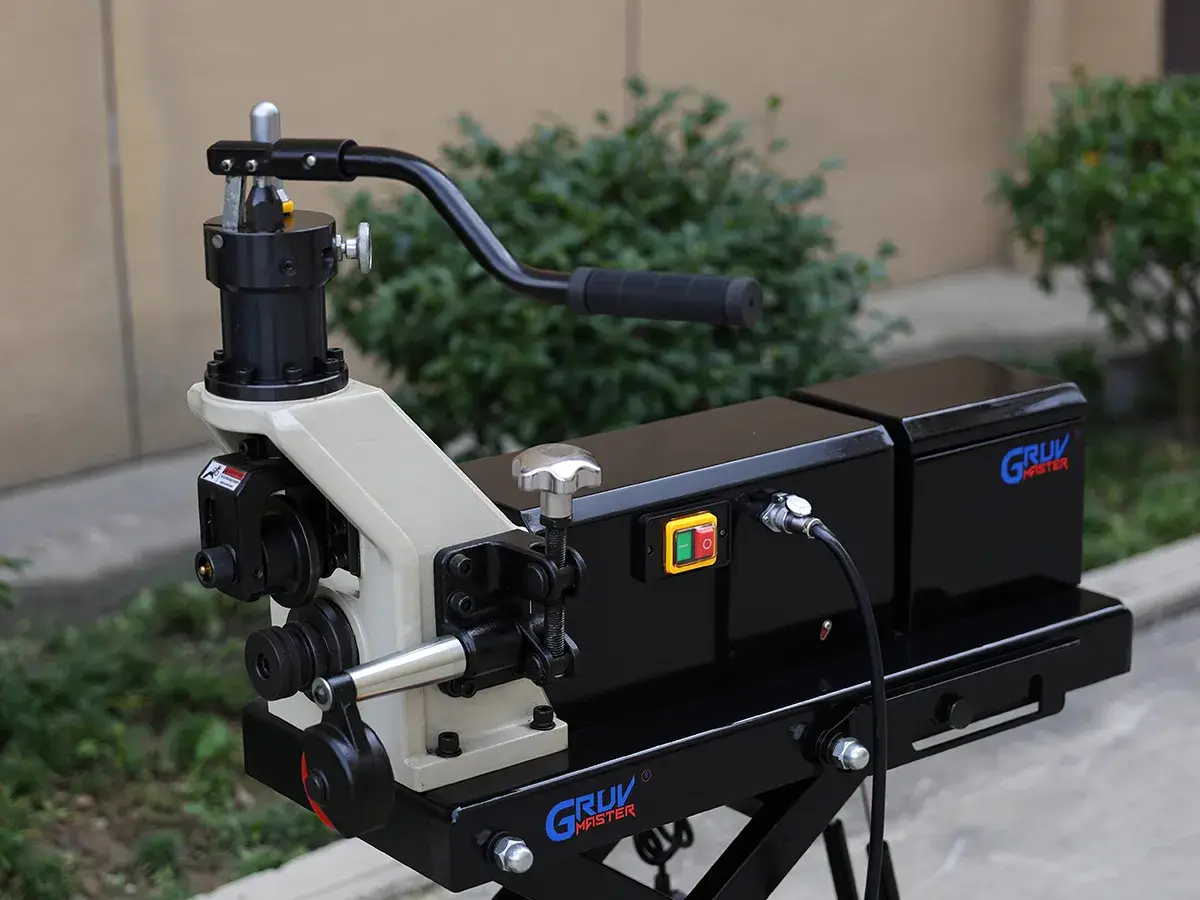

    • Hydraulic Pump
      Hydraulic Pump
      • Precision-machined cylinder with a hardened piston rod provides stable operation and long service life.
      • A built-in graduated depth adjustment screw offers clear indication and easy adjustment during operation.

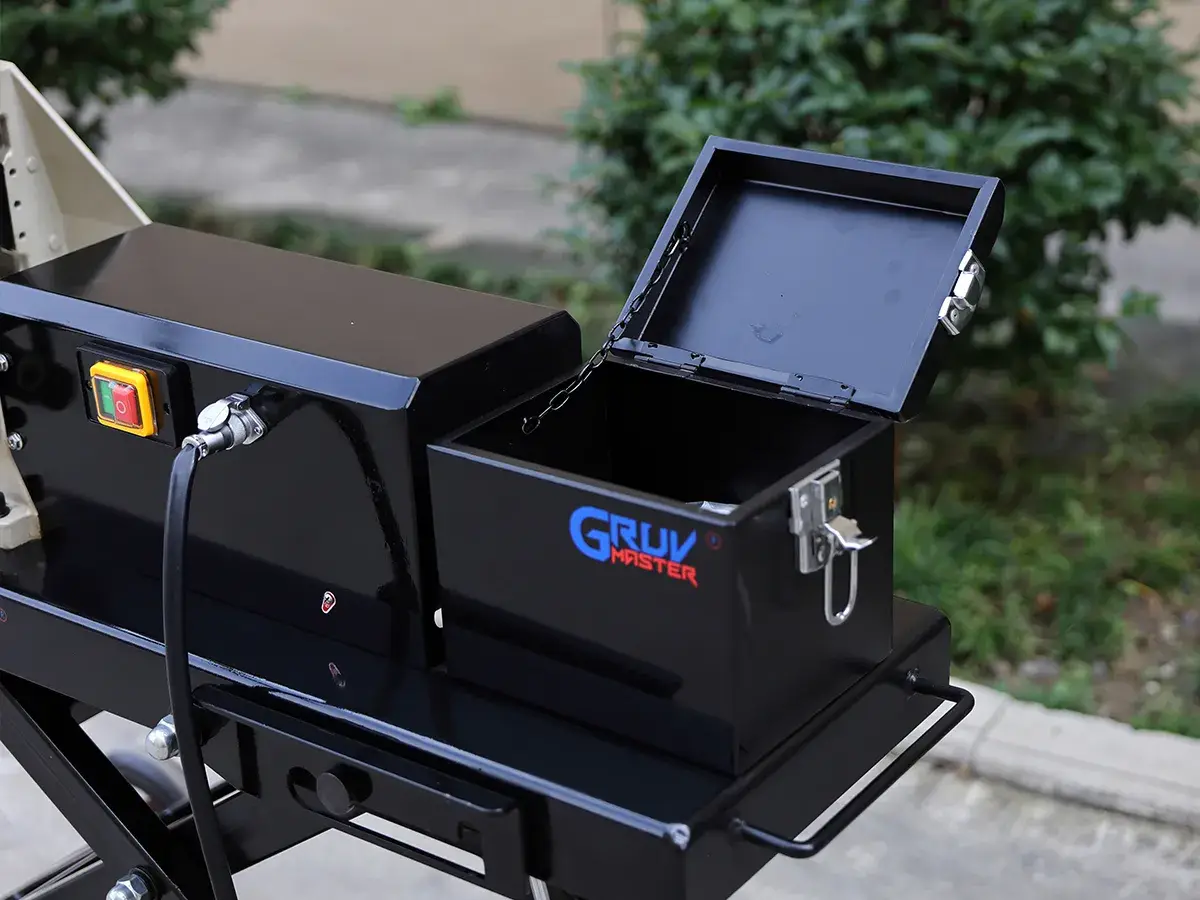

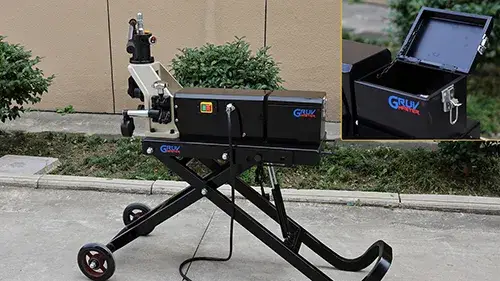

    • Heavy-Duty Mobile Base & Toolbox
      Heavy-Duty Mobile Base & Toolbox
      • The heavy-duty mobile base with a large mounting platform improves overall stability and supports easy movement in workshops or job sites.
      • An integrated toolbox provides storage for roller sets, tools, and commonly used accessories.

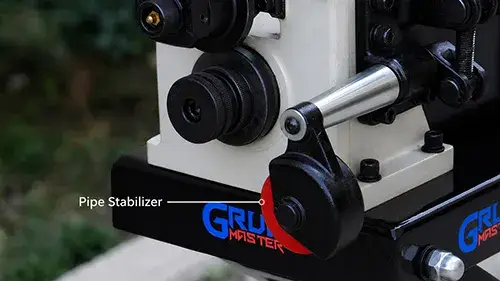

    • Pipe Stabilizer
      Pipe Stabilizer

      The pipe stabilizer helps reduce pipe movement during grooving, keeps rotation smoother, and improves processing stability.

    • Roller Assembly
      Roller Assembly
      • The roller set covers a full 1"–12" range. 1"–8" is suitable for SCH10/40 pipes, while 10"–12" is suitable for SCH10/20 pipes.
      • Made from high-strength hardened steel for long-term grooving applications.
    • Pipe Stand
      Pipe Stand

      The adjustable pipe stand supports different pipe diameters and helps maintain stable rotation and smooth forward/backward movement during grooving.

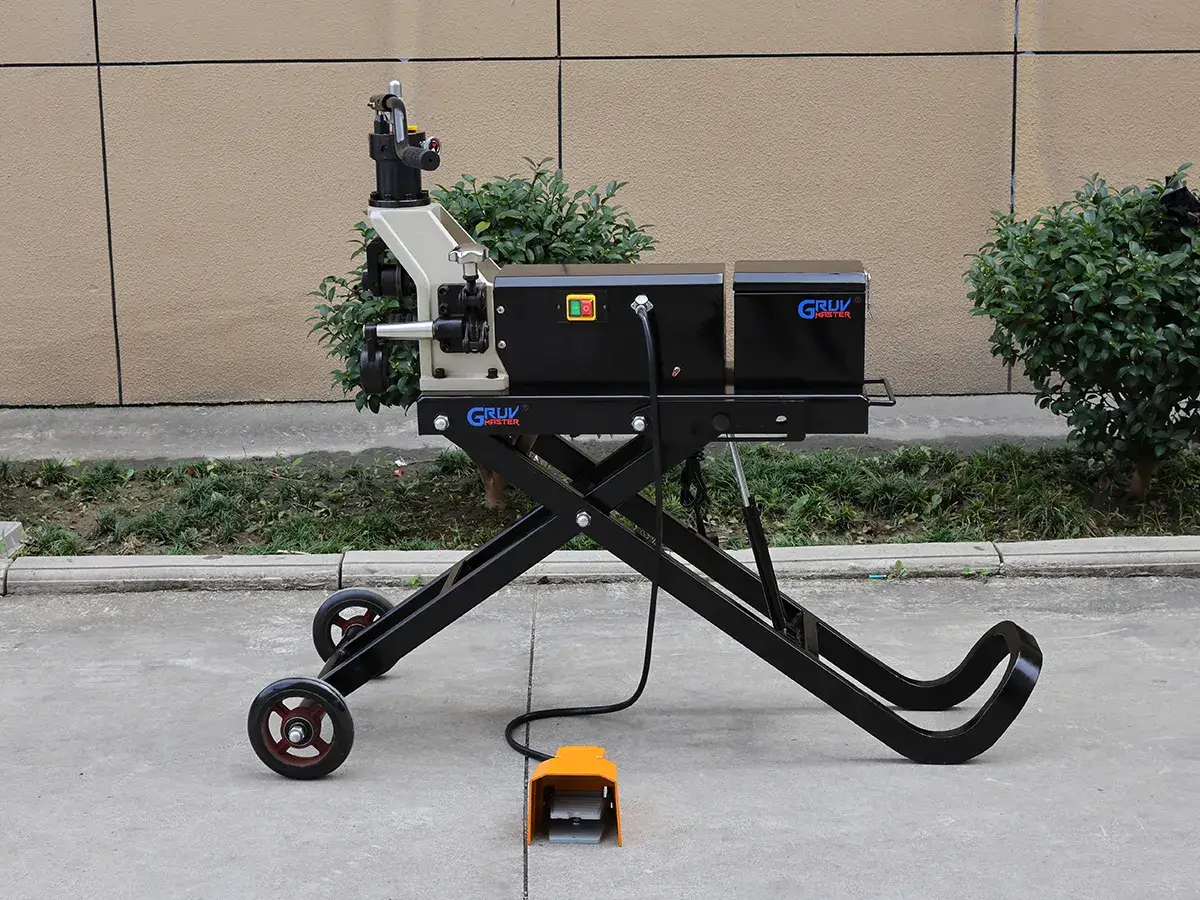

    • Foot Switch
      Foot Switch

      The foot switch controls machine start and stop, allowing the operator to focus on pipe support and groove condition during operation.

More
Standard Roll Sets Specifications
Description Net Weight
Standard Roll Sets Specifications Drive Roll 1"–1 ½" (O.D. 33–48 mm) 1.15 kg
Drive Roll 2"–3" (O.D. 60–89 mm) 1.15 kg
Drive Roll 3 ½"–6" (O.D. 102–168 mm) 1.70 kg
Drive Roll 8"–12" (O.D. 219–324 mm) 1.70 kg
Groove Roll 1"–1 ½" (O.D. 33–48 mm) 0.90 kg
Groove Roll 2"–6" (O.D. 60–168 mm) 0.80 kg
Groove Roll 8"–12" (O.D. 219–324 mm) 0.70 kg
