Hydraulic Roll Groover

These machines are widely used in fire protection systems, HVAC installations, drainage systems, industrial piping, and other applications where efficient pipe installation is required.

3/4"–8" Hydraulic Roll Groover, RG-2T
  • 3/4"–8" Hydraulic Roll Groover, RG-2T
  • 3/4"–8" Hydraulic Roll Groover, RG-2T
  • 3/4"–8" Hydraulic Roll Groover, RG-2T
  • 3/4"–8" Hydraulic Roll Groover, RG-2T
  • 3/4"–8" Hydraulic Roll Groover, RG-2T

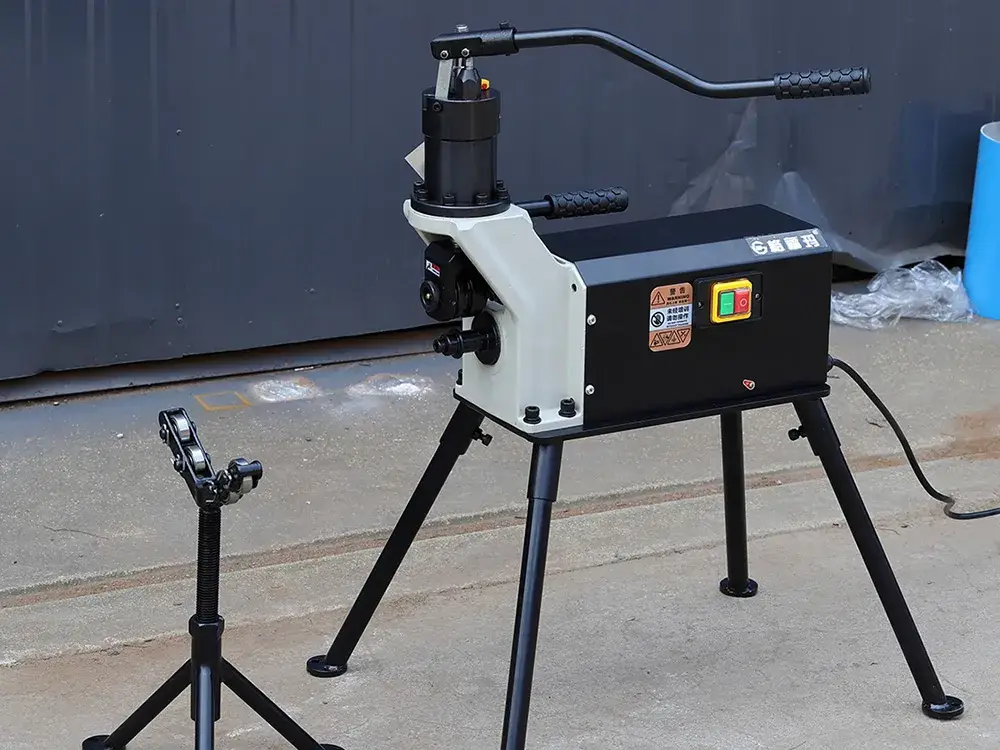

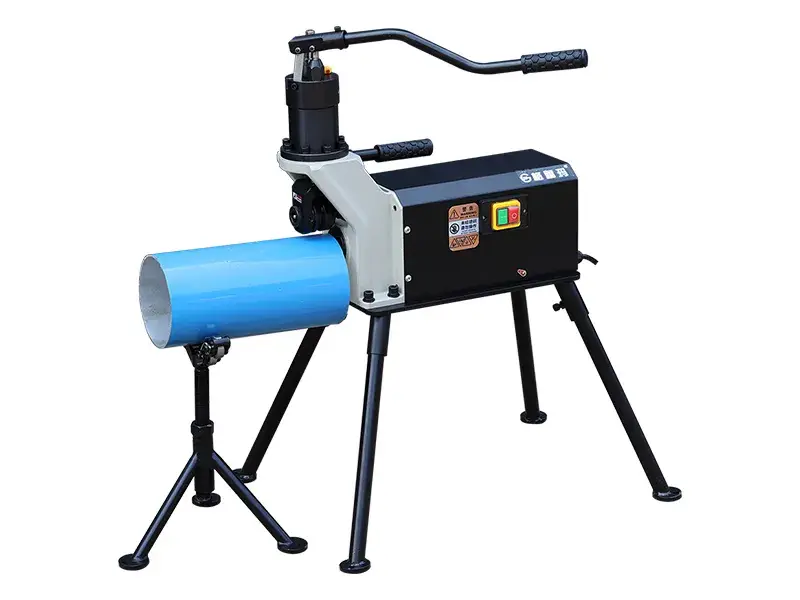

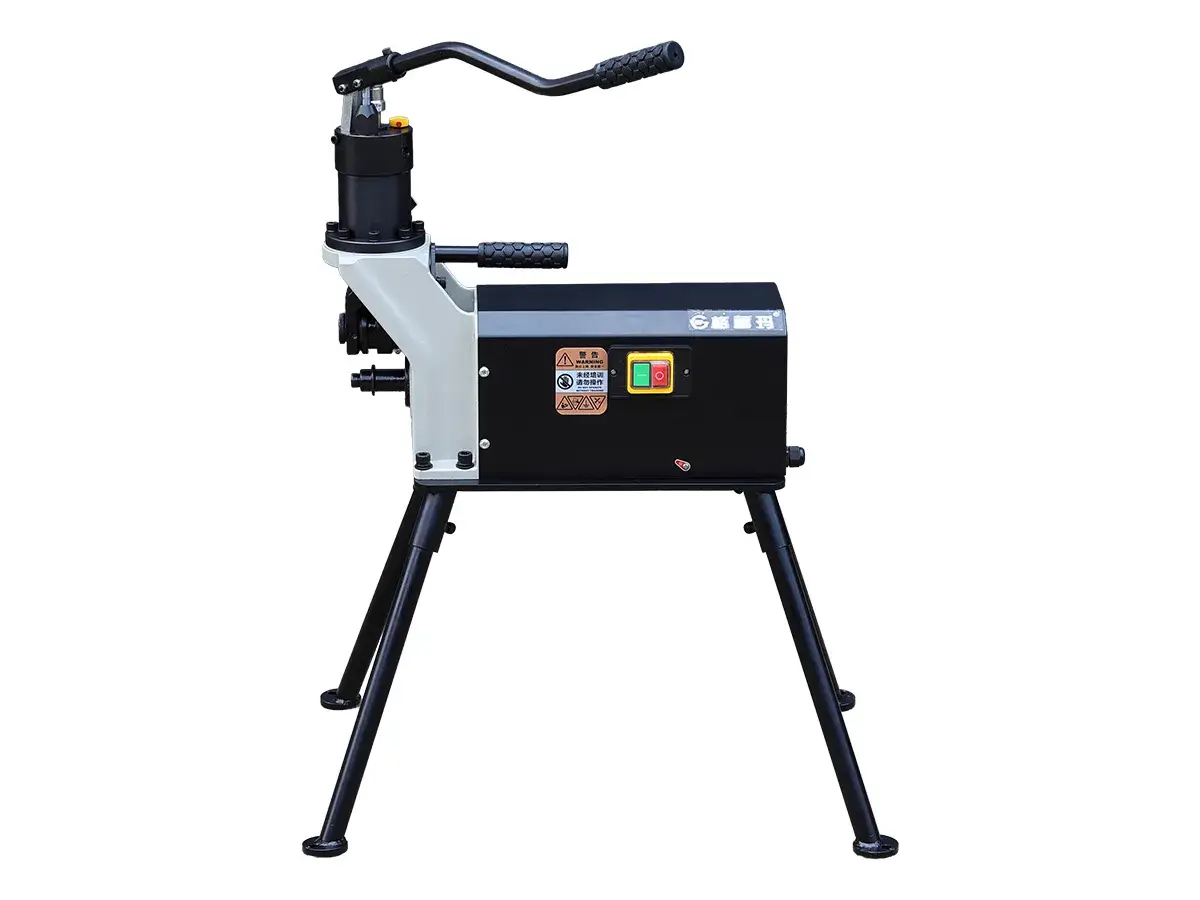

RG-2T 3/4"–8" Hydraulic Roll Groover, Inward and Outward Roll Grooving Machine

RG-2T is a portable hydraulic roll grooving machine for 3/4"–8" carbon steel and stainless-steel pipes. It is suitable for both recessed groove and flared groove processing. The compact design supports on-site installation, maintenance work, and small-batch grooving operations.

  • Capacity Beading: 3/4"–8" (DN20–DN200)
    Grooving: 2"–6" (DN50–DN150)
  • Max. Wall Thickness Aluminum pipe 4 mm;
    Stainless steel pipe 3 mm
  • Applicable Materials Aluminum pipe, Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers
Specifications
Model RG-2T
Applicable Materials Aluminum pipe, Carbon Steel Pipe, Stainless Steel Pipe
Capacity (Beading) 3/4"–8" (DN20–DN200)
Capacity (Grooving) 2"–6" (DN50–DN150)
Power Requirements 220 V / 380 V, 50 / 60 Hz
Max. Wall Thickness Aluminum pipe 4 mm; Stainless steel pipe 3 mm
Spindle Speed 23 RPM
Motor Power 700 W
Packaging Dimensions (L×W×H) 57 × 33 × 67 cm
Gross Weight 53 kg
Features
    • Internal & External Grooving Capability
      Internal & External Grooving Capability

      The roll groover supports both external groove forming and internal flared groove processing by changing roller sets, suitable for different pipe connection requirements.

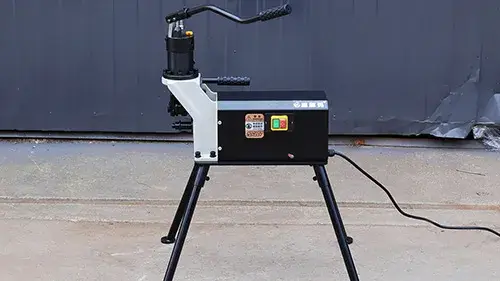

    • Lightweight Portable Design
      Lightweight Portable Design

      With compact structure with detachable handle design, it supports single-person handling and is suitable for on-site operation.

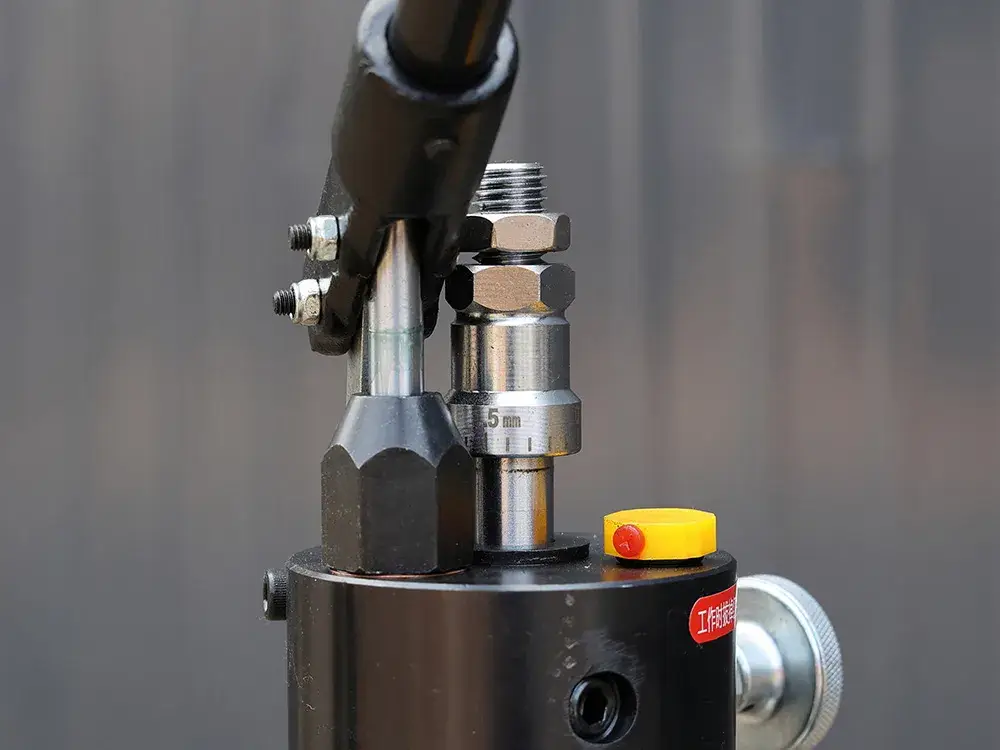

    • Hydraulic Feed System
      Hydraulic Feed System

      Integrated hydraulic feed system with depth adjustment structure helps maintain consistent groove dimensions during operation.

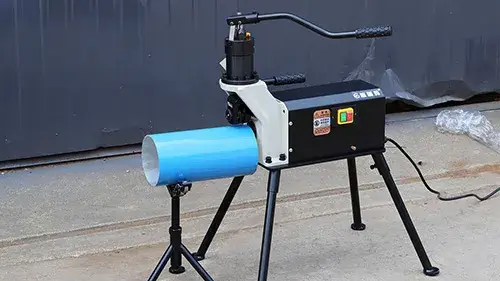

    • Stable Drive System
      Stable Drive System

      Gear reduction motor drive provides smooth operation and supports continuous processing.

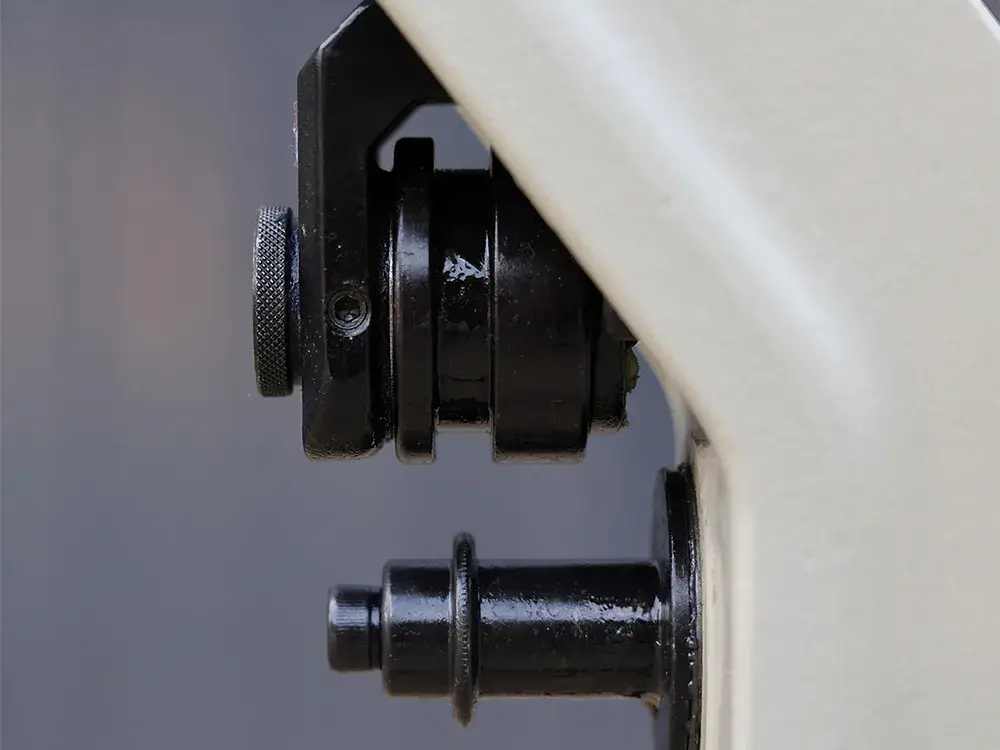

    • Roller Assembly Options
      Roller Assembly Options

      Multiple roller configurations are available to support different pipe sizes and processing requirements, expanding application flexibility.

More
Standard Roll Sets Specifications
Description Net Weight
Upper Drive Roll ¾"–1 ¼" (O.D. 26.7–42.2 mm) 1.15 kg
Upper Drive Roll 1 ½"–2" (O.D. 48.3–60.3 mm) 1.15 kg
Upper Drive Roll 1 ½"–8" (O.D. 48.3–219.1 mm) 1.70 kg
Groove Roll 2"–6" (O.D. 60.3–168.3 mm) 1.70 kg
Lower Drive Roll ¾"–1 ¼" (O.D. 26.7–42.2 mm) 1.50 kg
Lower Drive Roll 1 ½"–2" (O.D. 48.3–60.3 mm) 1.50 kg
Lower Drive Roll 1 ½"–8" (O.D. 48.3–219.1 mm) 1.70 kg
Drive Roll 2"–6" (O.D. 60.3–168.3 mm) 1.70 kg
