Groove Cutting Machines

It supports pipe sizes from 2" to 32", and is suitable for grooving operations on pipes with SCH40 or heavier wall thickness.

2"–12" Groove Cutting Machine, CG-2X
  • 2"–12" Groove Cutting Machine, CG-2X
  • 2"–12" Groove Cutting Machine, CG-2X
  • 2"–12" Groove Cutting Machine, CG-2X
  • 2"–12" Groove Cutting Machine, CG-2X

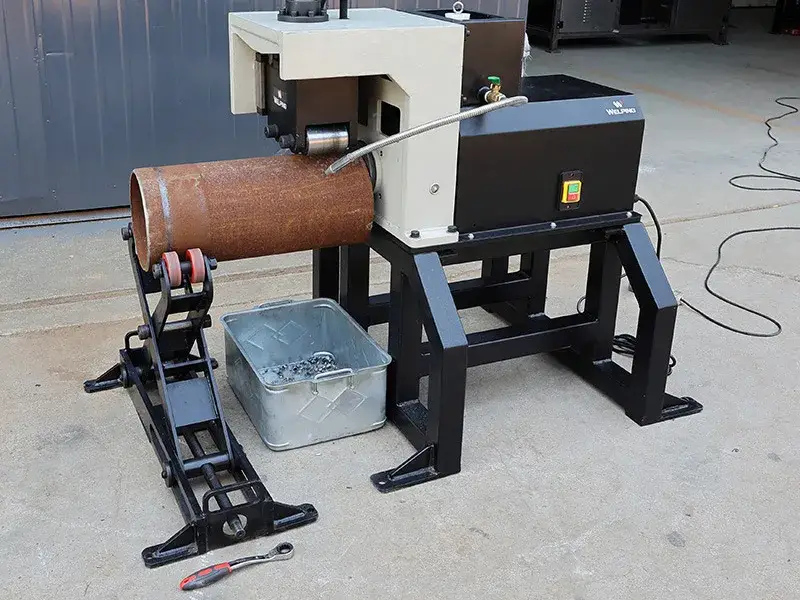

CG-2X 2"–12" Groove Cutting Machine

The compact floor-standing groove cutting machine is designed for efficient grooving operations on steel pipes used in fire protection, water supply, and HVAC systems. The hydraulic groove cutter combines adjustable settings with semi-automatic operation for stable and efficient pipe processing across different project requirements.

  • Capacity 2"–12" (O.D. 60.3–323.9 mm)
  • Max. Wall Thickness 35 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers PDF
Specifications
Model CG-2X
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity 2"–12" (O.D. 60.3–323.9 mm)
Motor Power 1100 W (1Ph) / 750 W (3Ph)
Spindle Speed 23 RPM
Power Requirements 220 V / 380 V, 50 / 60 Hz
Max. Wall Thickness 35 mm
Packaging Dimensions (L×W×H) 122 × 91 × 140 cm
Gross Weight 340 kg
Features
    • Hydraulic System
      Hydraulic System
      • Split design of oil pump and cylinder ensures stable operation and extended service life.
      • Precision-machined cylinder provides accurate dimensions, while the hardened piston rod improves durability.
      • Equipped with high-quality sealing components for reliable performance.
    • Cutting Blade & Roller System
      Cutting Blade & Roller System
      • Applicable models: CG-2X (2"–12"), CG-4X (8"–32")
      • Pipe range: 2"–12" (DN50–DN300, ⌀60–⌀325)
      • High-strength steel cutting components with special heat treatment for long-term heavy-duty operation
    • Operation & Machine Structure
      Operation & Machine Structure
      • Hydraulic system clamps the pipe securely.
      • Cutting feed is controlled manually for precise groove forming.
      • Thickened welded steel base and machine body provide strong rigidity for heavy-load operation.
      • Upgraded roller system, high-power motor, and reinforced gearbox support stable grooving performance.
    • Pipe Support System
      Pipe Support System
      • Designed for heavy-duty pipe support applications.
      • Equipped with a screw rod adjustment operated by a ratchet wrench.
      • Enlarged reinforced nylon roller heads ensure smooth pipe rotation.
      • Height adjustment supports different pipe sizes and working conditions.
More
Standard Equipment
Description Net Weight
Drive Roll 2"–3" (O.D. 60.3–88.9 mm) 5.00 kg
Drive Roll 3 ½"–12" (O.D. 101.6–323.9 mm) 6.70 kg
Cutter Wheel 2"–3 ½" (O.D. 60.3–101.6 mm) 0.20 kg
Cutter Wheel 4"–6" (O.D. 114.3–168.3 mm) 0.20 kg
Cutter Wheel 8" (O.D. 219.1 mm) 0.20 kg
Cutter Wheel 10"–20" (O.D. 273.0–508.0 mm) 0.20 kg
Stabilizer 2"–6" 1.20 kg
Stabilizer 8"–12" 1.20 kg
Pipe Stand 2"–12" 33.00 kg
Foot Switch 1.50 kg
