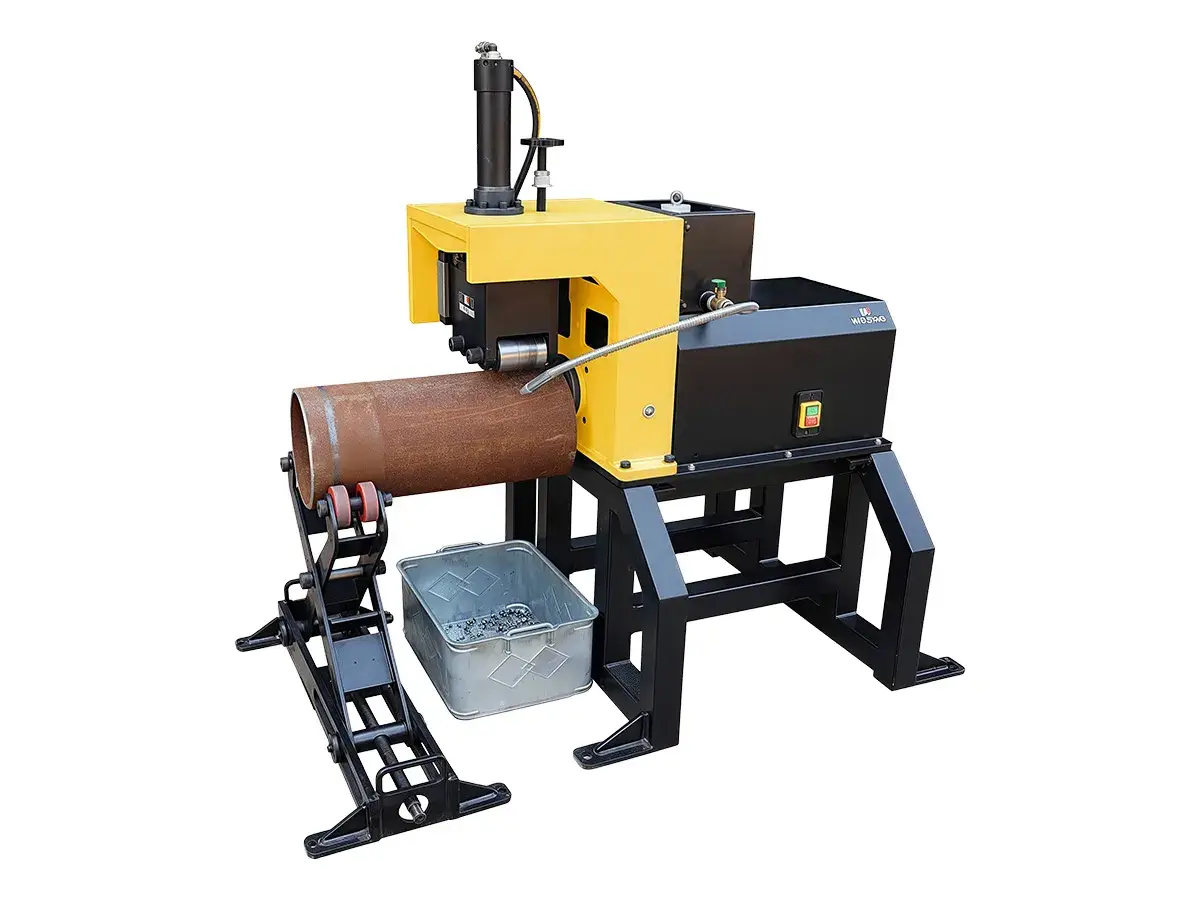

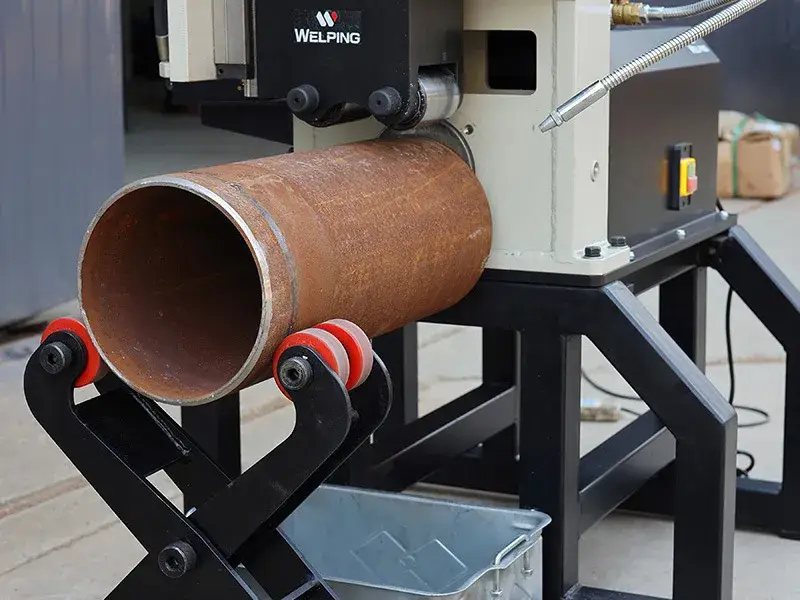

CG-4X 8"–32" Groove Cutter

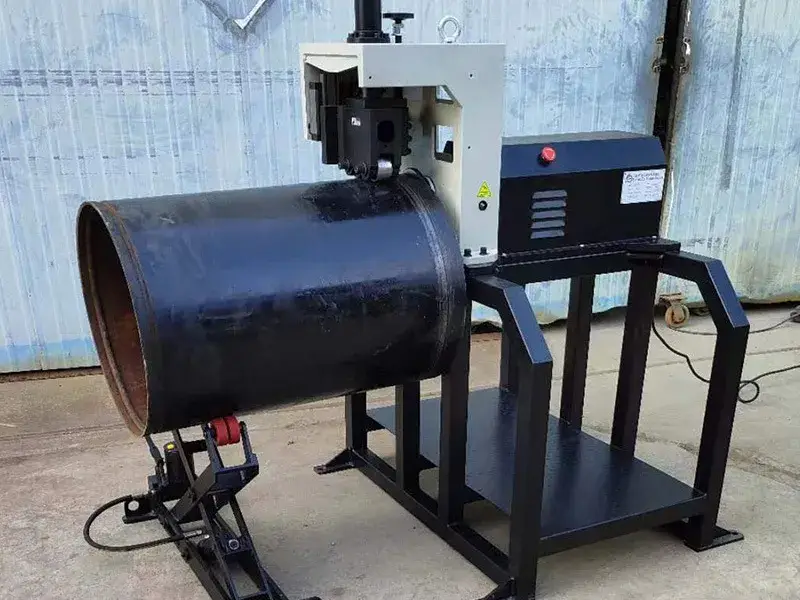

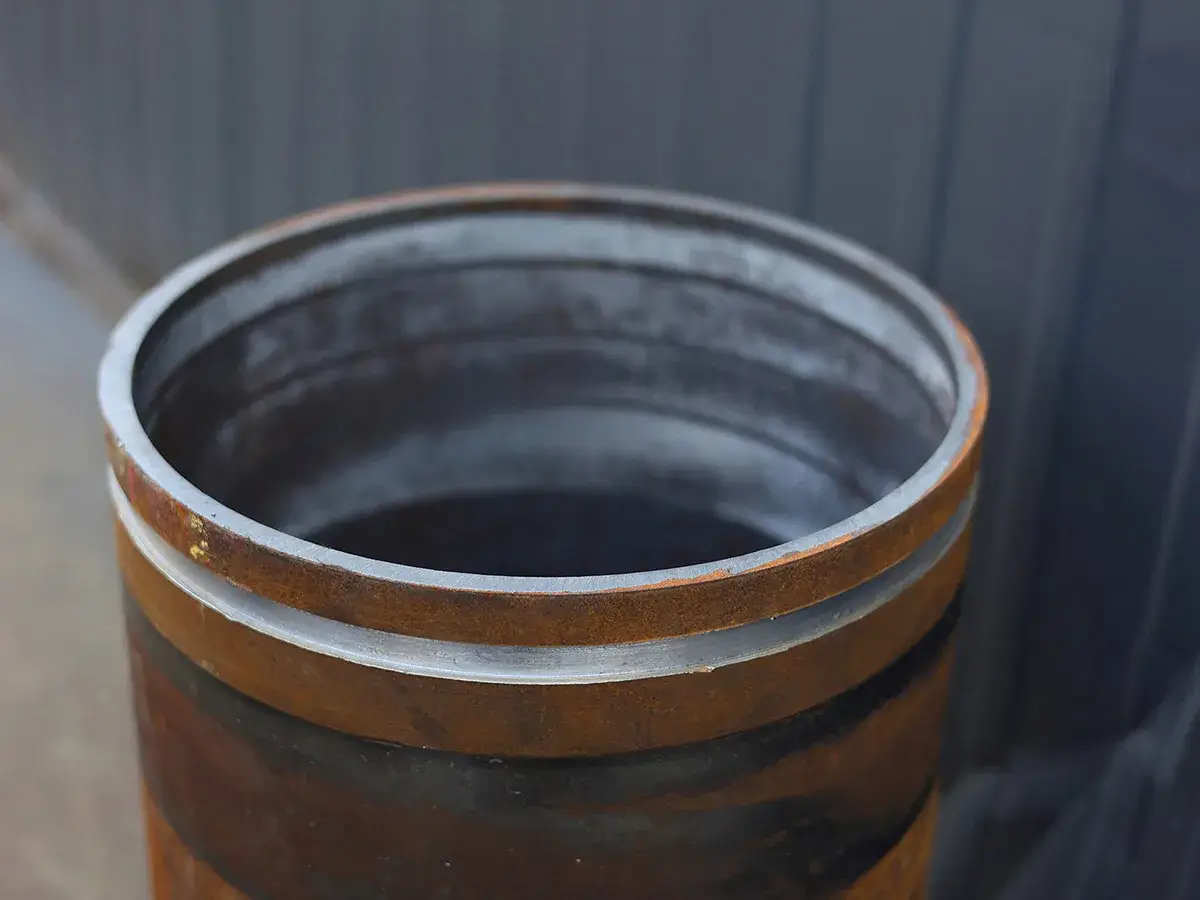

CG-4X is a compact floor-standing groove cutting machine designed for grooving 8"–32" outer diameter SCH40 and above pipes, suitable for a wide range of pipe materials. The semi-automatic groove cutter is widely used in fire protection, water supply, and HVAC systems.

  • Capacity 8"–32"
  • Max. Wall Thickness 35 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe

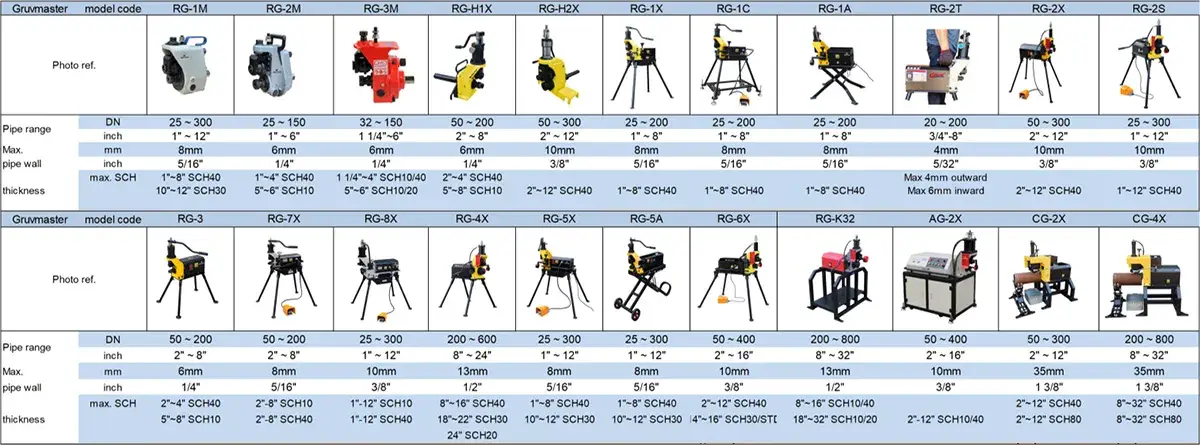

Request a Quote Comparison of Roll Groovers PDF
Specifications
Model CG-4X
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity 8"–32"
Motor Power 2200 W
Spindle Speed 19 RPM
Power Requirements 50 / 60 Hz, Three Phase
Max. Wall Thickness 35 mm
Packaging Dimensions (L×W×H) 122 × 122 × 185 cm
Gross Weight 526 kg
Features
    • Hydraulic System

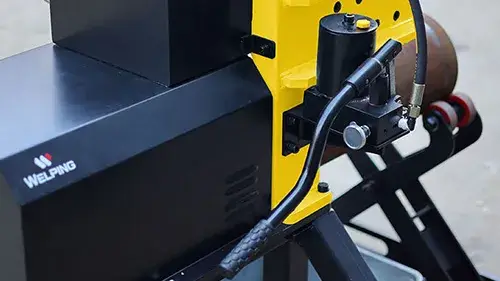

      Hydraulic System
      • Split oil pump and cylinder design with well-organized structure and stable operation for longer service life.
      • Precision-machined cylinder ensures accurate dimensions, while the hardened piston rod improves durability.
      • Equipped with high-quality sealing components for reliable performance.
    • Cutting Blade & Roller System

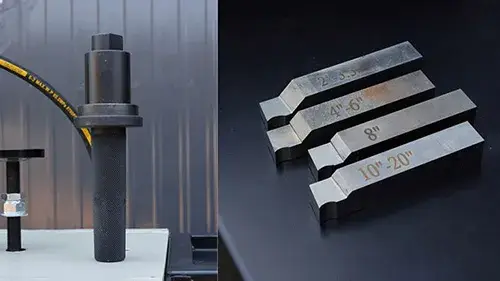

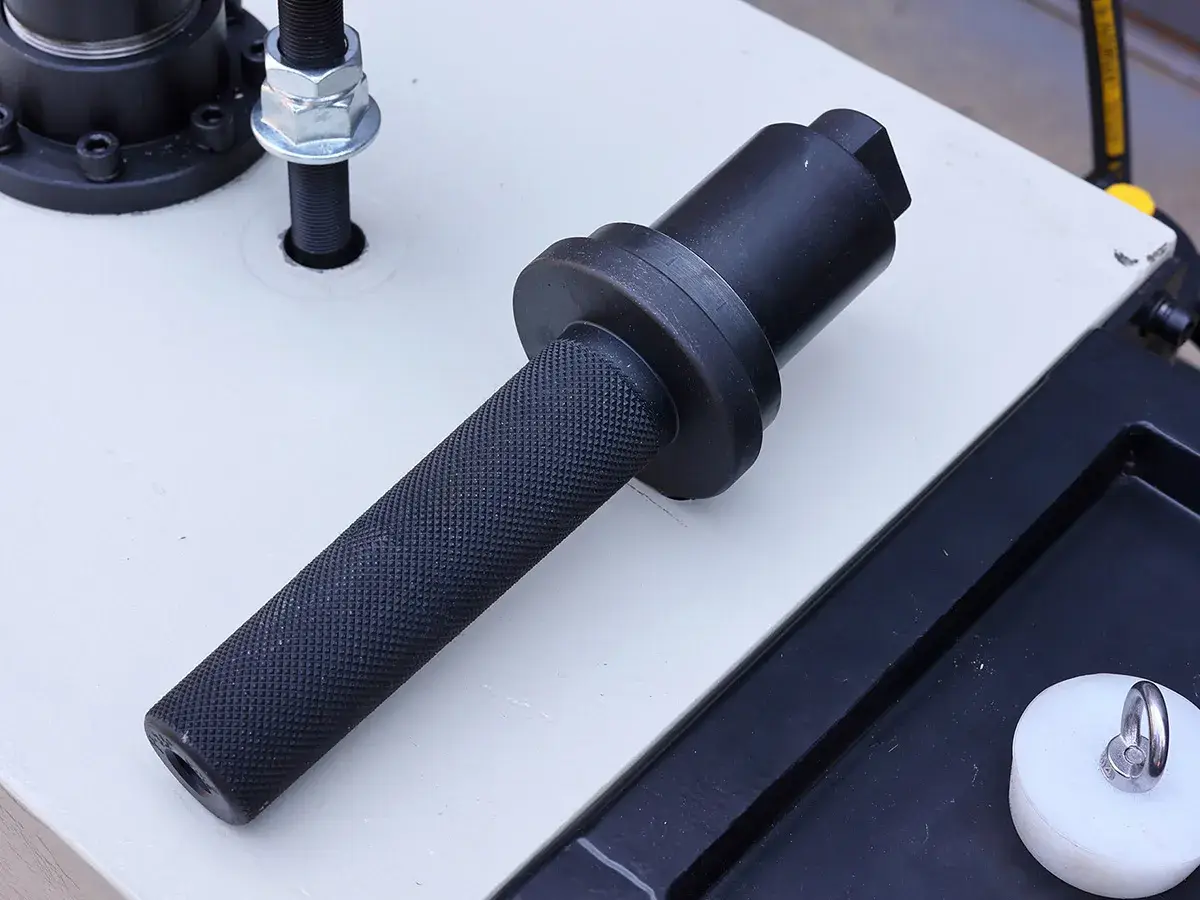

      Cutting Blade & Roller System
      • Applicable model: CG-4X (8"–32")
      • Pipe range: 8"–32" (DN200–DN800, ⌀ 219–⌀ 813)
      • High-strength steel cutting components with hardened treatment for long-term heavy-duty operation
    • Operation & Machine Structure

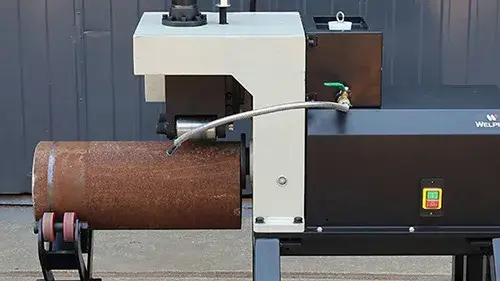

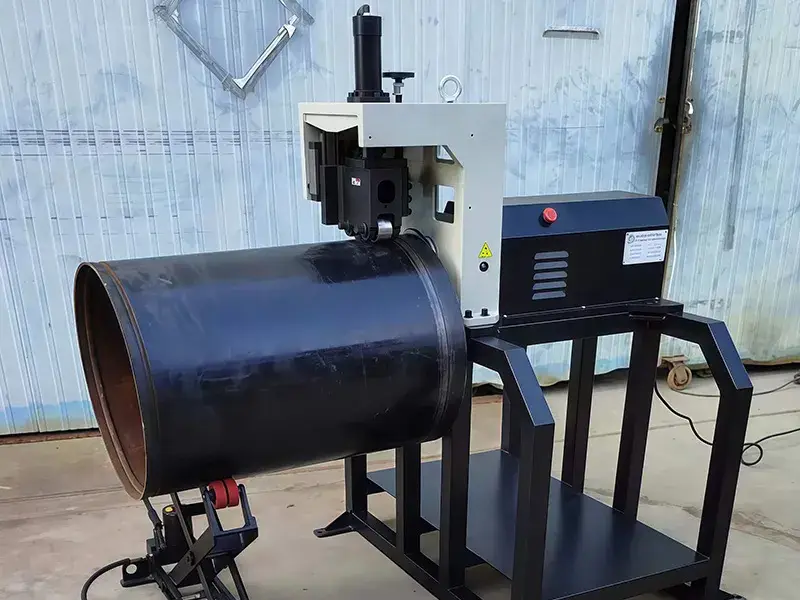

      Operation & Machine Structure
      • Hydraulic system clamps the pipe securely.
      • Cutting feed is controlled manually for precise grooving operation.
      • Thickened welded steel base and machine body provide strong rigidity for heavy-load working conditions.
      • High-power motor, reinforced gearbox, and upgraded roller system support stable operation.
    • Pipe Support System

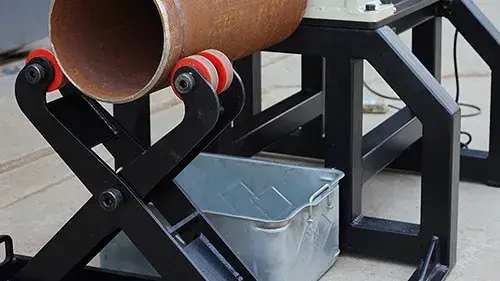

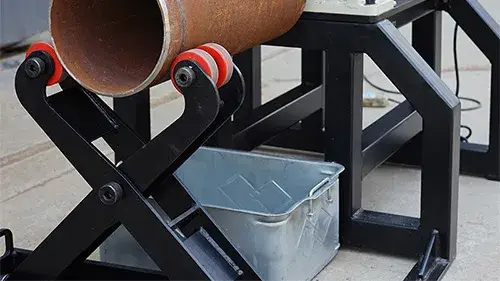

      Pipe Support System
      • Designed for heavy-duty pipe support applications, it uses a hydraulic pipe support system for stable positioning.
      • Enlarged reinforced nylon roller heads ensure smooth pipe rotation.
      • Height adjustment supports different pipe sizes and working conditions.
More
Standard Equipment
Description Net Weight
Drive Roll 8"–32" (O.D. 219.1–812.8 mm) 5.00 kg
Cutter Wheel 8" (O.D. 219.1 mm) 6.70 kg
Cutter Wheel 10"–20" (O.D. 273.0–508.0 mm) 0.20 kg
Cutter Wheel 22"–32" (O.D. 558.8–812.8 mm) 0.20 kg
Stabilizer 8"–12" 0.20 kg
Stabilizer 14"–16" 0.20 kg
Stabilizer 18"–24" 1.20 kg
Stabilizer 26"–32" 1.20 kg
