Hydraulic Roll Groover

These machines are widely used in fire protection systems, HVAC installations, drainage systems, industrial piping, and other applications where efficient pipe installation is required.

2"–12" Hydraulic Roll Groover, RG-2X
  • 2"–12" Hydraulic Roll Groover, RG-2X
  • 2"–12" Hydraulic Roll Groover, RG-2X
  • 2"–12" Hydraulic Roll Groover, RG-2X
  • 2"–12" Hydraulic Roll Groover, RG-2X
  • 2"–12" Hydraulic Roll Groover, RG-2X
  • 2"–12" Hydraulic Roll Groover, RG-2X

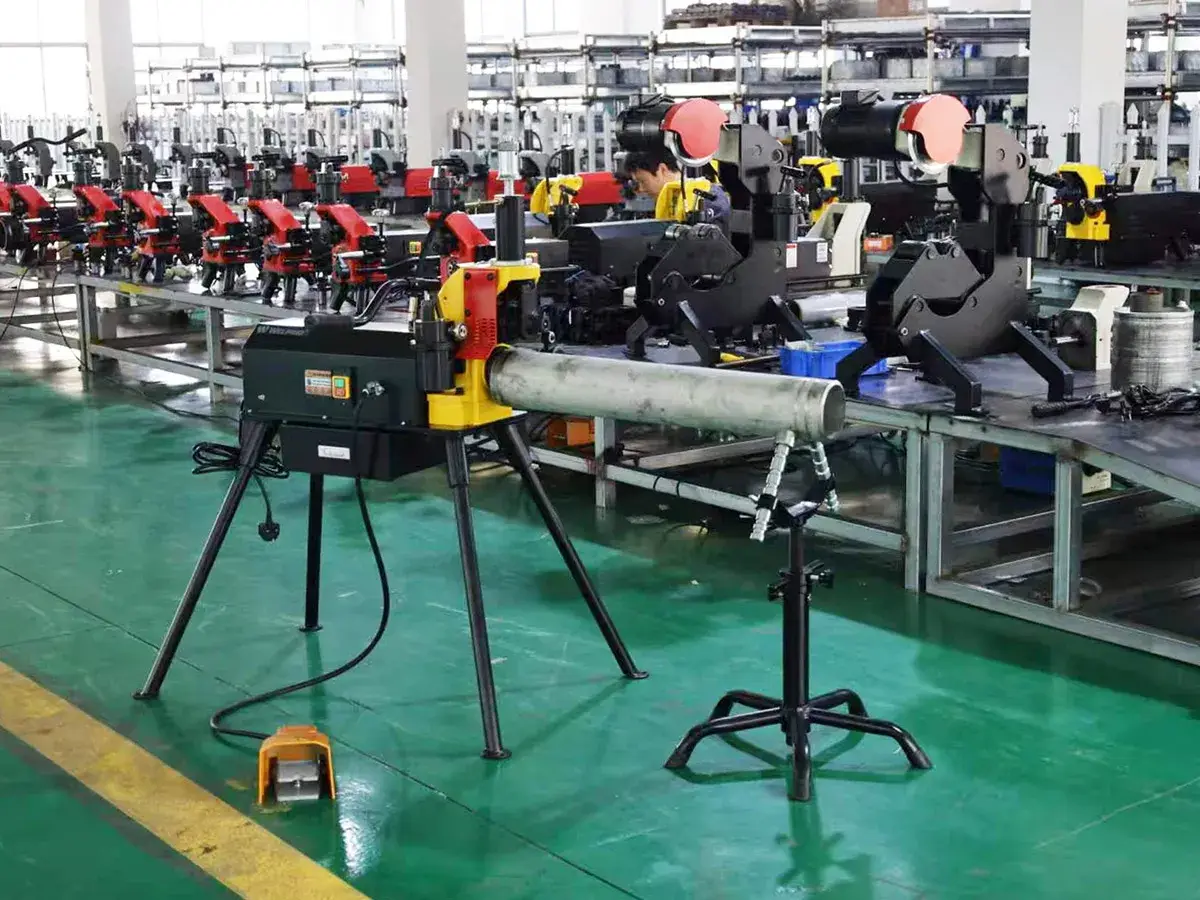

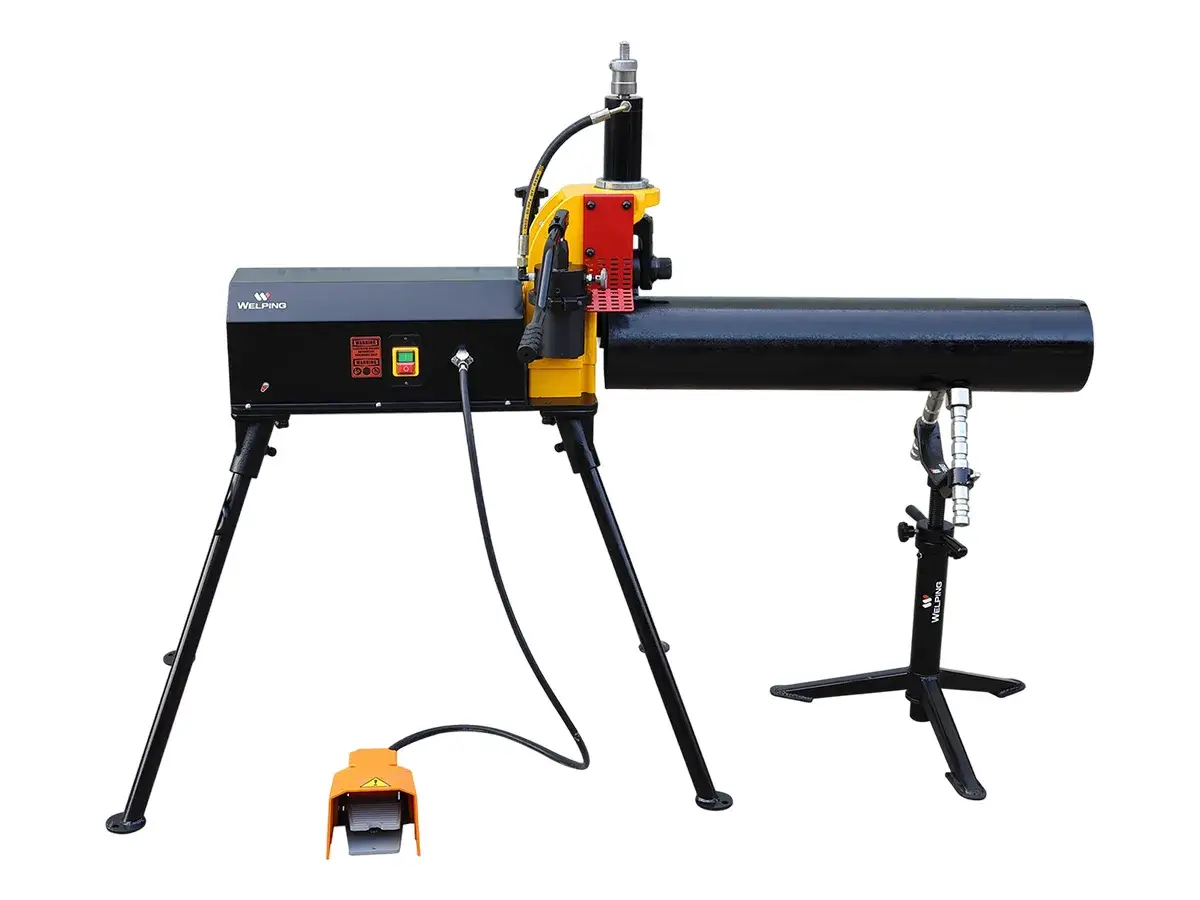

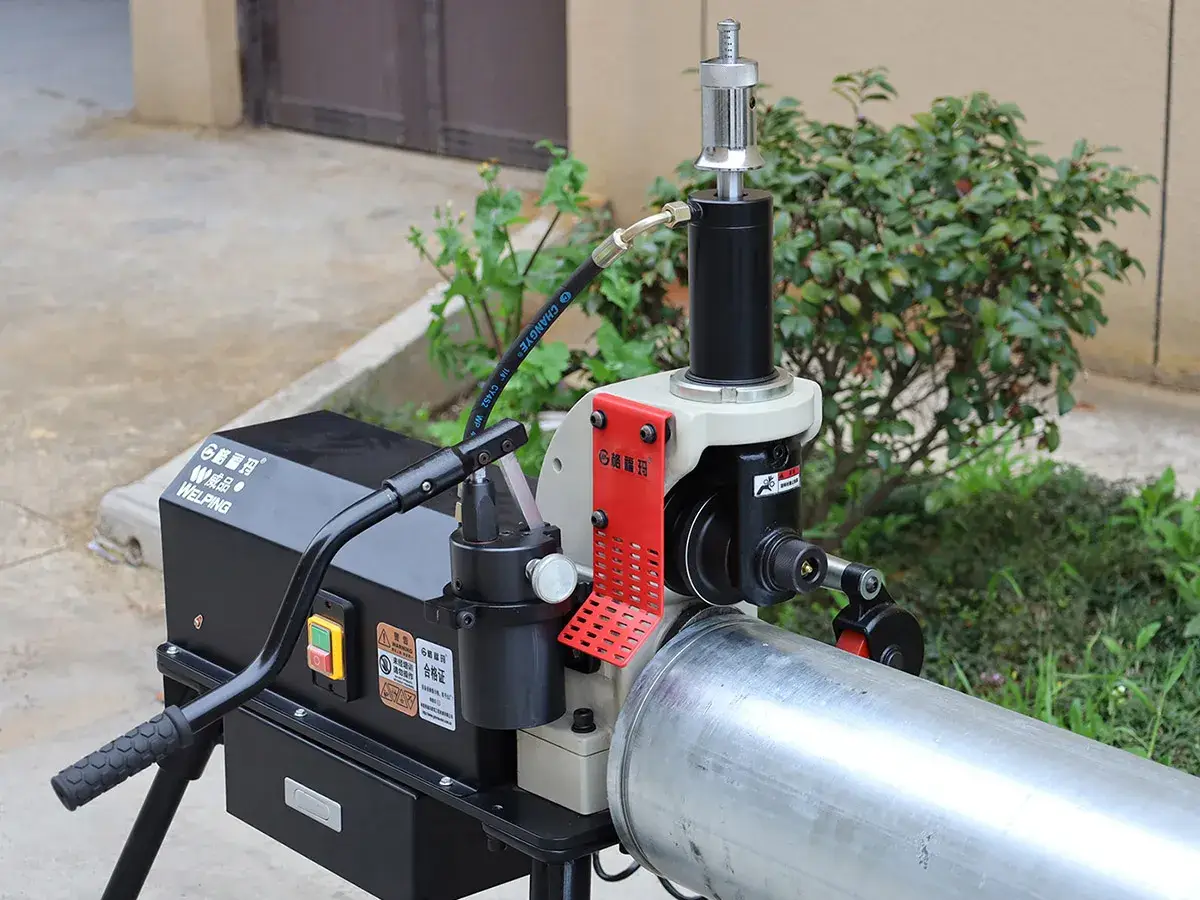

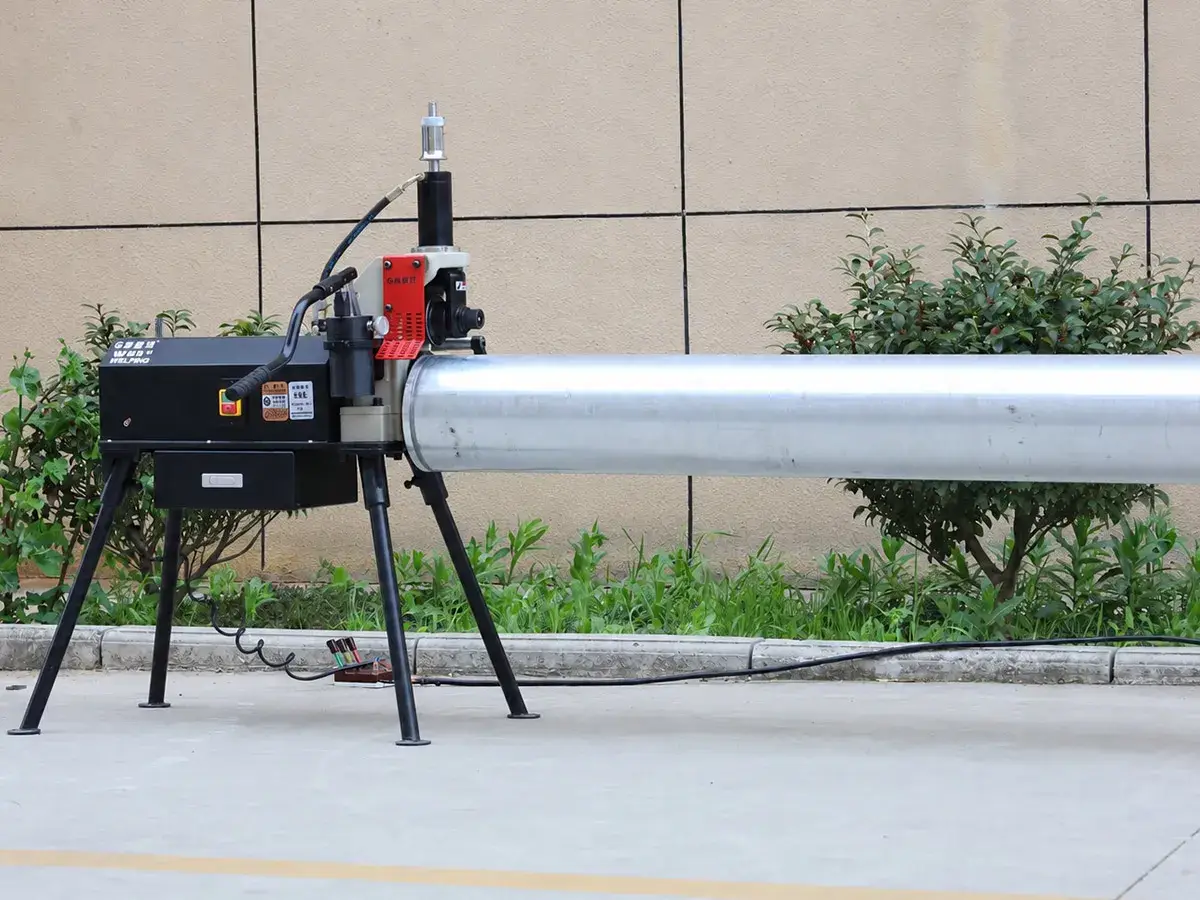

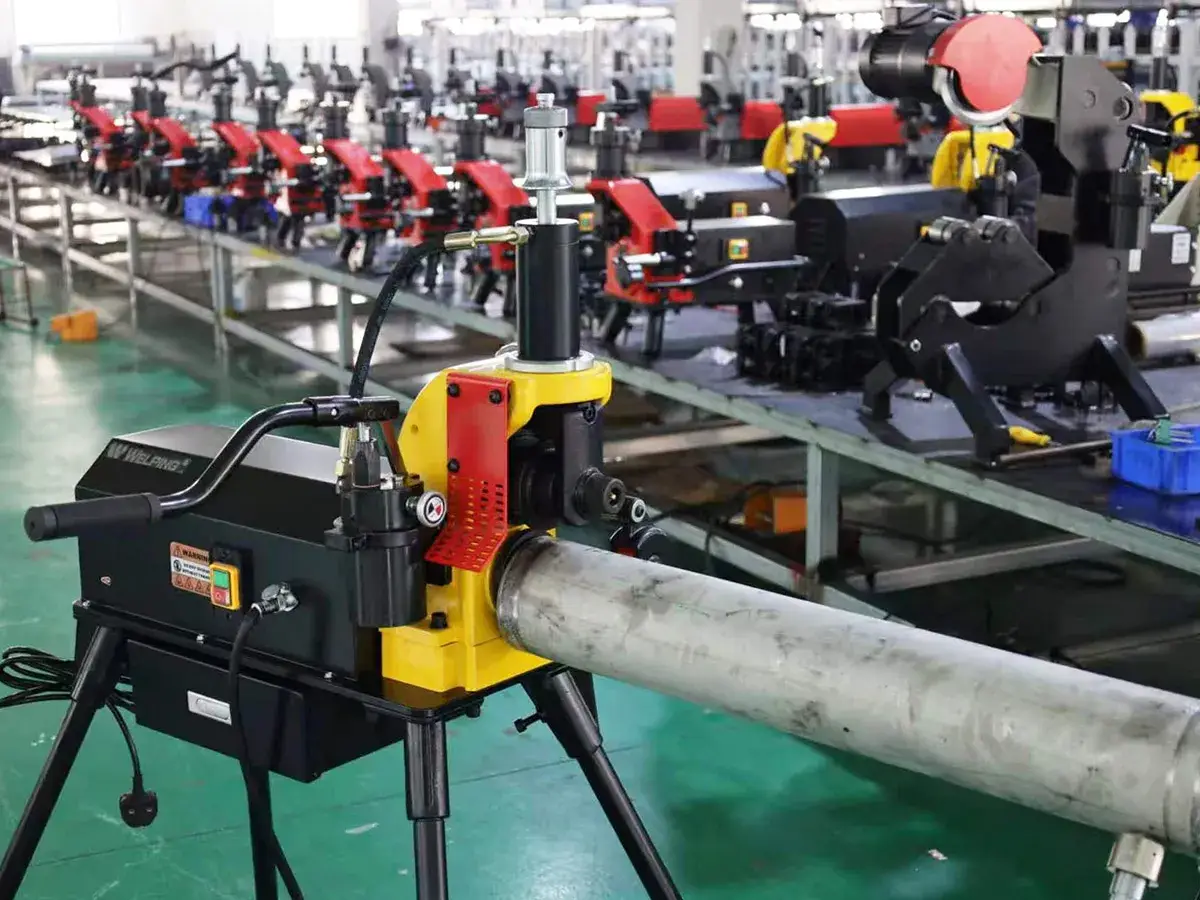

RG-2X 2"–12" Hydraulic Roll Groover

RG-2X is a hydraulic roll groover for 2"–12" pipes that integrates the motor, hydraulic feed pump, and foot switch into one unit. The fully enclosed hydraulic system, interlocking roller assembly, and pipe stabilizer deliver reliable grooving performance for both workshop production and on-site installation.

  • Capacity 2"–12" Schedule 10/40
  • Max. Wall Thickness 10 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers
Specifications
Model RG-2X
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity 2"–12" Schedule 10/40
Max. Wall Thickness 10 mm
Spindle Speed 23 RPM
Motor Power 1100 W
Packaging Dimensions (L×W×H) 82 × 47 × 90 cm
Gross Weight 147 kg
Power System Components of Roll Grooving Machine

Motor, hydraulic valve

Features

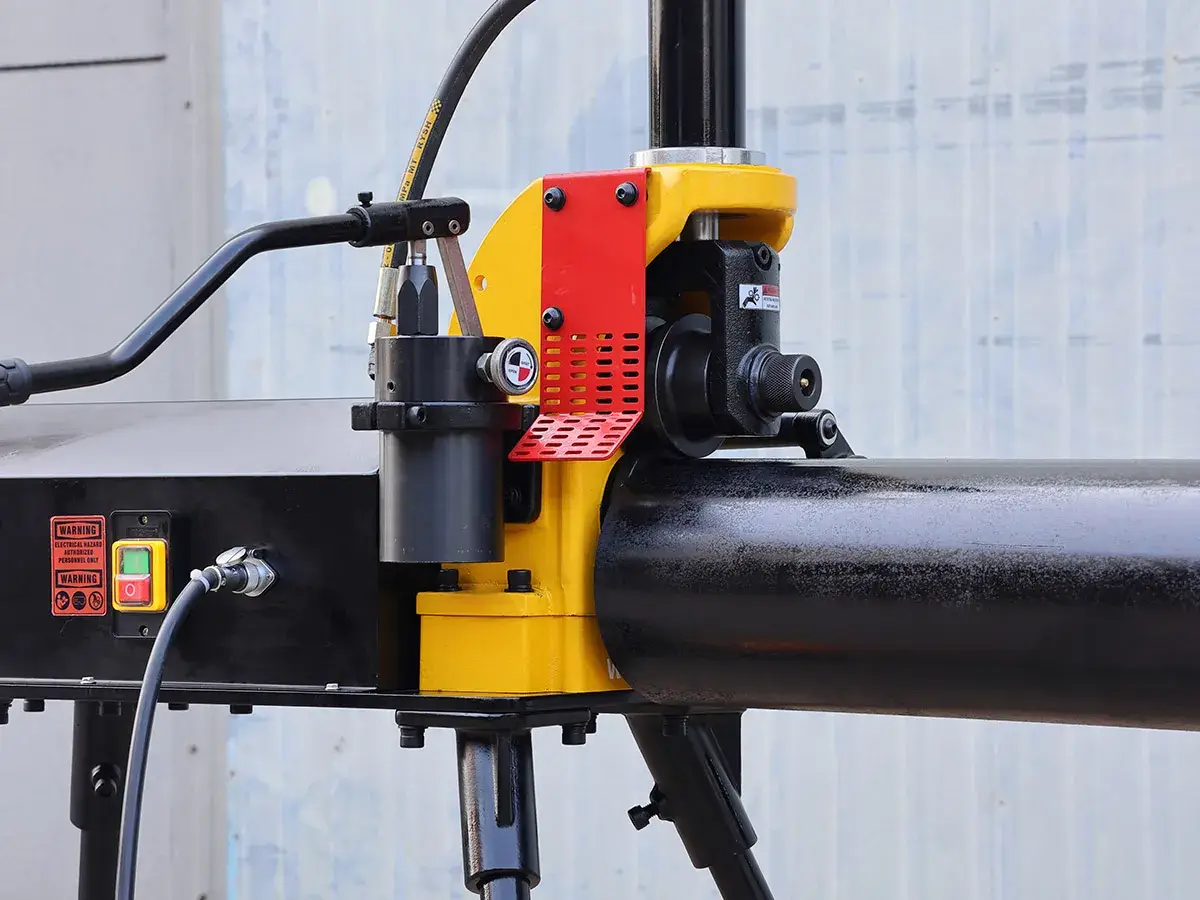

    • Hydraulic Pump
      Hydraulic Pump
      • Separate hydraulic pump and cylinder design with a fully enclosed hydraulic system that helps keep dust out, reduces hydraulic oil replacement, and extends pump service life.
      • Built-in graduated depth adjustment screw provides clear indication and convenient operation.

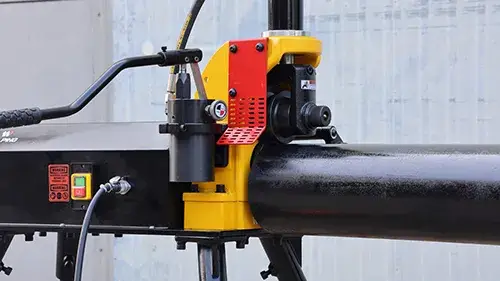

    • Cast Iron Housing
      Cast Iron Housing
      • Thick cast iron housing provides excellent rigidity and resists deformation under heavy workloads.
      • Custom machine colors are available.

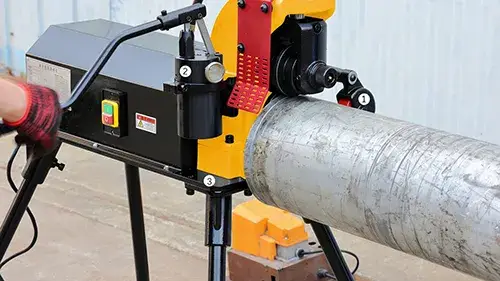

    • Base & Components
      Base & Components
      • Equipped with a pipe stabilizer, pipe stand, and fully enclosed hydraulic pump.
      • Integrated steel base offers high strength, long service life, and excellent resistance to deformation.
    • Roller Assembly
      Roller Assembly
      • Standard roller sizes: 2"–3", 3½"–6", and 8"–12".
      • The drive roller and groove roller feature an interlocking design that helps maintain a consistent sealing surface length.
      • High-strength hardened steel rollers are suitable for long-term grooving applications.
    • Pipe Stand
      Pipe Stand
      • Adjustable pipe stand accommodates different pipe diameters with adjustable working height.
      • It supports smooth pipe rotation and forward/backward movement during grooving.
      • The five-leg stand provides stable support for on-site operation.
    • Foot Switch
      Foot Switch

      The foot switch controls its start and stop functions, so the operator can focus on pipe support and groove alignment throughout the grooving process.

More
Standard Roll Sets Specifications
Description Net Weight
Standard Roll Sets Specifications Drive Roll 2"–3" (O.D. 60–89 mm) 1.30 kg
Drive Roll 3 ½"–6" (O.D. 101–168 mm) 1.30 kg
Drive Roll 8"–12" (O.D. 219–324 mm) 1.40 kg
Groove Roll 2"–3" (O.D. 60–89 mm) 0.45 kg
Groove Roll 3 ½"–6" (O.D. 102–168 mm) 0.45 kg
Groove Roll 8"–12" (O.D. 219–324 mm) 0.45 kg
Optional Anti-Flare Groove Roll Specifications
Description Net Weight
Anti-Flare Groove Roll 2"–3" (O.D. 60.3–88.9 mm) for SCH5/10 0.50 kg
Anti-Flare Groove Roll 3 ½"–6" (O.D. 101.6–168.3 mm) for SCH5/10 0.50 kg
Anti-Flare Groove Roll 8"–12" (O.D. 219.1–323.9 mm) for SCH5/10 0.50 kg
