Hydraulic Roll Groover

These machines are widely used in fire protection systems, HVAC installations, drainage systems, industrial piping, and other applications where efficient pipe installation is required.

1"–12" Hydraulic Roll Groover, RG-2S
  • 1"–12" Hydraulic Roll Groover, RG-2S
  • 1"–12" Hydraulic Roll Groover, RG-2S
  • 1"–12" Hydraulic Roll Groover, RG-2S
  • 1"–12" Hydraulic Roll Groover, RG-2S
  • 1"–12" Hydraulic Roll Groover, RG-2S

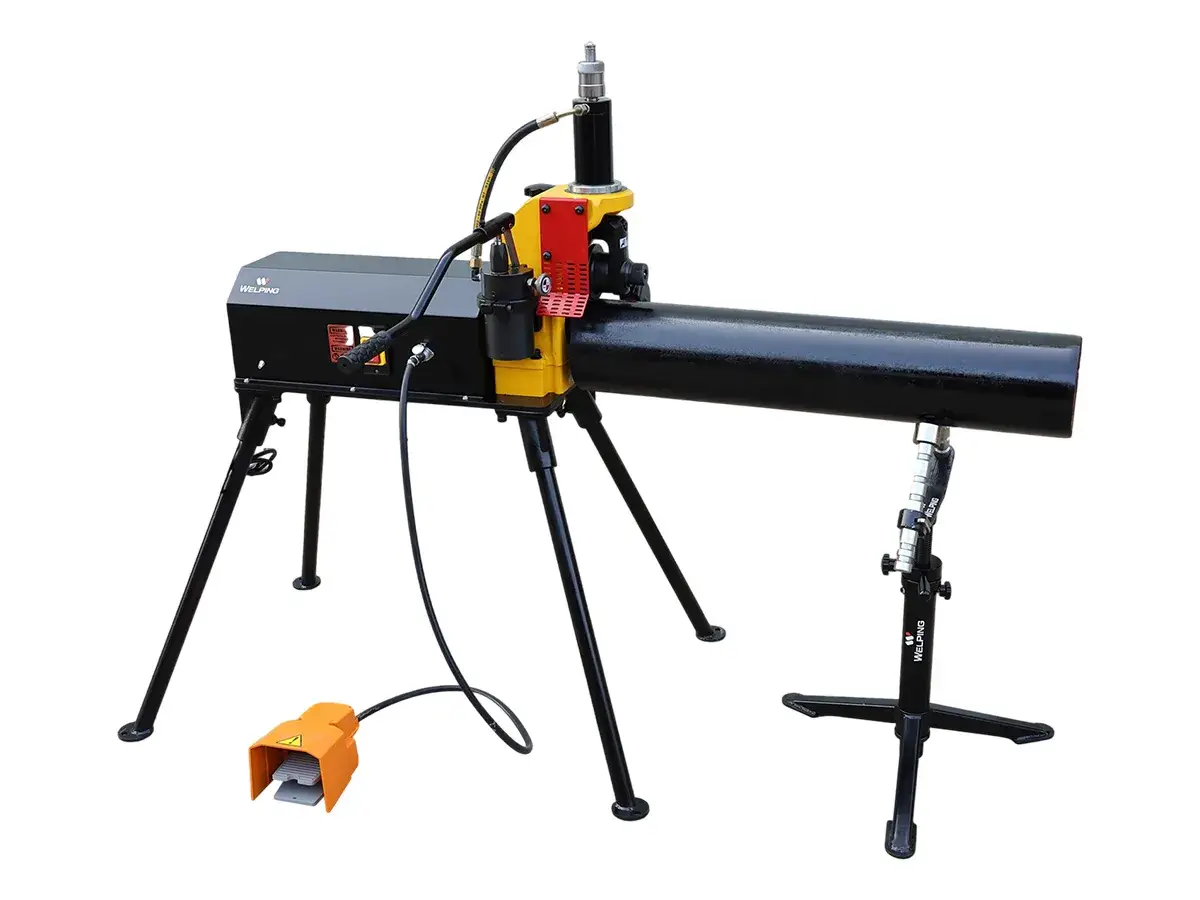

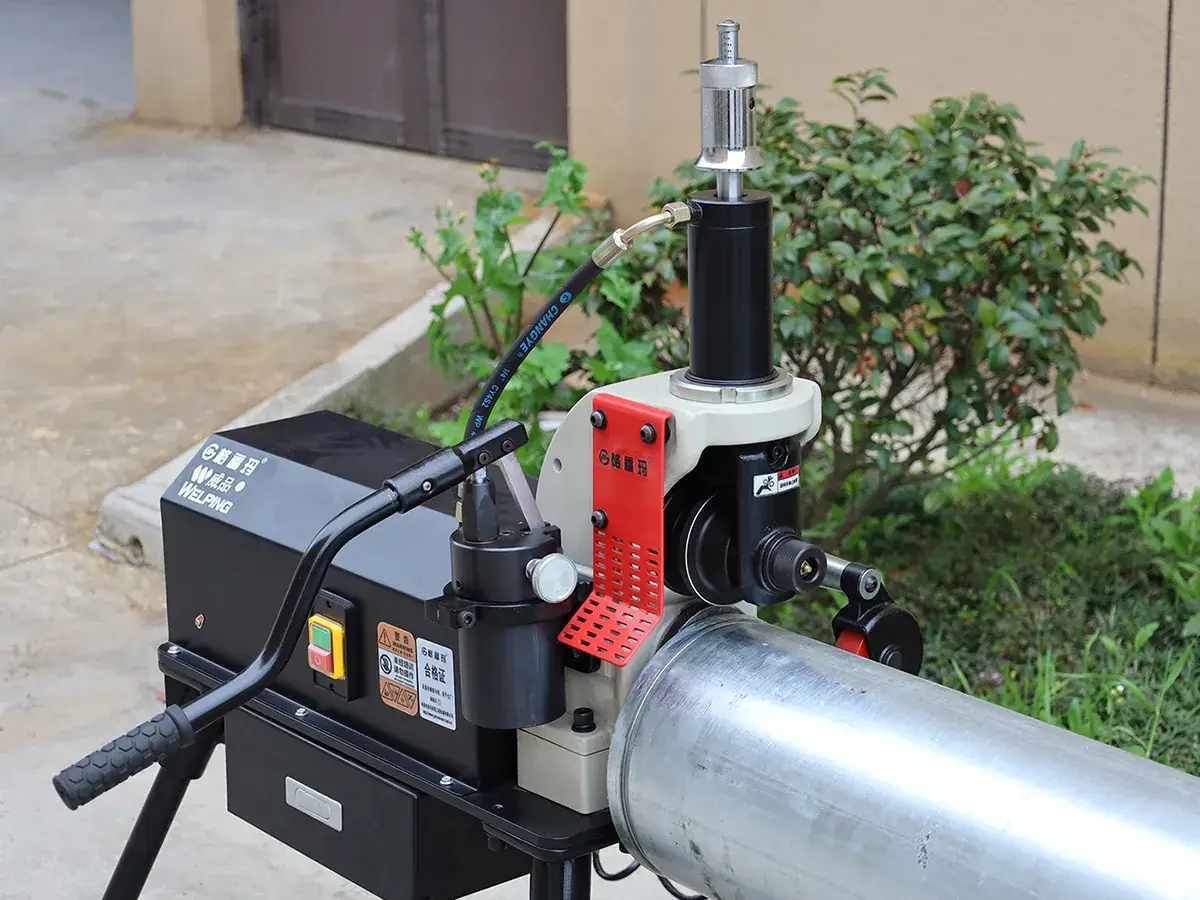

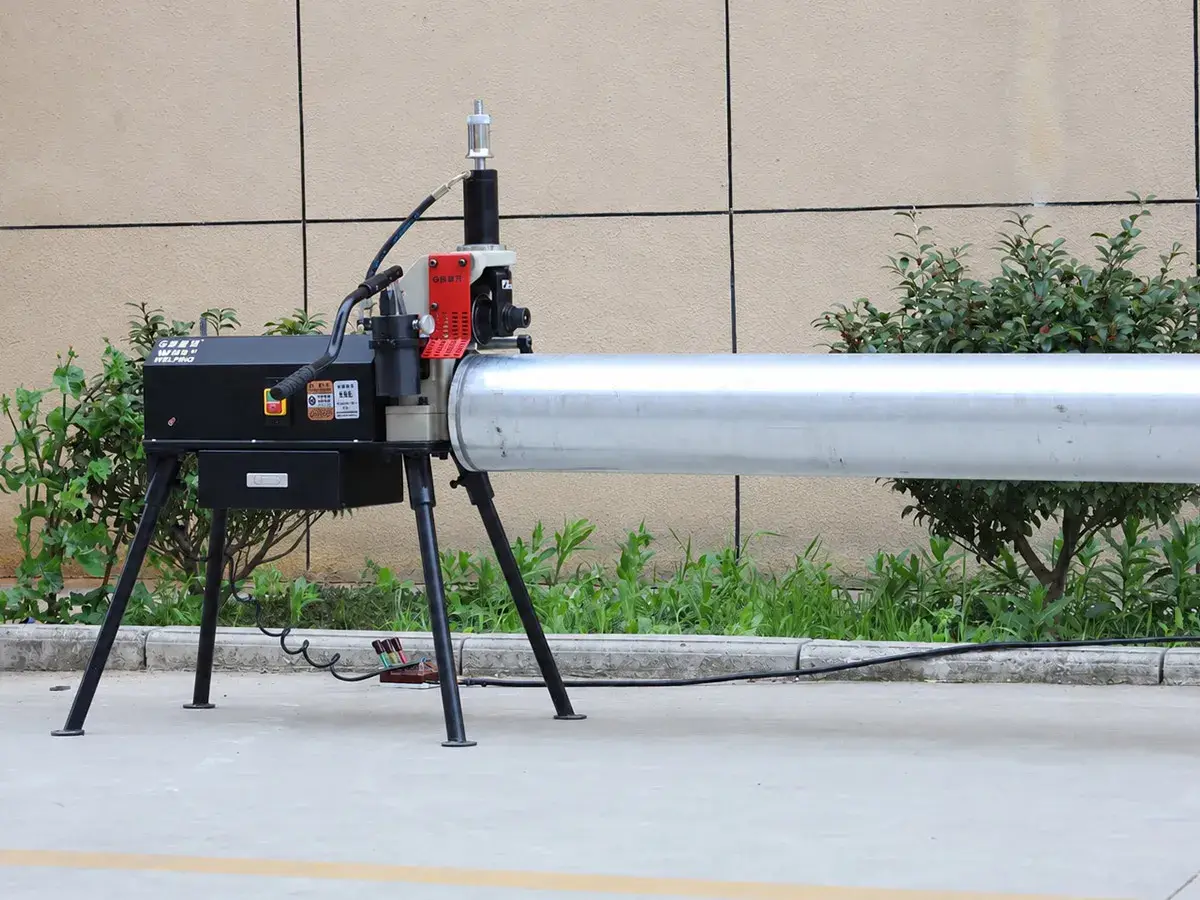

RG-2S 1"–12" Hydraulic Roll Groover

A versatile hydraulic roll groover for 1"–12" pipes, RG-2S integrates the motor, hydraulic pump, depth locking knob, and foot switch into one unit. It is suitable for grooving carbon steel and stainless-steel pipes in both workshops and on-site applications.

  • Capacity 1"–12" Schedule 10/40
  • Max. Wall Thickness 10 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers
Specifications
Model RG-2S
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity 1"–12" Schedule 10/40
Power Requirements 220 V/110 V, 50/60 Hz, Single Phase
Max. Wall Thickness 10 mm
Spindle Speed 23 RPM
Motor Power 1100 W
Packaging Dimensions (L×W×H) 82 × 47 × 96 cm
Gross Weight 154 kg
Drive & Actuation Split fully-sealed hydraulic system (independent pump and cylinder)
Features

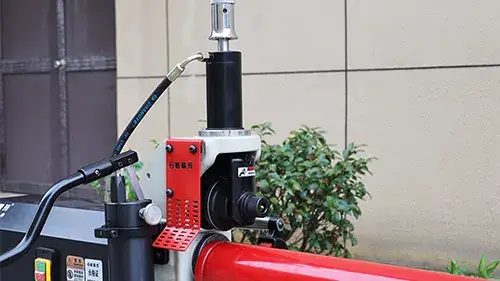

    • Hydraulic Pump
      Hydraulic Pump
      • Separate hydraulic system with an independent pump and cylinder.
      • The fully enclosed hydraulic pump helps keep dust out, reduces hydraulic oil replacement, and extends pump service life.
      • Built-in graduated depth adjustment screw provides clear indication and convenient operation.

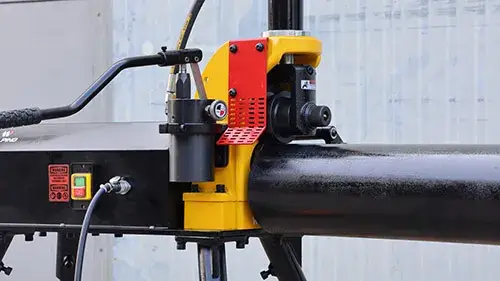

    • Machine Structure
      Machine Structure
      • Thick cast iron construction provides excellent rigidity and resists deformation under heavy workloads.
      • Simple operation and easy maintenance.
      • Custom machine colors are available.

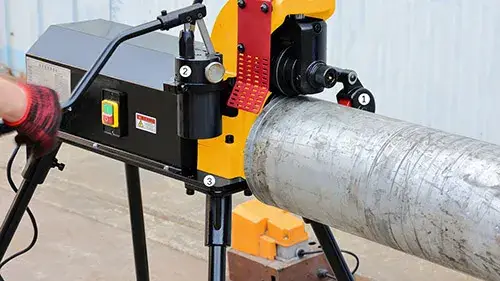

    • Base & Components
      Base & Components
      • Equipped with a pipe stabilizer, pipe stand, and fully enclosed hydraulic feed pump.
      • Integrated steel base offers high strength, a rigid structure, and long service life with excellent resistance to deformation.
    • Roller Assembly
      Roller Assembly
      • Roller assemblies cover the full 1"–12" processing range, including 1"–1½", 2"–3", 3½"–6", and 8"–12".
      • High-strength steel rollers are hardened for excellent wear resistance and long service life.
    • Pipe Stand
      Pipe Stand
      • Quick adjustment lever accommodates different pipe diameters.
      • Precision-machined guide slots and locking mechanism provide stable and reliable adjustment.
      • Ball transfer head supports smooth pipe rotation and forward/backward movement.
      • Adjustable stand height suits different working requirements.
    • Foot Switch
      Foot Switch
      • Protective guard helps prevent accidental operation.
      • Foot-operated control starts and stops the machine efficiently, leaving both hands free for pipe handling and improving operating efficiency.
More
Standard Roll Sets Specifications
Description Net Weight
Standard Roll Sets Specifications Drive Roll 1"–1 ½" (O.D. 33–48 mm) 1.13 kg
Drive Roll 2"–3" (O.D. 60–89 mm) 1.30 kg
Drive Roll 3 ½"–6" (O.D. 102–168 mm) 1.30 kg
Drive Roll 8"–12" (O.D. 219–324 mm) 1.40 kg
Groove Roll 1"–1 ½" (O.D. 33–48 mm) 0.45 kg
Groove Roll 2"–3" (O.D. 60–89 mm) 0.45 kg
Groove Roll 3 ½"–6" (O.D. 102–168 mm) 0.45 kg
Groove Roll 8"–12" (O.D. 219–324 mm) 0.45 kg
Optional Anti-Flare Groove Roll Specifications
Description Net Weight
Anti-Flare Groove Roll 2"–3" for SCH10 0.45 kg
Anti-Flare Groove Roll 3 ½"–6" for SCH10 0.45 kg
Anti-Flare Groove Roll 8"–12" for SCH10 0.45 kg
